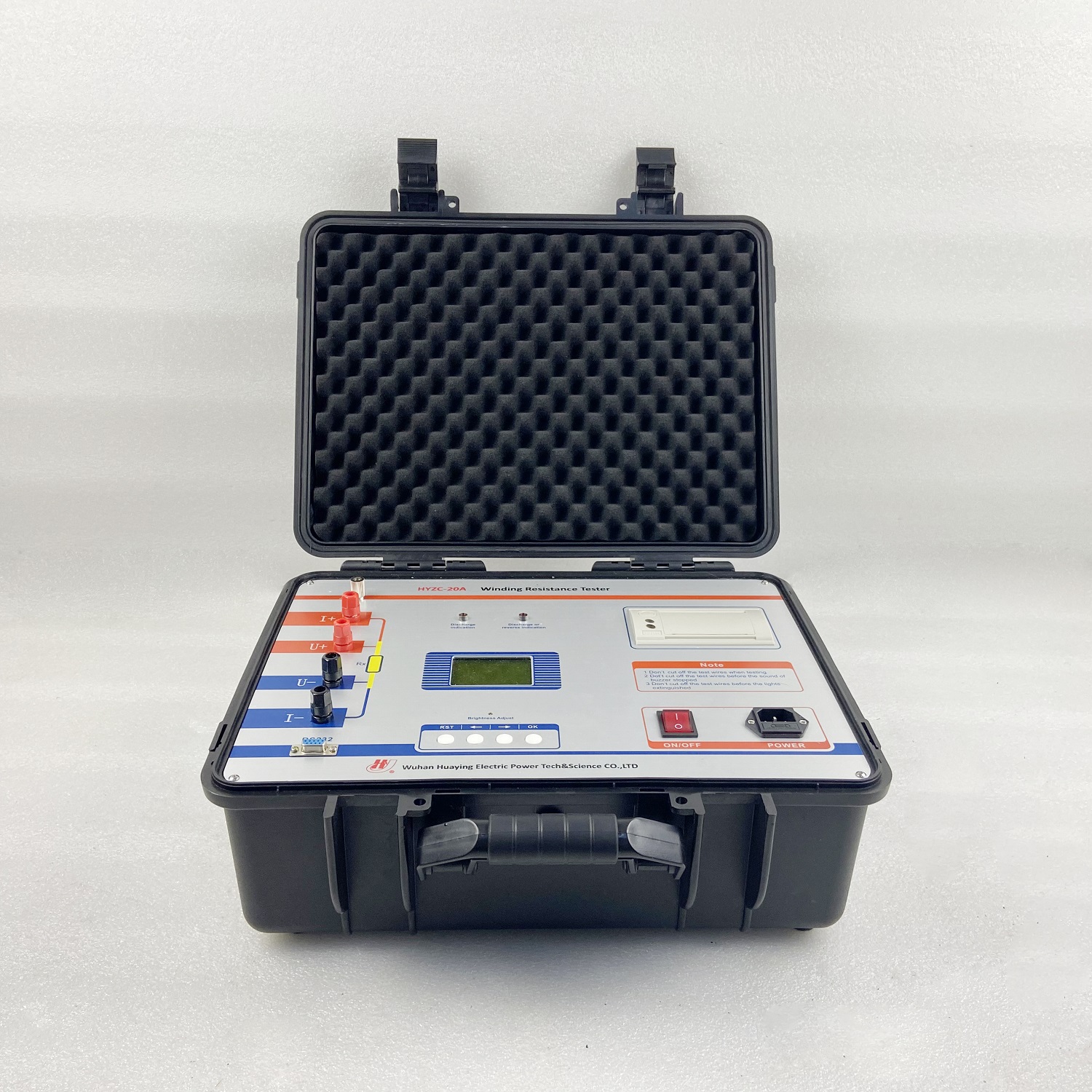

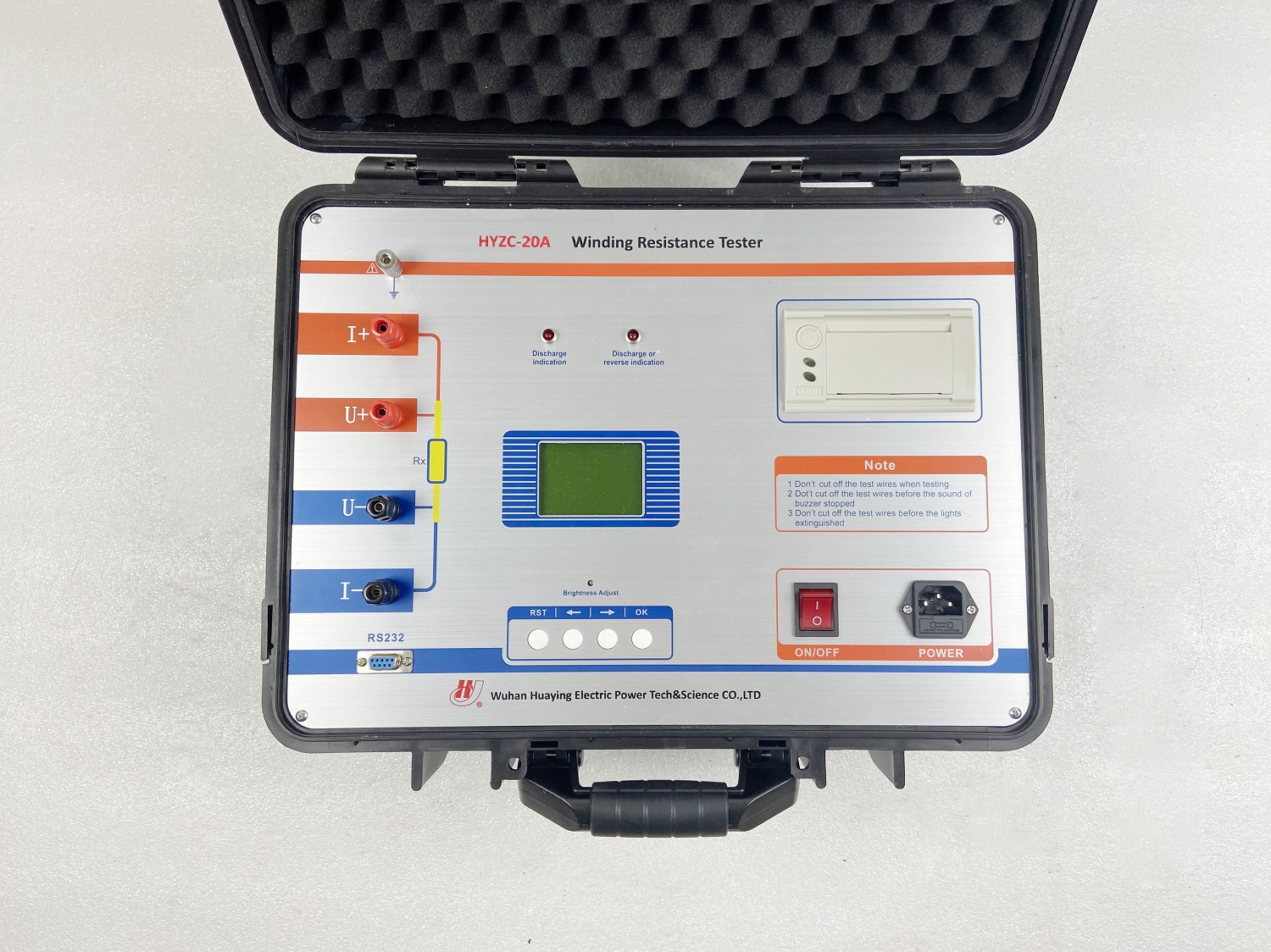

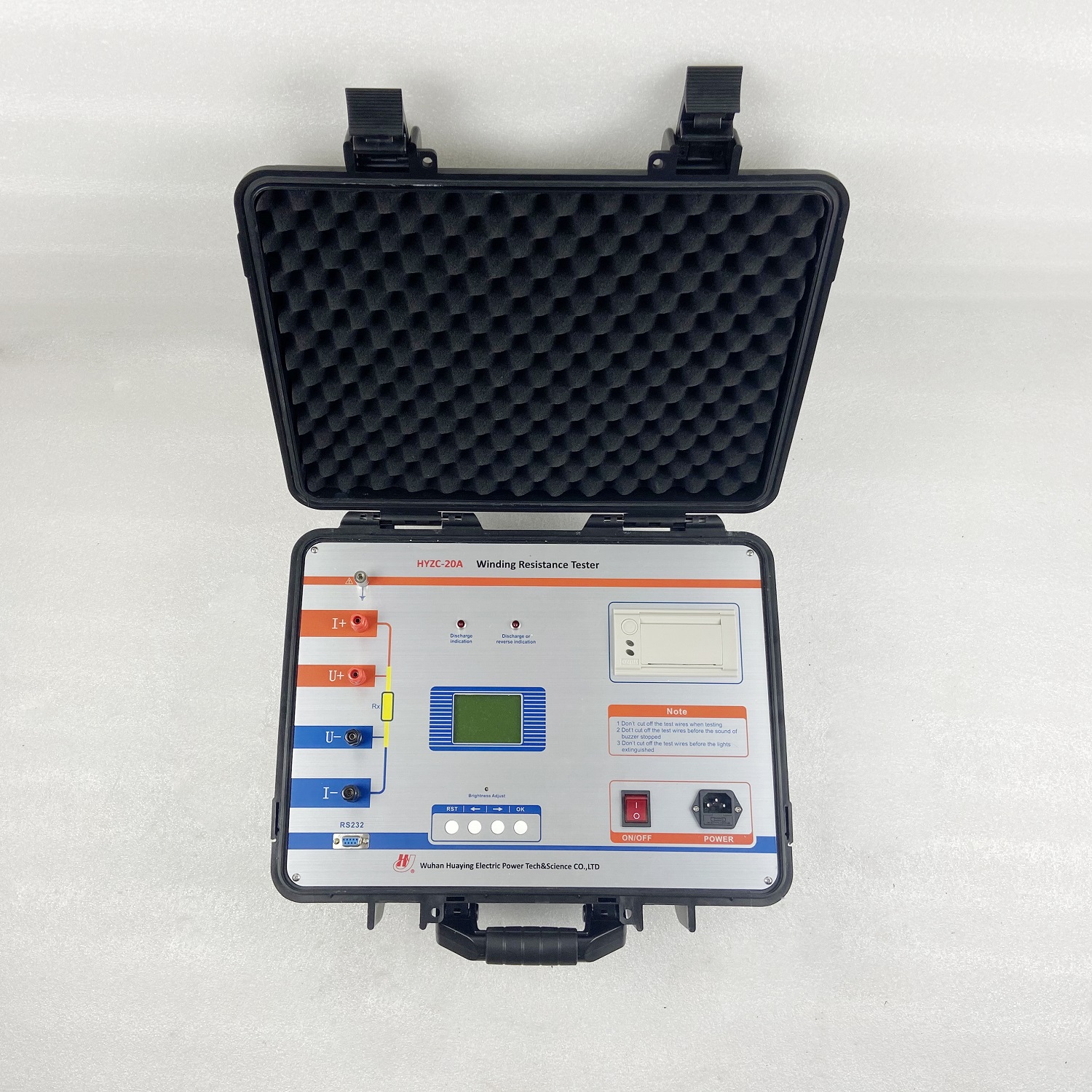

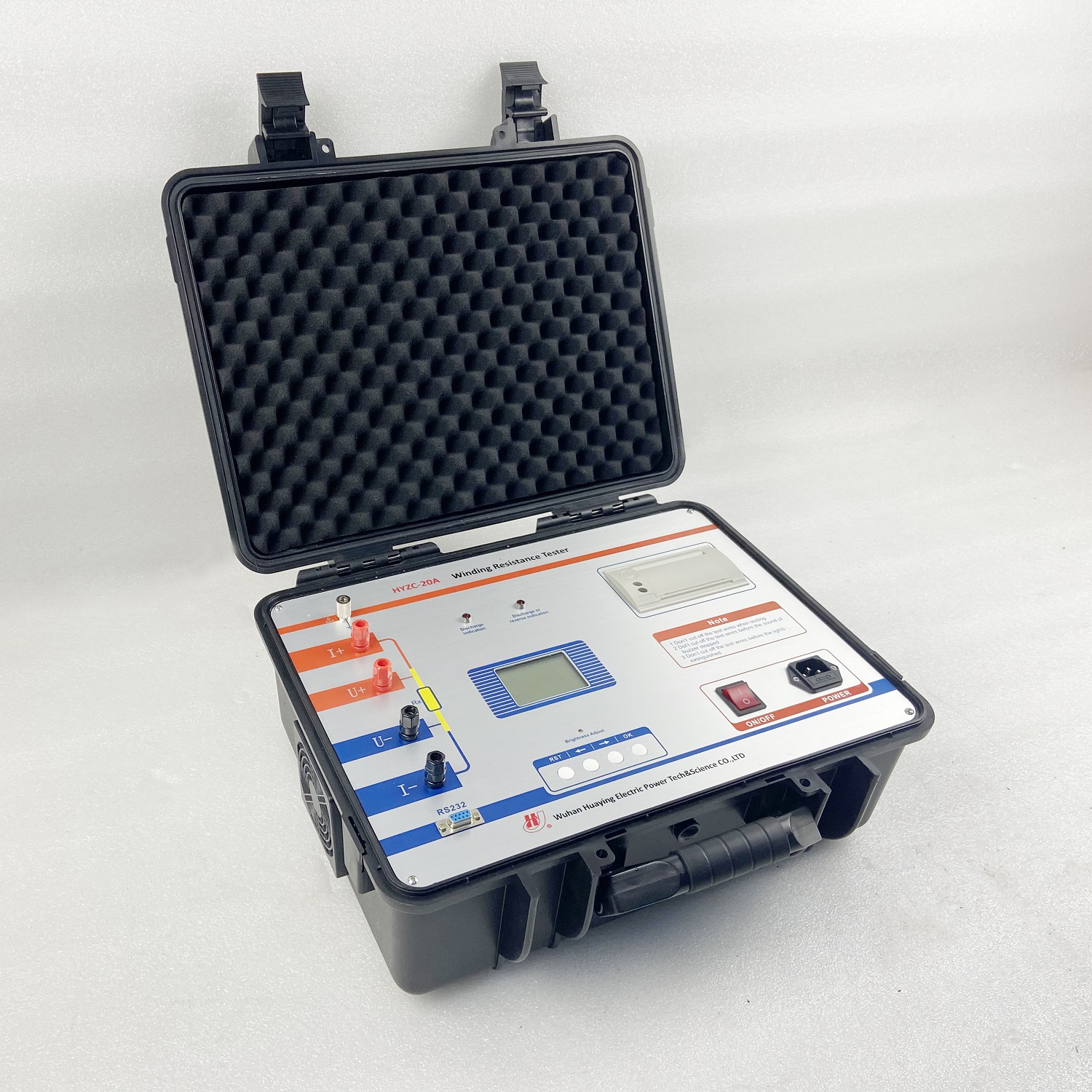

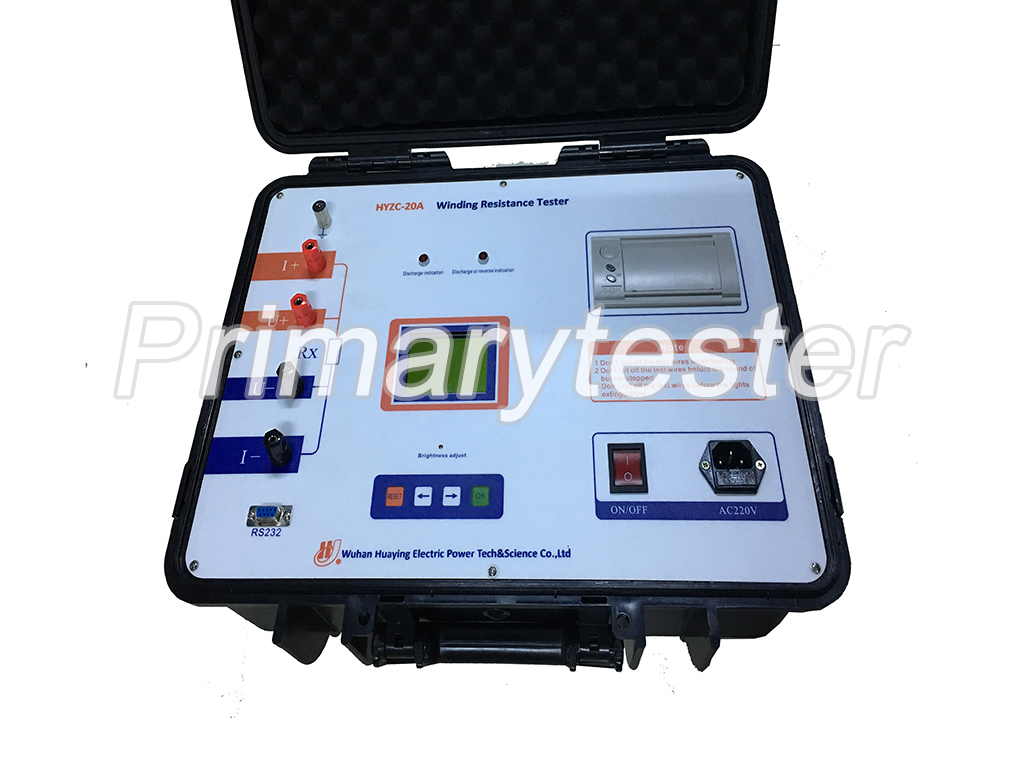

Winding Resistance Tester HYZC-20A
HYZC-20A winding resistance tester has six current positions of 20mA, 200mA, 2A, 5A, 10A, 20A. It is a ideal tester for testing various resistances especially the sensibility equipment.
Datasheet
Video
Contact Us1. The tester has a large output power, and the power of the tester itself is very little.
2. Using a four-wire method, the tester is quick, stable, high precision for testing the winding resistance.
3. It has a strong ability for anti-jamming, over current, over voltage and discharge.
4. The security is also very high.
1. Resistance precision：±（0.2％RGD+2d）
2. Test range：
1.000Ω-1000Ω(20mA)
100.0mΩ-100.0Ω (200mA)
10.00mΩ-10.00Ω (2A)
4.000mΩ-4.000Ω (5A)
2.000mΩ-2.000Ω (10A)
1.000mΩ-1.000Ω (20A)
3. The least scale：1uΩ
4. Output current precision:±5%
5. Support for data uploading to PC
6. Two hundred groups of data can be stored
7. With thermal printer to print the test data
8. Weight:10KG
9. Power supply：AC220V±10%，(50±1)HZ
10. Operation condition：-10～50℃ Humidity <90％ no condensation

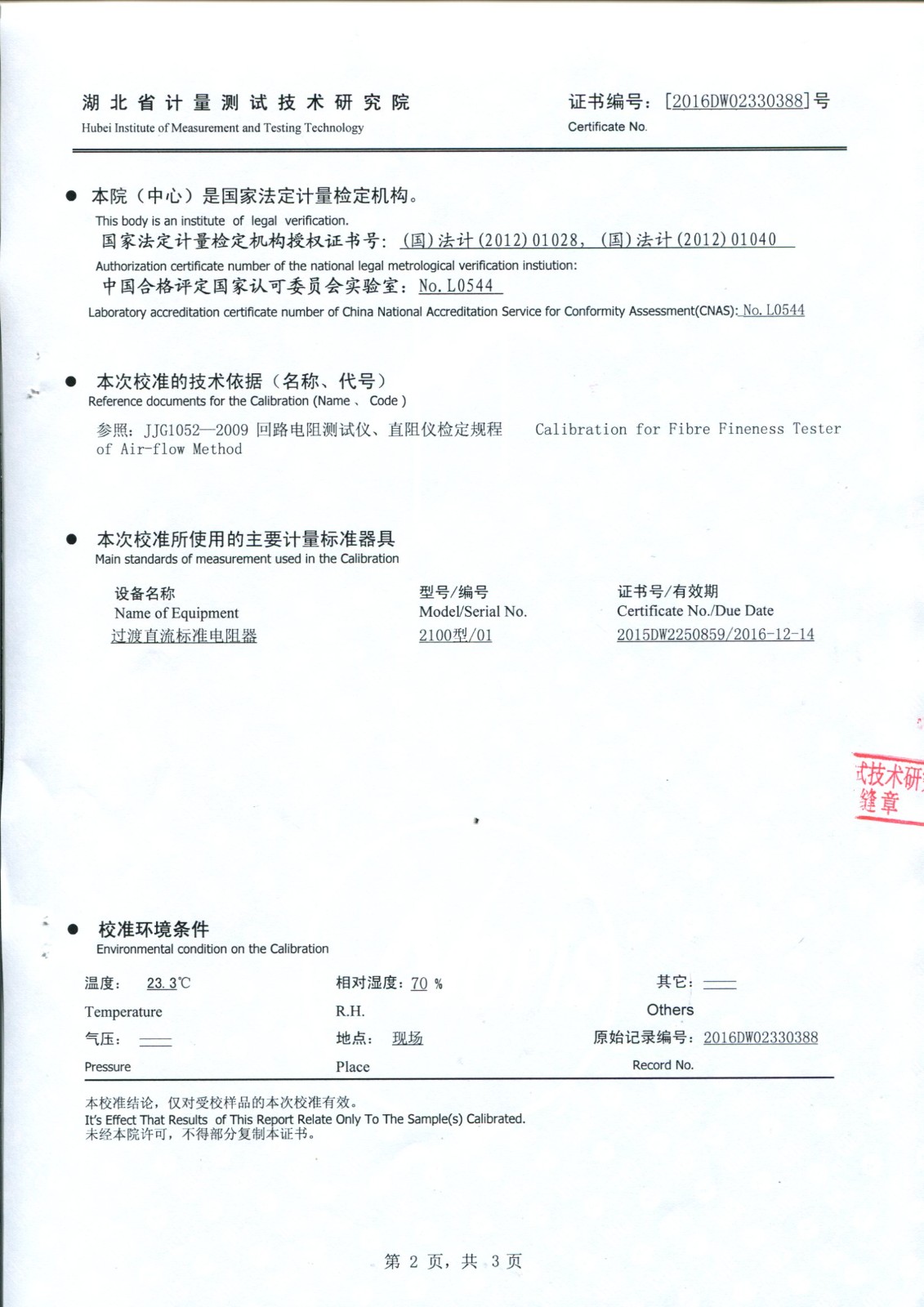

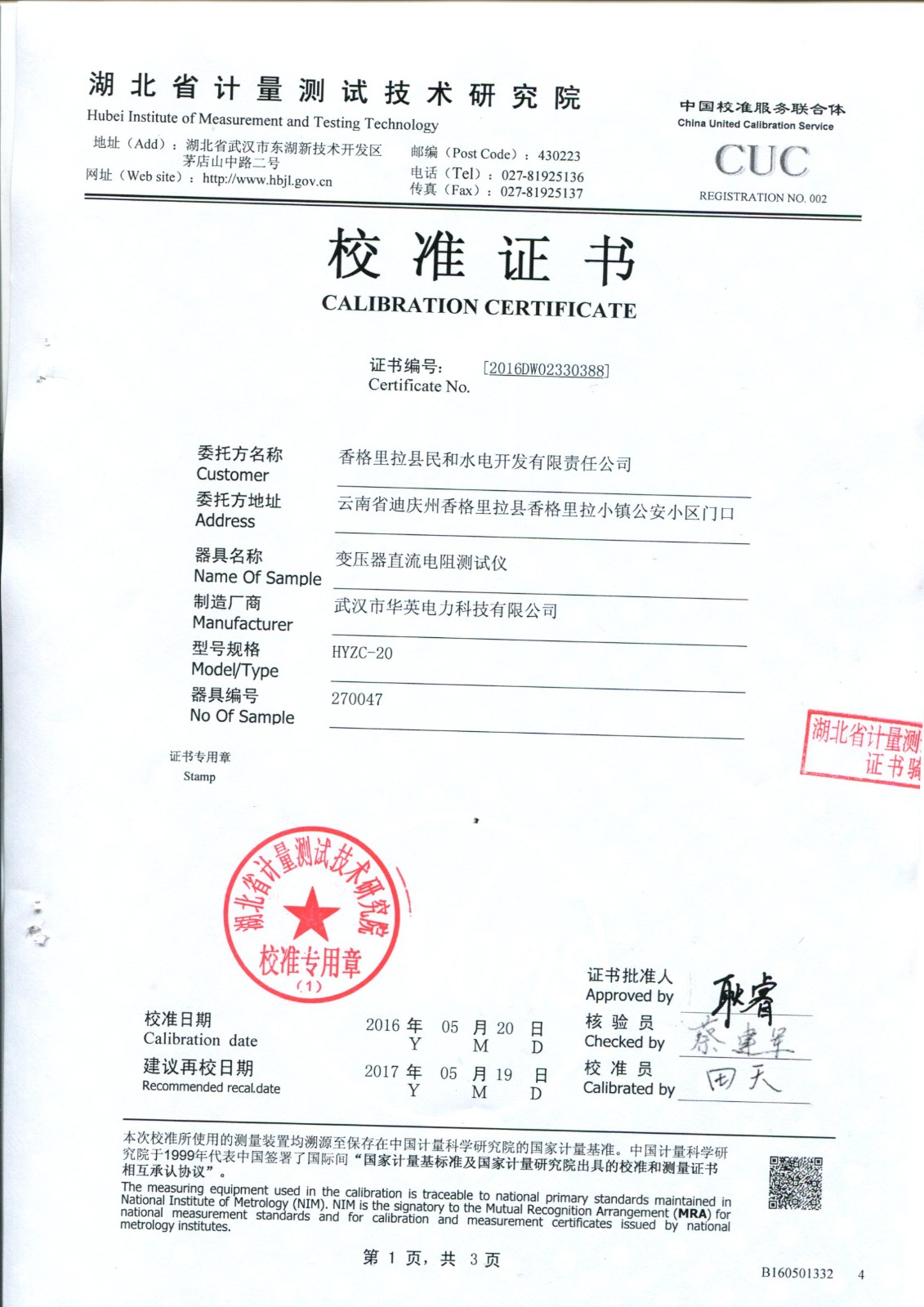

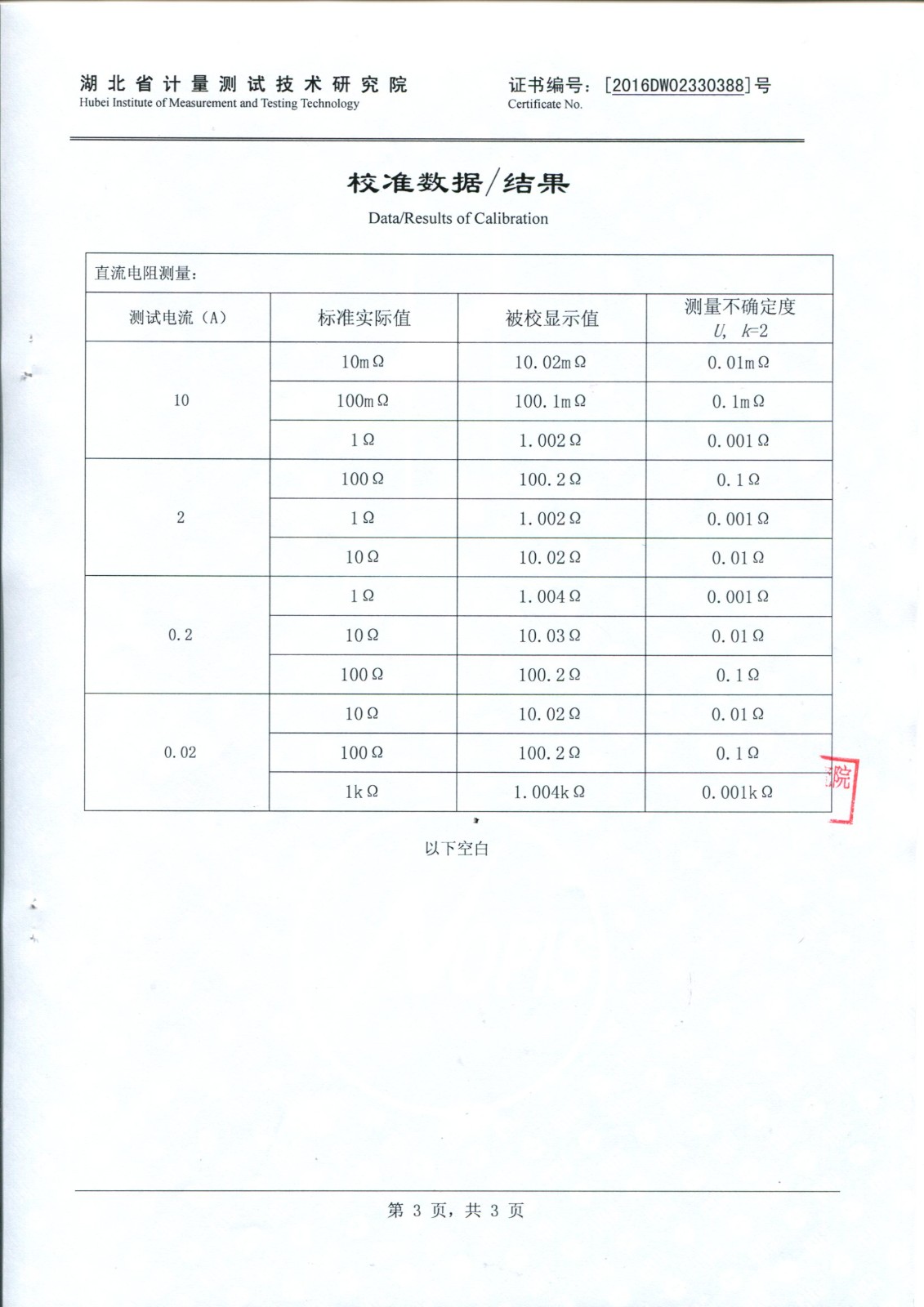

Calibration certificate of Winding Resistance Tester HYZC-20A issued by Hubei Institute of Measurement and Testing Technology
-
