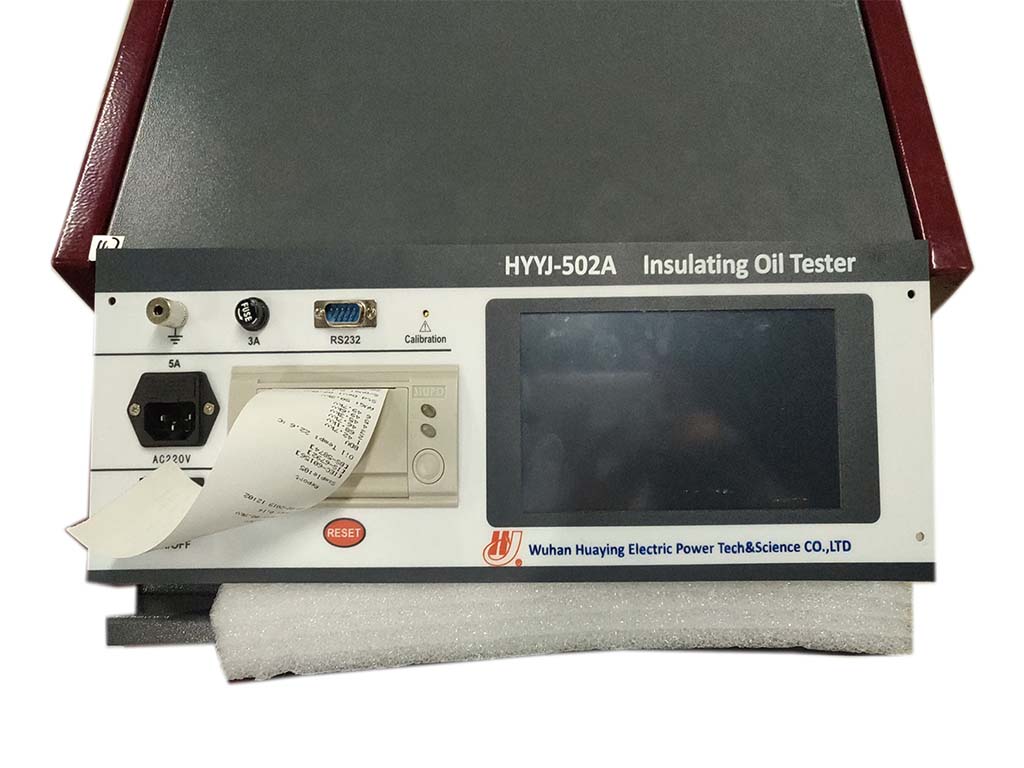

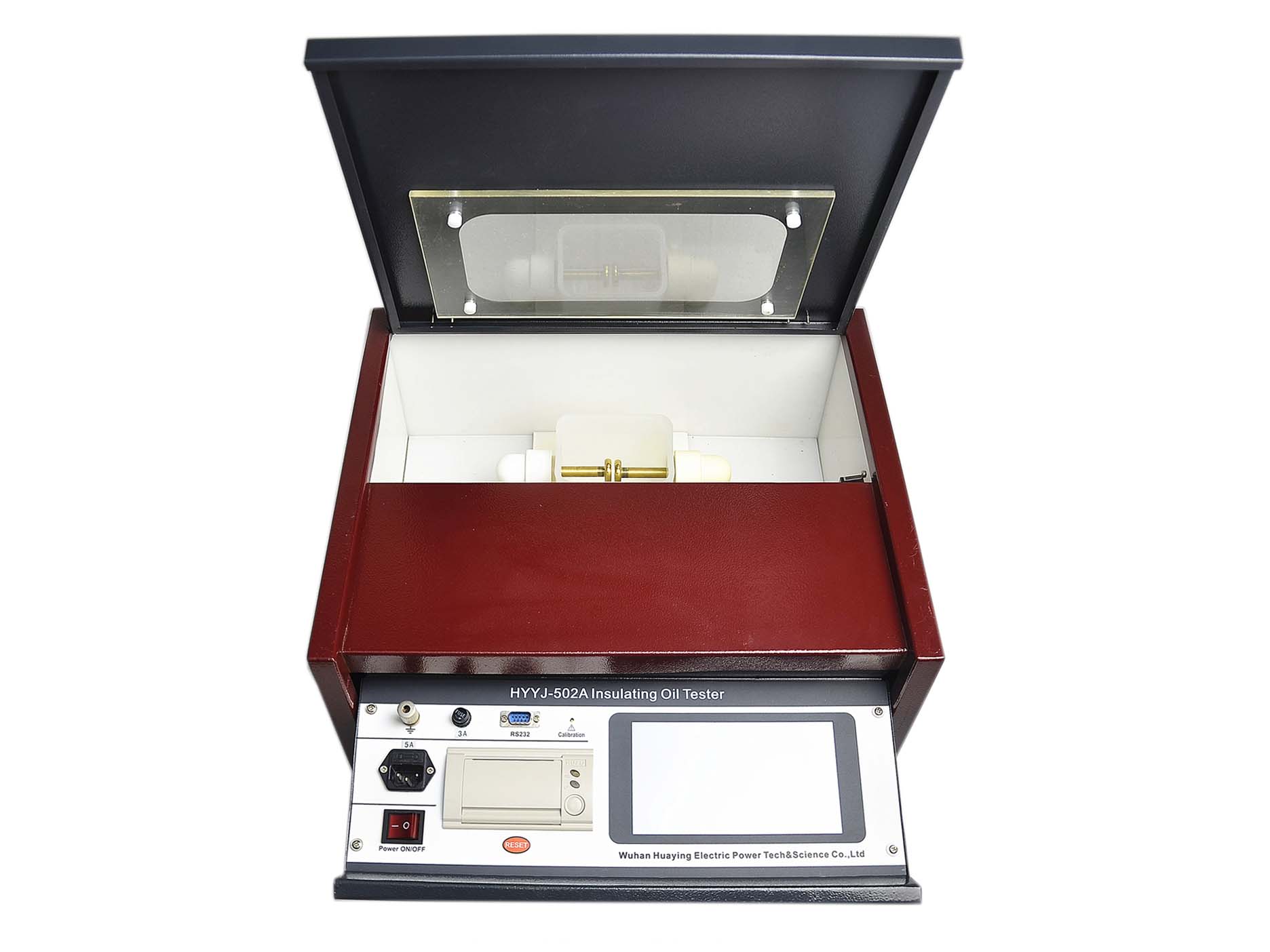

Insulating Oil Tester HYYJ-502A
HYYJ-502A insulating oil tester is developed according to DL/T846.7-2004 "Insulating oil dielectric tester" standard and the IEC/ASTM international standard. Built-in EEPROM memory can save 100 sets of test data, and test results can be printed at any time. It has the advantages of simple operation, powerful function, stable and reliable, and high degree of automation.
Datasheet
Video
Contact Us1. All the human interaction operation is controlled through a 7-inch touch screen.
2. The test process fully meets the requirements of IEC156/IS6792/BS5874, ASTMD1816, ASTMD877 and ASTMD1816.
3. Test standards can be selected to set up with high test accuracy.
4. PC application software is provided to upload test data to make WORD test report.
Power supply input | AC220V±10% |
Output voltage | AC 0V~100KV |
Rate of voltage rise | 0.5kv/s±10%, 2kv/s±5%, 3kv/s±5%,5kv/s±5% |
Max test times | 9 |
Init wait time | 0~999s |
Stir time | 0~999s |
Wait time | 0~999s |
Measurement accuracy | ±(1% of full scale + 2 digits) resolution:0.1KV |
Temperature measurement | |
Measurement range | 0℃ to 70℃, or better |
Temperature resolution | 1℃, or better |
Operating temperature | up to 45℃ |
Storage | 100 groups |
7 inch colorful LCD with touch pad | |
Oil test vessel temperature measurement unit | |
Weight | 38kg |
Size | 460 mm*380mm*360mm |

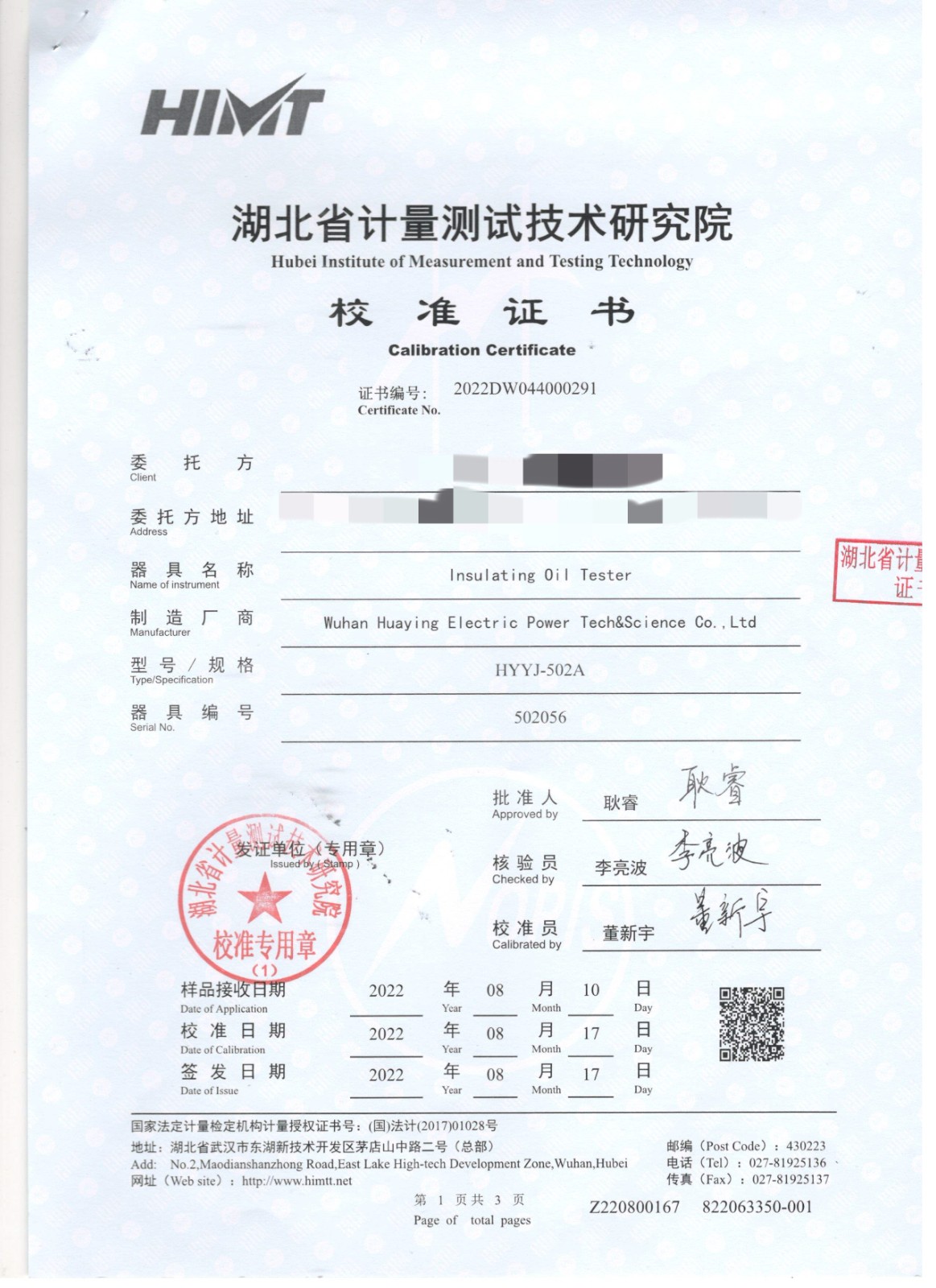

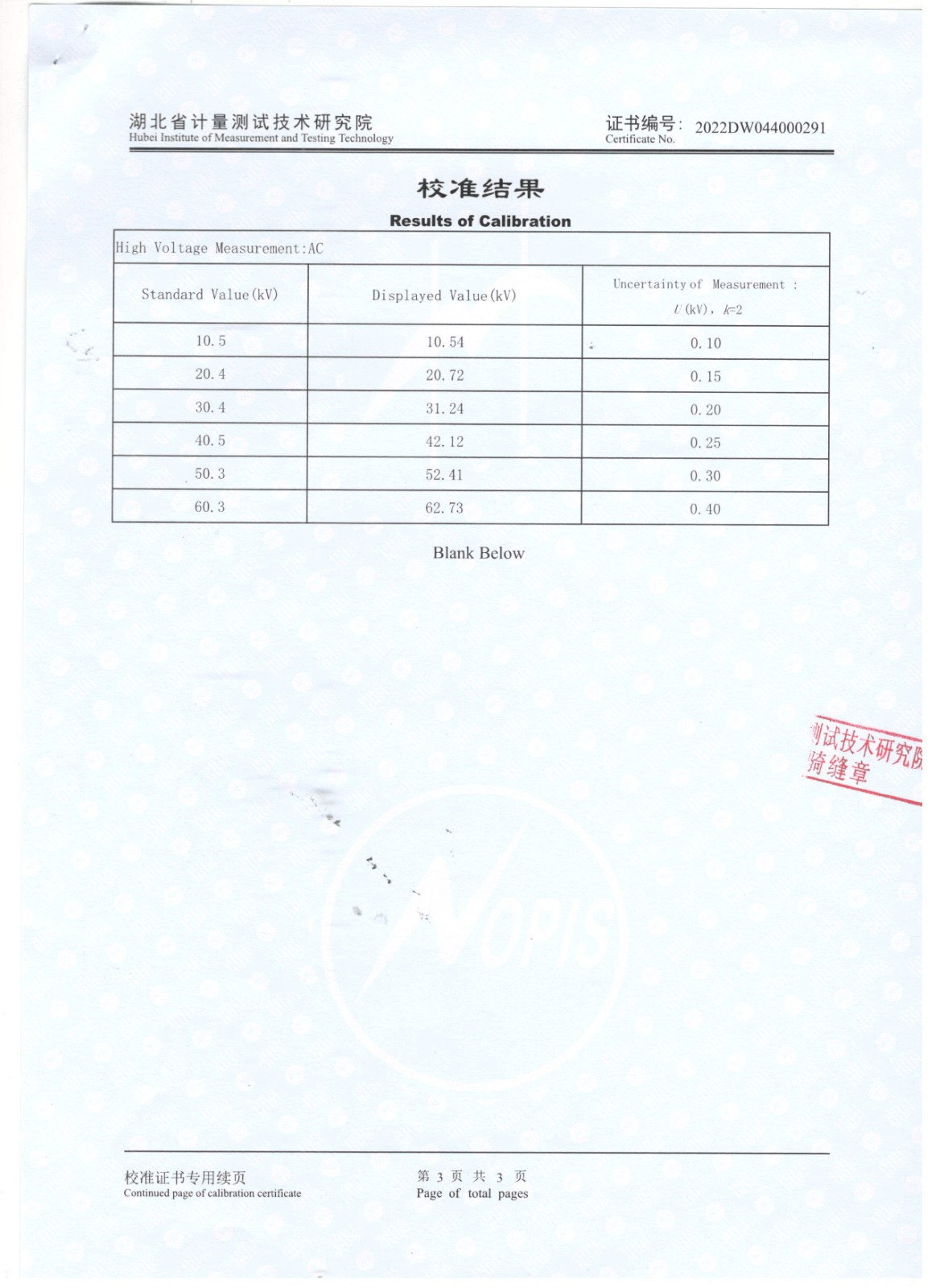

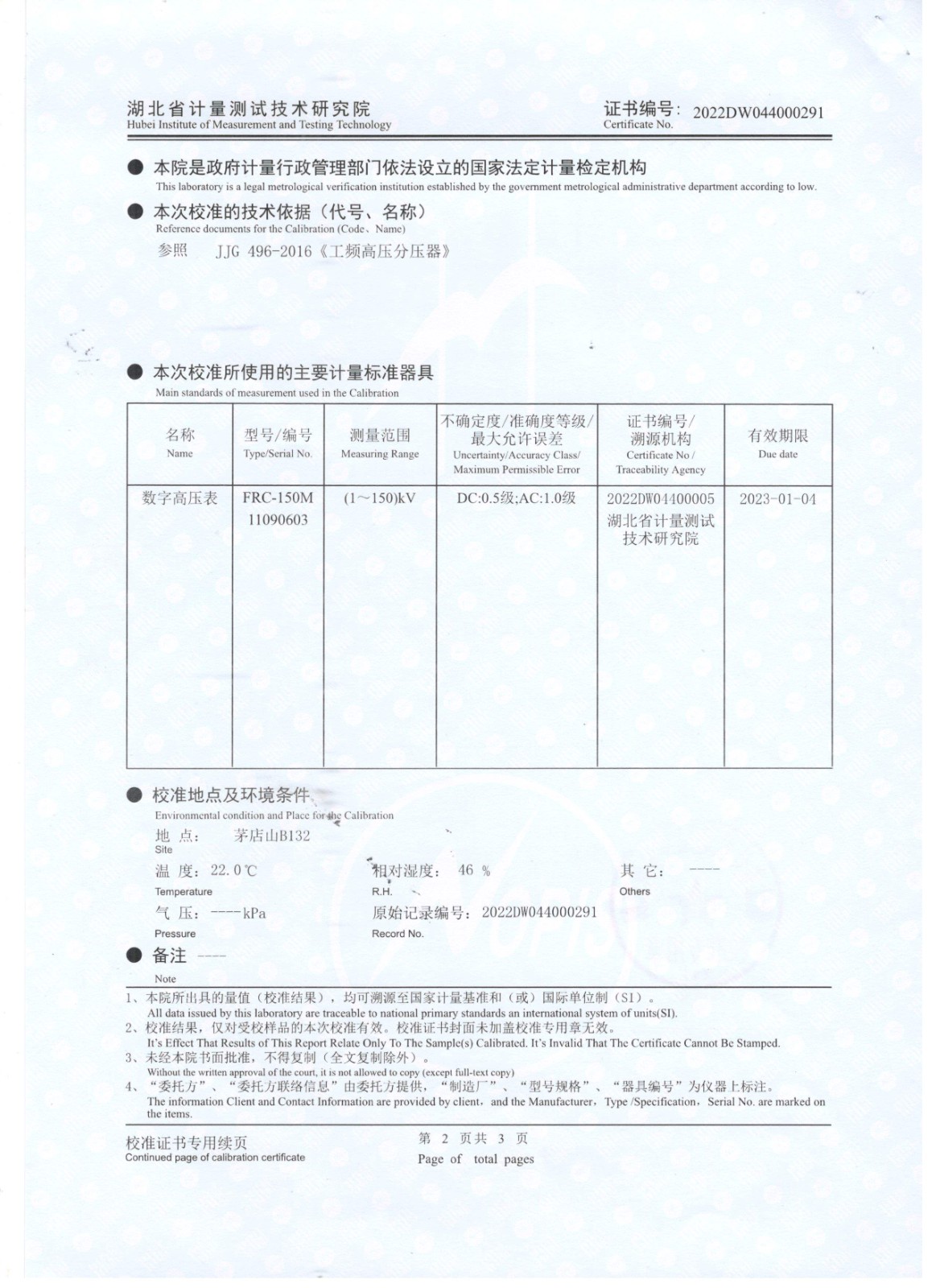

Calibration certificate of Insulating Oil Tester HYYJ-502A issued by Hubei Institute of Measurement and Testing Technology
-
