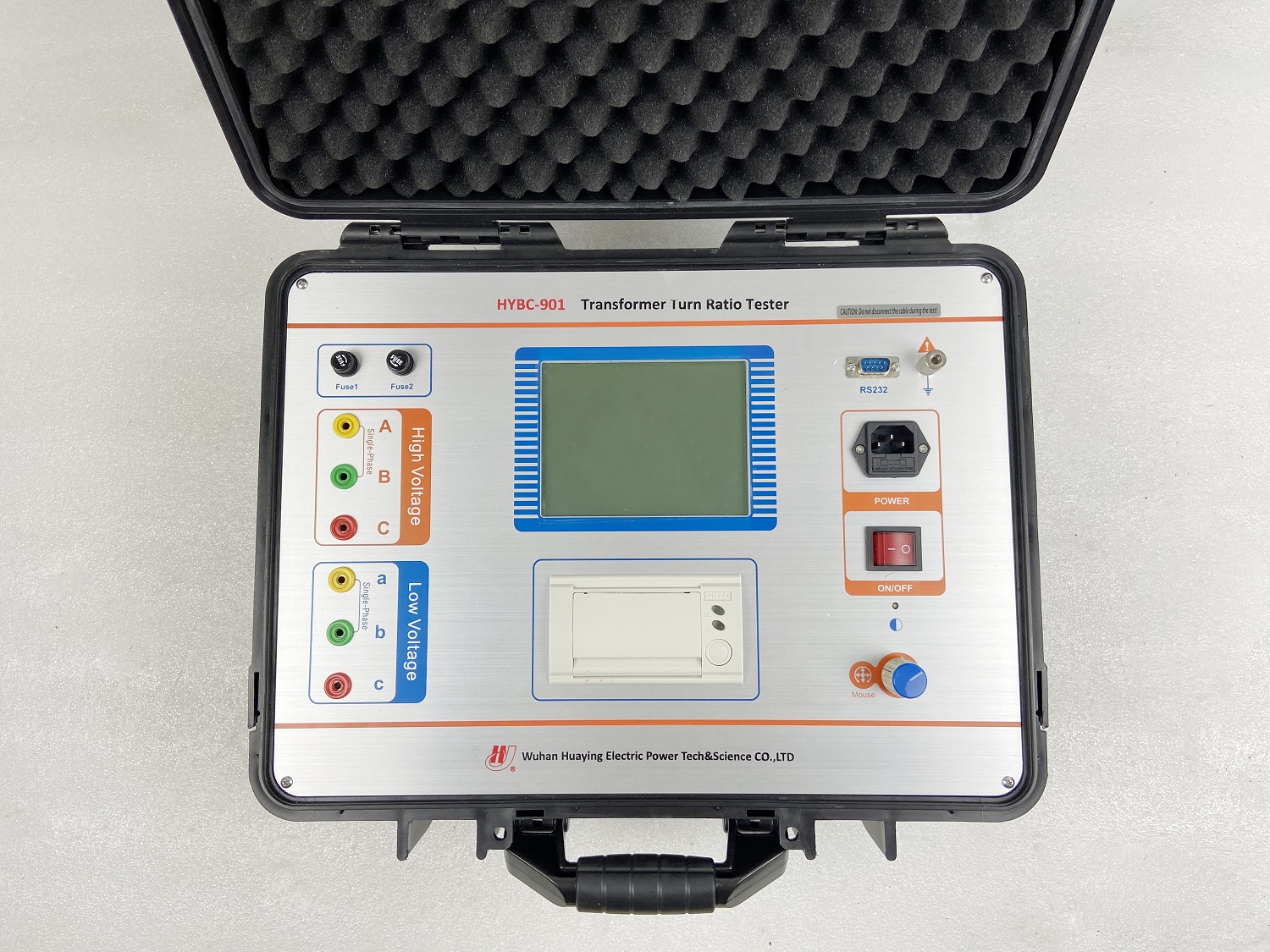

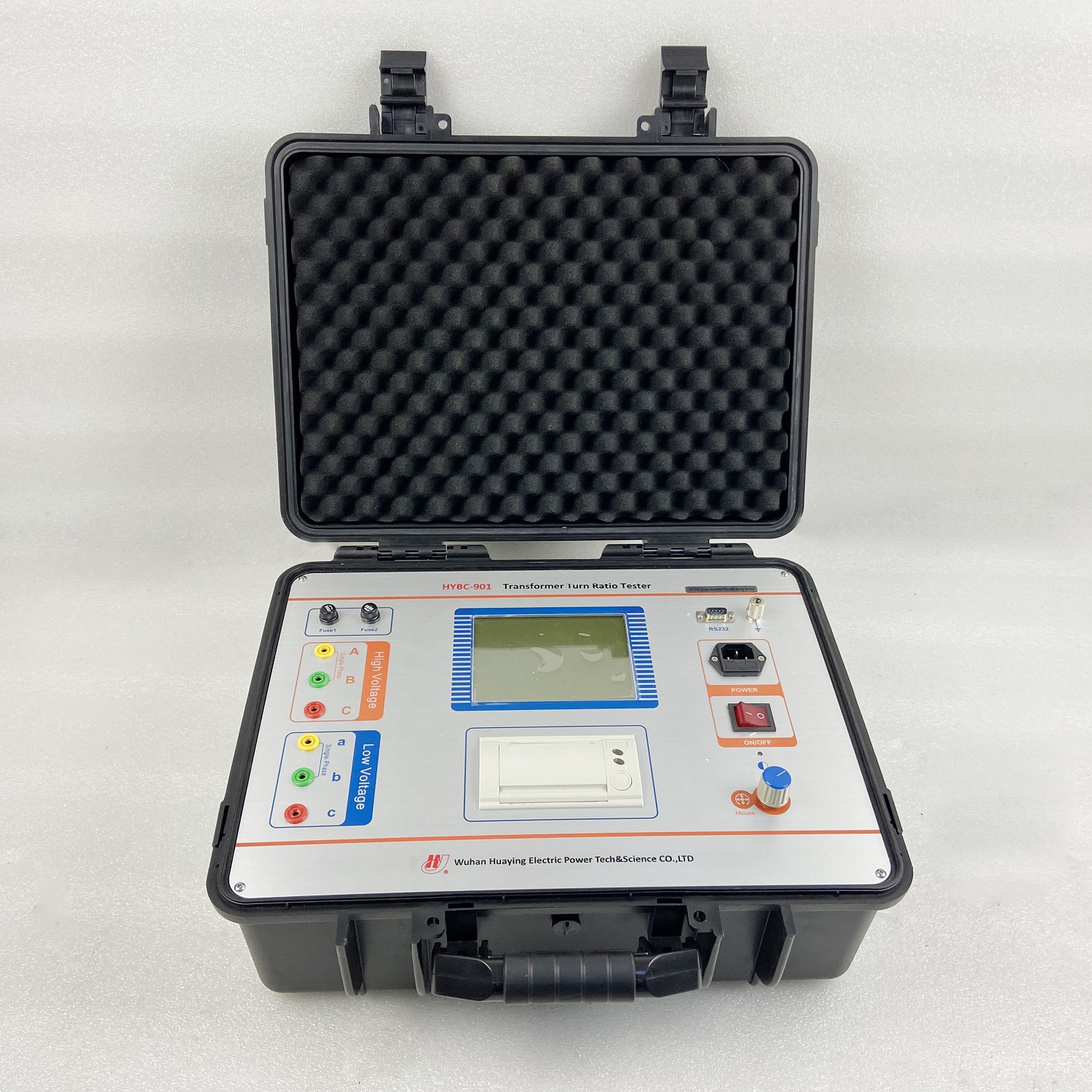

Transformer Turn Ratio Meter HYBC-901

HYBC-901 is applied to measure the voltage ratio of three or single phase transformer. All the data and test results are showed on a 320*240 LCD. All the test results could be printed by the micro printer or saved on the storage of the tester. The tester has a good performance on auto protection and anti-disturb.

Technical Specification

1. Ratio measurement range:1—10000

2. Group measurement:1—12

3. Phase measurement error:1 degree

4. Ratio measurement error:1—1000 ± 0.2%   1000—10000  ± 0.5%

5. Power supply: AC220V ± 10%, 50Hz

6. Size : 400*350*200  mm3     Weight : 7kg
