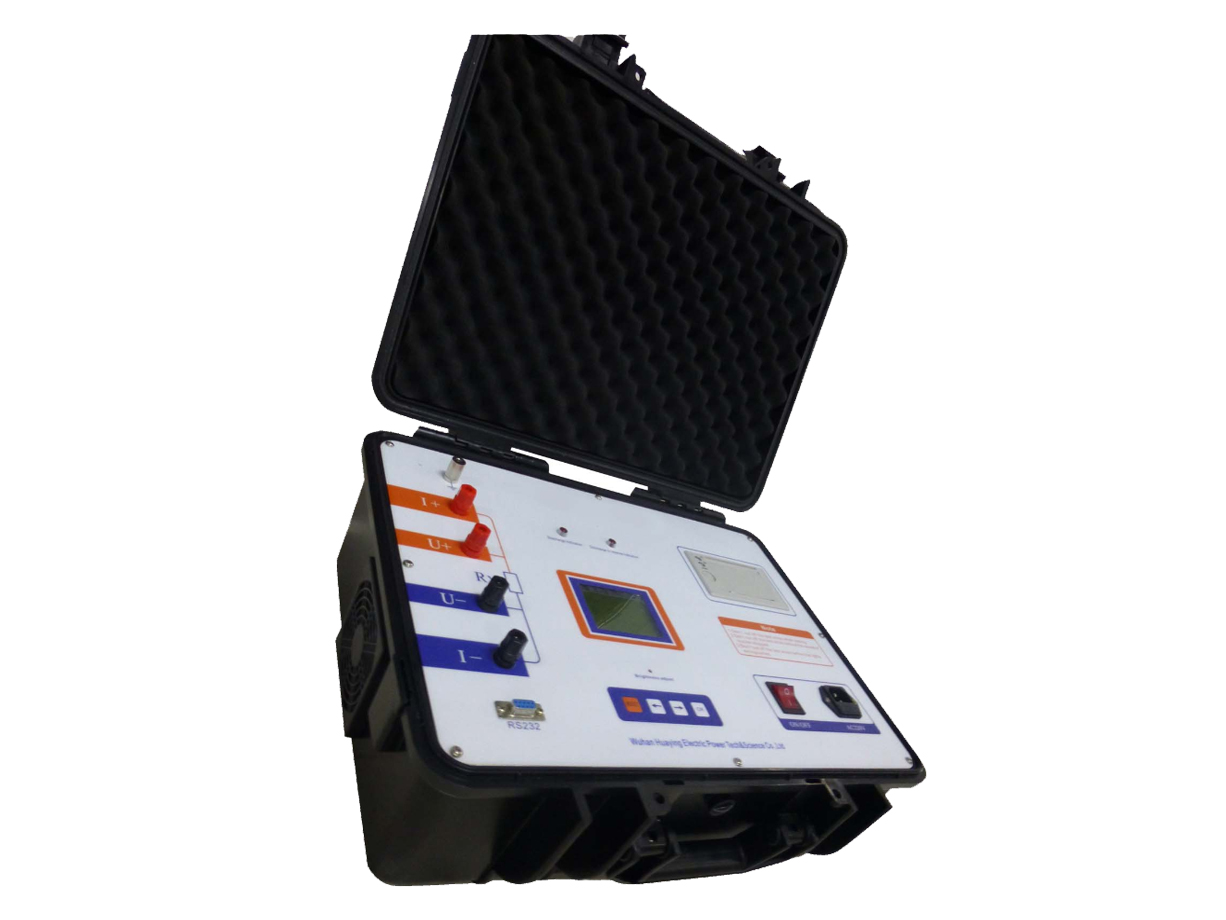

Frequency Response Analyzer HYRZ-902
Transformer frequency responce analyzer is a high-precision instrument specially developed by our company for power transformer (three-phase or single-phase) factory, fault and and measurement of winding deformation, no-load and load loss parameters in the handover test. The instrument is small in size, light in weight, easy to carry, and extremely convenient to use on site, greatly reducing the labor intensity of testers and improving work efficiency.
Datasheet
Video
Contact Us1. Color touch screen display, English menu prompts, simple operation.
2. Equipped with high-speed thermal printer, designed with storage function, convenient for data storage and printing.
3. Winding deformation test based on different standards of sweeping frequency method.
4. It can measure the phase frequency curve and amplitude frequency curve of each winding of the transformer.
5. It can cyclically test of phase and amplitude of transformer windings at fixed frequency.
6. Analyze the transformer amplitude-frequency curve based on DLT911-2016.
7. Built-in non-dropout memory, winding deformation can be saved for 40 groups.
1. Sweeping frequency method to measure winding deformation.
Scan frequency range: 10HZ-1MHZ (DLT911-2016 0.5KHZ interval linear scan)
20HZ-2MHZ (GB/T-1094.18 IEC60076-18:2012 segmented scanning)
10HZ-10MHZ (GB/T-1094.18 IEC60076-18:2012 segmented scanning)
1KHZ -1000KHZ_1.0(Linear scan 1KHZ interval PC side available)
1KHZ -1000KHZ_0.5(linear scan 0.5KHZ interval avaiable for Pc)
1KHZ -2000KHZ_1.0(linear scan 1KHZ interval available for PC)
1KHZ -2000KHZ_0.5(linear scan 0.5KHZ interval available for PC)
100HZ-1000K(Segmented scan PC available 1441 points):
100HZ-1KHZ 5HZ interval 180 points
1KHZ-10KHZ 50HZ interval 180 points
10KHZ-100KHZ 500HZ interval 180 points
100KHZ-1000KHZ 1KHZ interval 901 points
100HZ-2000K(Segmented scan PC available 2441 points)
100HZ-1KHZ 5HZ interval 180 points
1KHZ-10KHZ 50HZ interval 180 points
10KHZ-100KHZ 500HZ interval 180 points
100KHZ-1000KHZ 1KHZ interval 900 points
1000KHZ-2000KHZ 1KHZ interval 1001
Points
Amplitude measurement range: (-100dB) - (+20dB)
Amplitude measurement accuracy: (-40dB) - (+20dB) 0.2dB
(-60dB) - (-40dB) 0.5dB
(-80dB) - (-60dB) 1.0dB
Angle measurement range: (-180°) - (+180°) (10HZ-2MHZ)
Scan frequency accuracy: less than 0.01%
Signal input impedance: greater than 1M Ω(DLT911-2016)
50 Ω(GB/T-1094.18 IEC60076-18:2012)
Signal output impedance: 50 Ω.
Same-phase test repetition rate: 99.5%.
2. Working conditions
Operating voltage: AC220V±10 %
Frequency: 50Hz±10 %
Power consumption: ≤60w
Use of ambient temperature: 0～40°C
Use of environmental humidity: ≤90%RH
Host volume: 520´290´220 mm3 Weight: 10kg

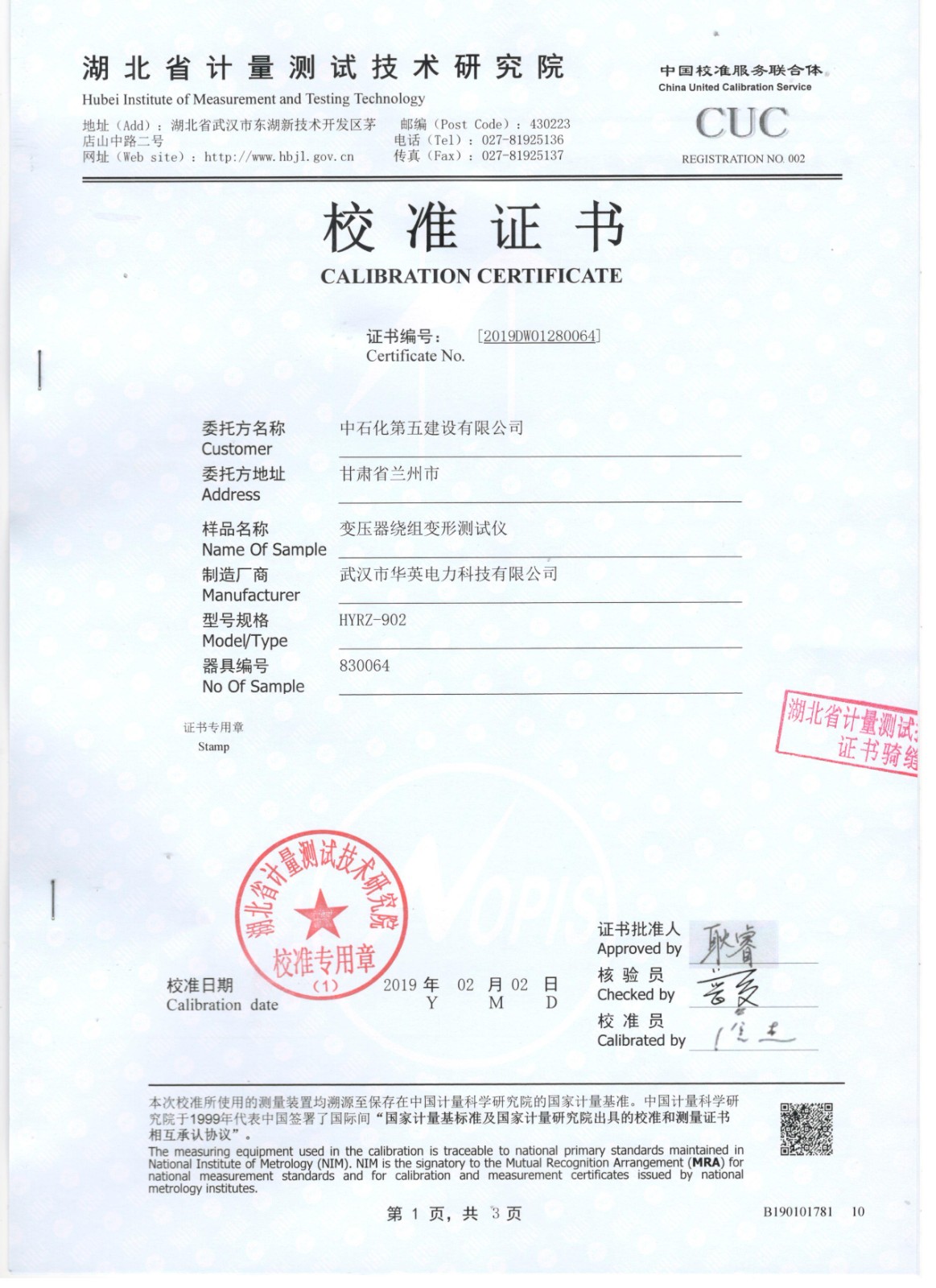

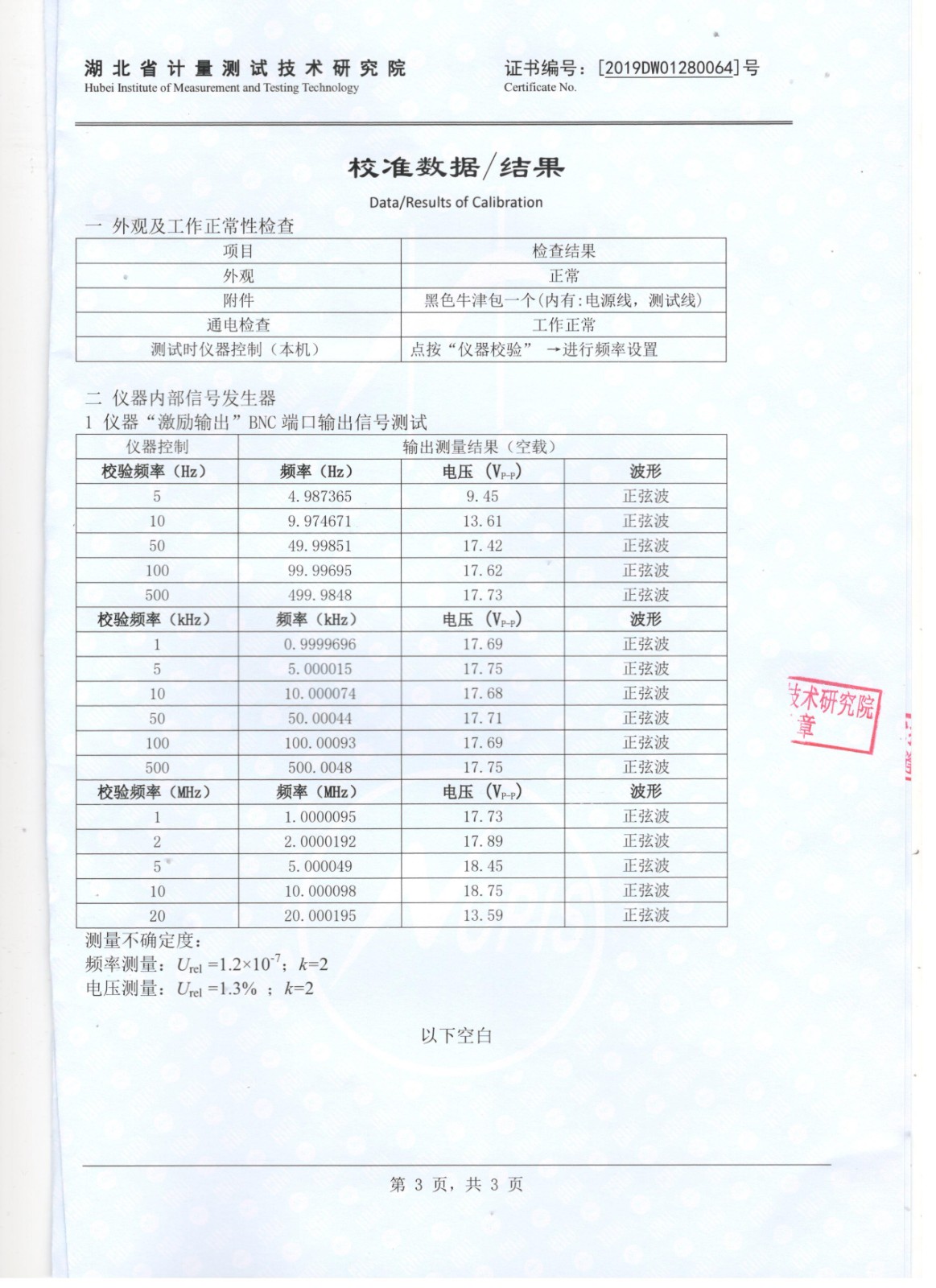

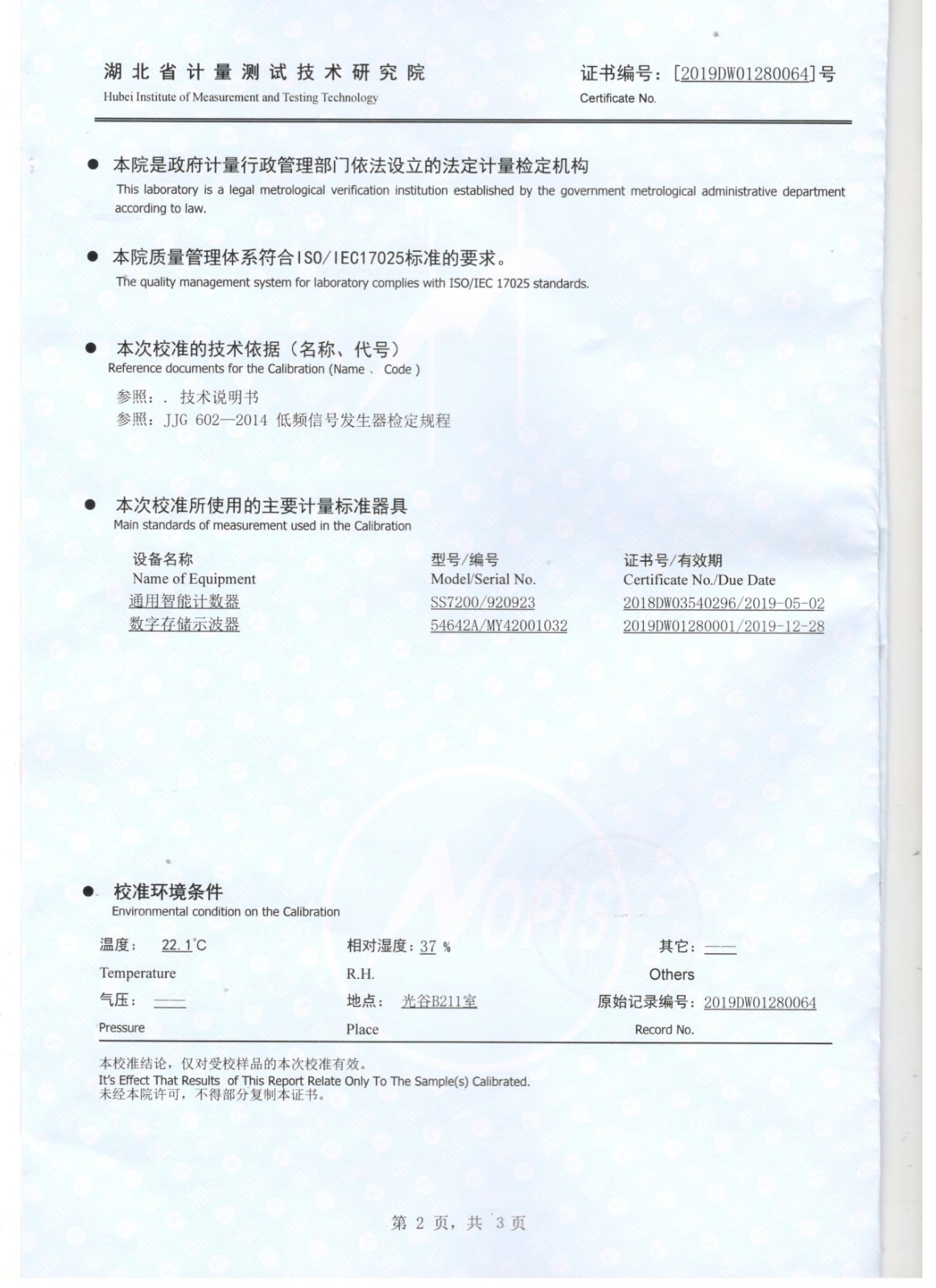

Calibration certificate of Frequency Response Analyzer HYRZ-902 issued by Hubei Institute of Measurement and Testing Technology
-
