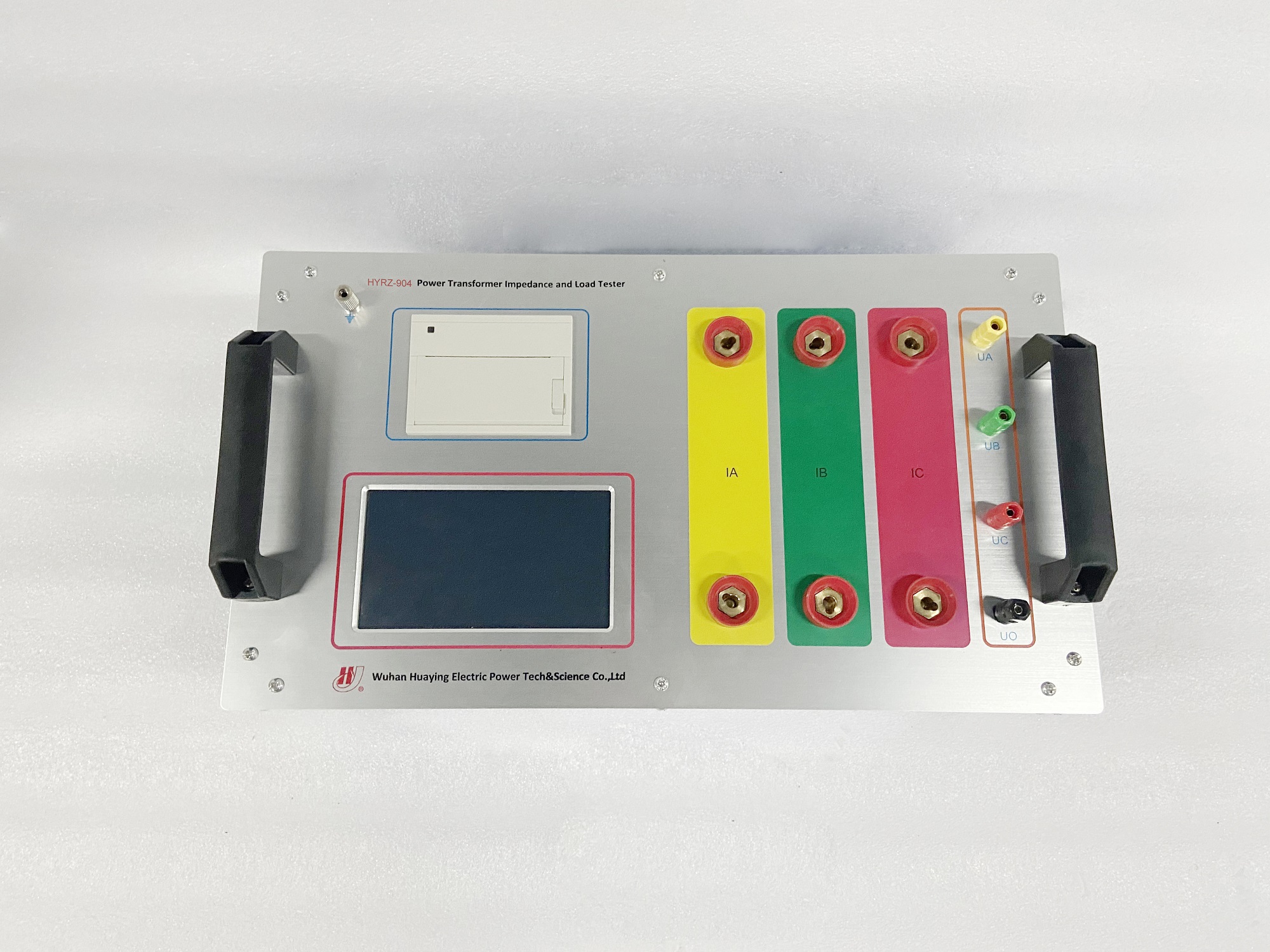

The tester issmall in size, light in weight, easy to carry, very convenient to use in the field, which greatly reduces the labor intensity of the test personnel, and the work efficiency is improved.

Features:

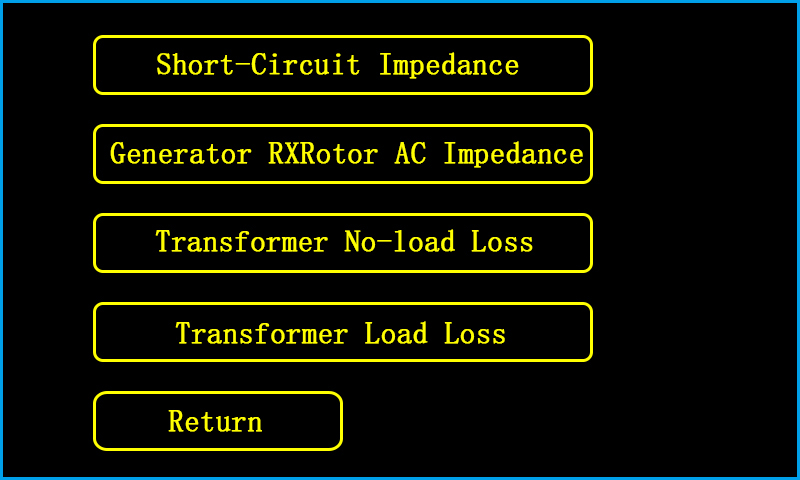

1. Short-circuit impedance method winding deformation test;

2. Measurement parameters of transformer winding short-circuit impedance, short-circuit reactance, short-circuit resistance, three-phase impedance voltage, impedance voltage, voltage RMS value, voltage average value, current, power, power factor, frequency, etc;

3. Analyze the short circuit impedance test results based on DL/T 1093-2008 and IEC60076-5 standards.

4. Transformer no-load and load characteristic test;

5. Measurement of transformer no-load loss, no-load current, load loss, impedance voltage, voltage effective value, voltage average value, current, power, power factor, frequency and other parameters;

6. Automatic correction of short-circuit impedance, no-load and load test results;

7. Analyze the no-load and load test results based on GB1094.1-2013 and JBT 501-2006 standards;
