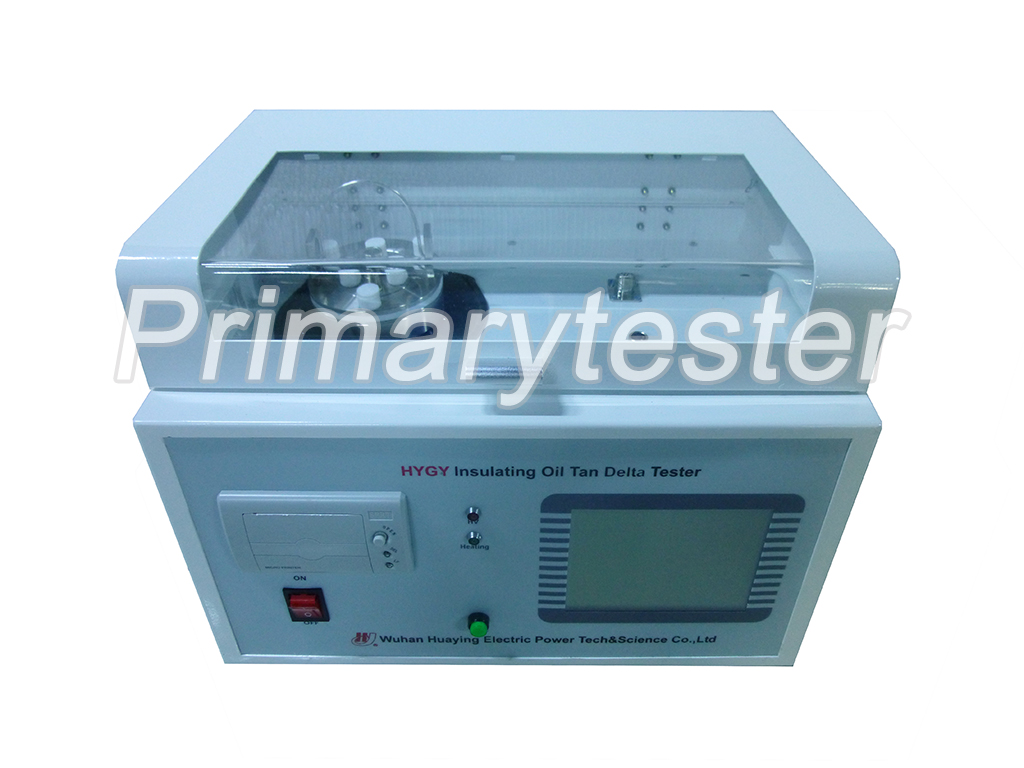

Insulating Oil Tan Delta Tester HYGY
HYGY Digital Automatic Dielectric Dissipation Factor Tester is a high-precision instrument, which can be applied to measure dielectric loss angle and Volume Resistivity of insulating oil etc. It is integrated by oil cup for dielectric loss, temperature-control equipment, temperature sensor, test-bridge for dielectric loss, AC trial electrical source, standard capacitor, high resistance meter and DC high-voltage power etc.
Datasheet
Video
Contact UsThe most advanced heating mode of high frequency induction is applied to the heating part of this instrument, which has the advantage of non-contact of oil cup and heating unit, homogeneous heating, quick velocity and convenient control etc. Convenience and maneuverability are the most remarkable advantages of this instrument:
1. Digital technology and intelligent automation measurement are applied inside the instrument, multi-mode testing.
2. Big touch screen (320mm×240mm) menu interface in Chinese is equipped, with which user can be prompted each step during the operating process.
3. The result can be output by printer.
1 | Condition of Use | -5℃∽40℃ RH＜80% | |
2 | Power Source | AC 220V±10% Without Frequency Limit | |
3 | AC High Voltage Output | 400V∽2200V ±2% Every 100V 50VA | |
4 | DC High Voltage Output | 200V∽600V ±2% | |
5 | Temperature Control Induction Stove | Maximal Power 500W | |
6 | Temperature Control Range | <100℃ | |
7 | Temperature Control Error | ±0.5 ℃ | |
8 | Temperature Measurement Resolution | 0.1℃ | |
9 | Temperature Control Time | Room Temperature 90℃ <20min | |
10 | Measuring Range | tgδ Without Limit | |
Cx 15PF-300PF | |||
Rx 10M-20T | |||
11 | Resolution | tgδ 0.001% | |
Cx 0.01pF | |||
Rx 0.01 | |||
12 | Precision | △ tgδ： △ Cx ： △ Rx ： | ±(Reading*0.5%+0.020%) ±(Reading*0.5%+0.5PF) ±Reading * 10% |
13 | Relative Dielectric Loss Constant | εr | Calculated Automatically |
14 | Volume Resistivity | ρ | Calculated Automatically |
15 | Dimension | 450（L）×310 （W）×360 （H） | |
16 | Weight | 21Kg | |

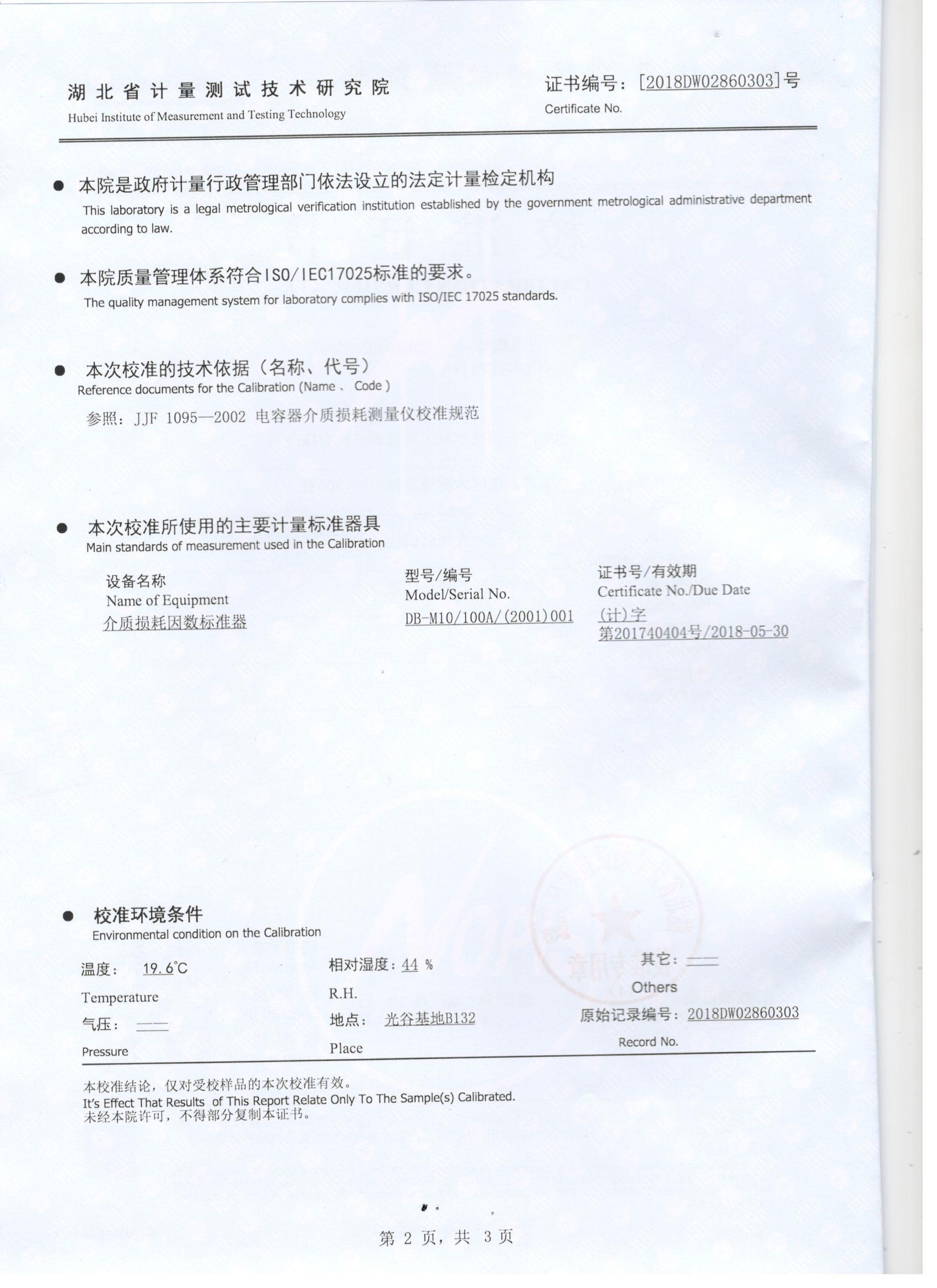

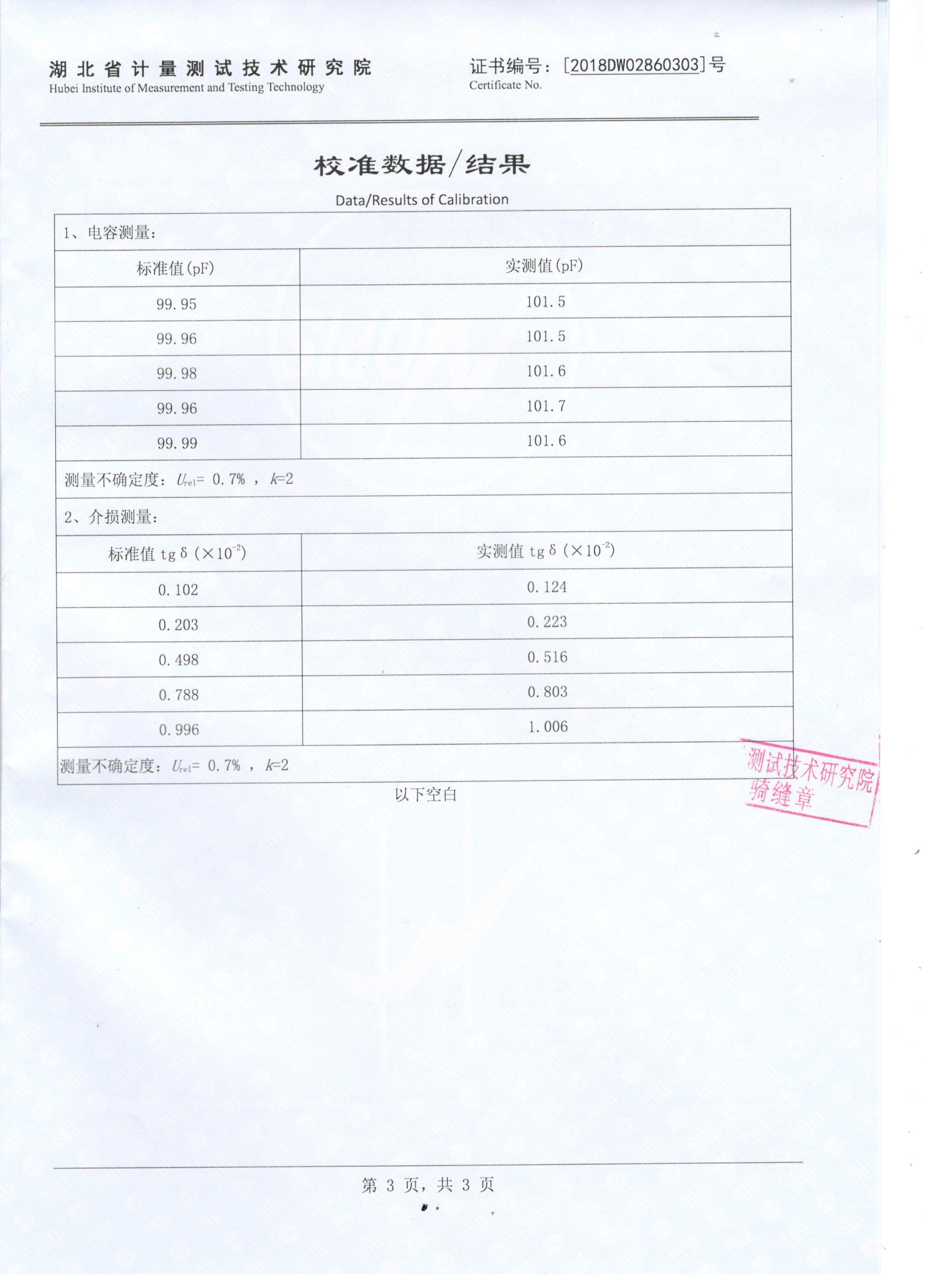

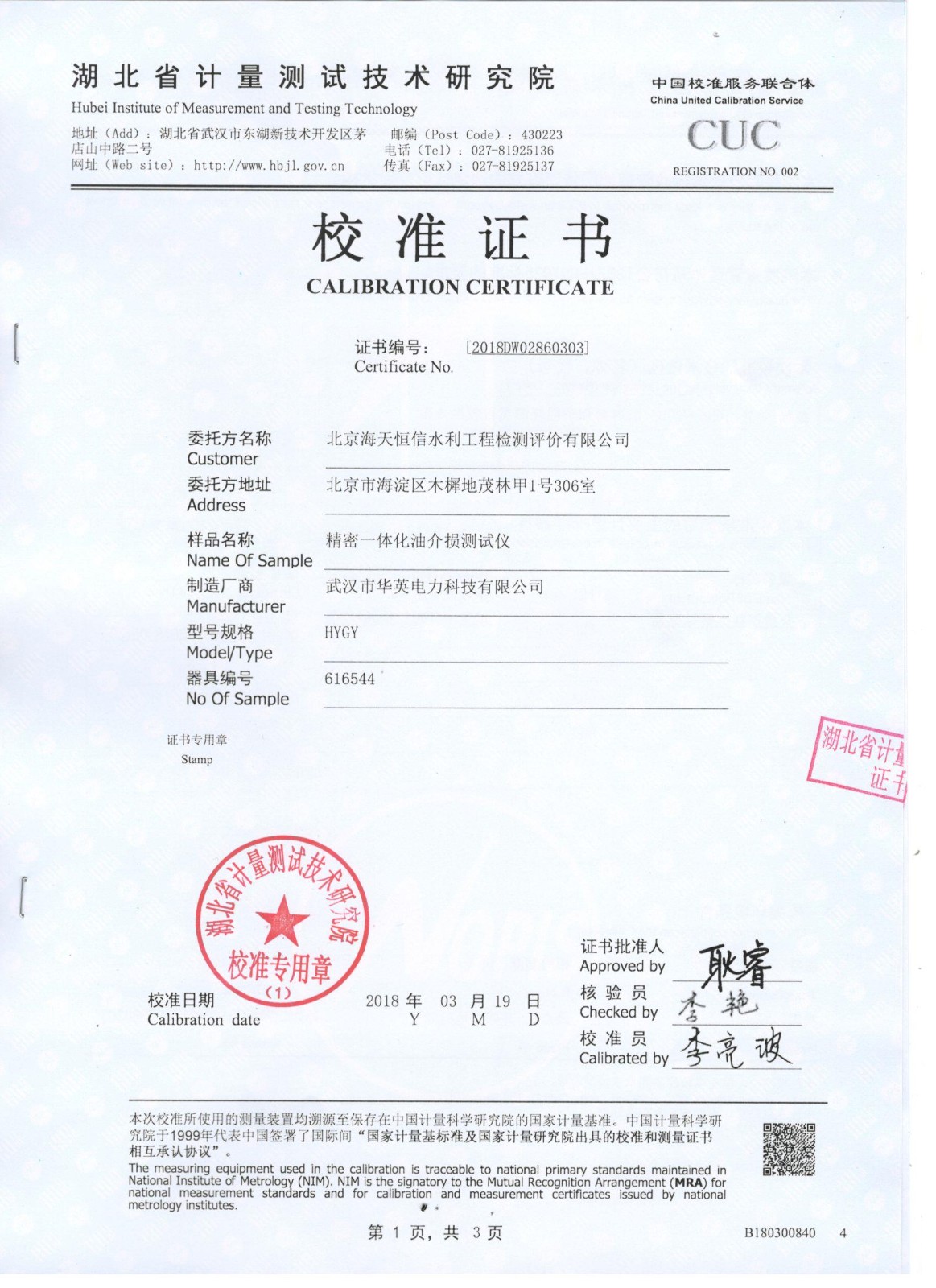

Calibration certificate of Insulating Oil Tan Delta Tester HYGY issued by Hubei Institute of Measurement and Testing Technology
-
