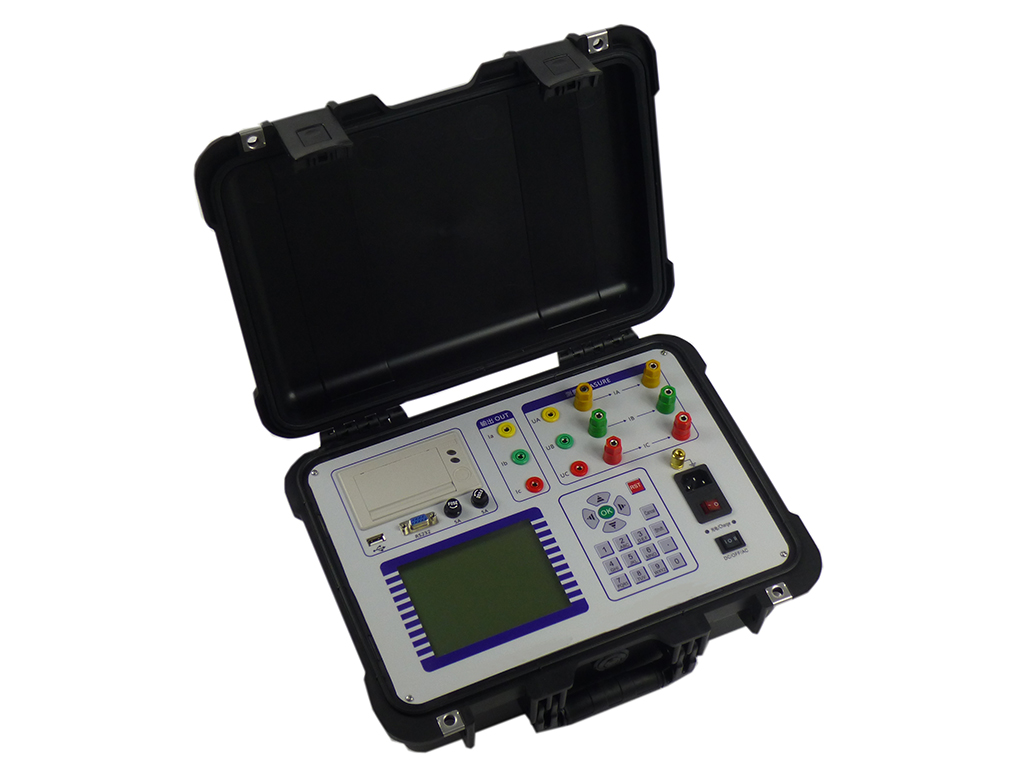

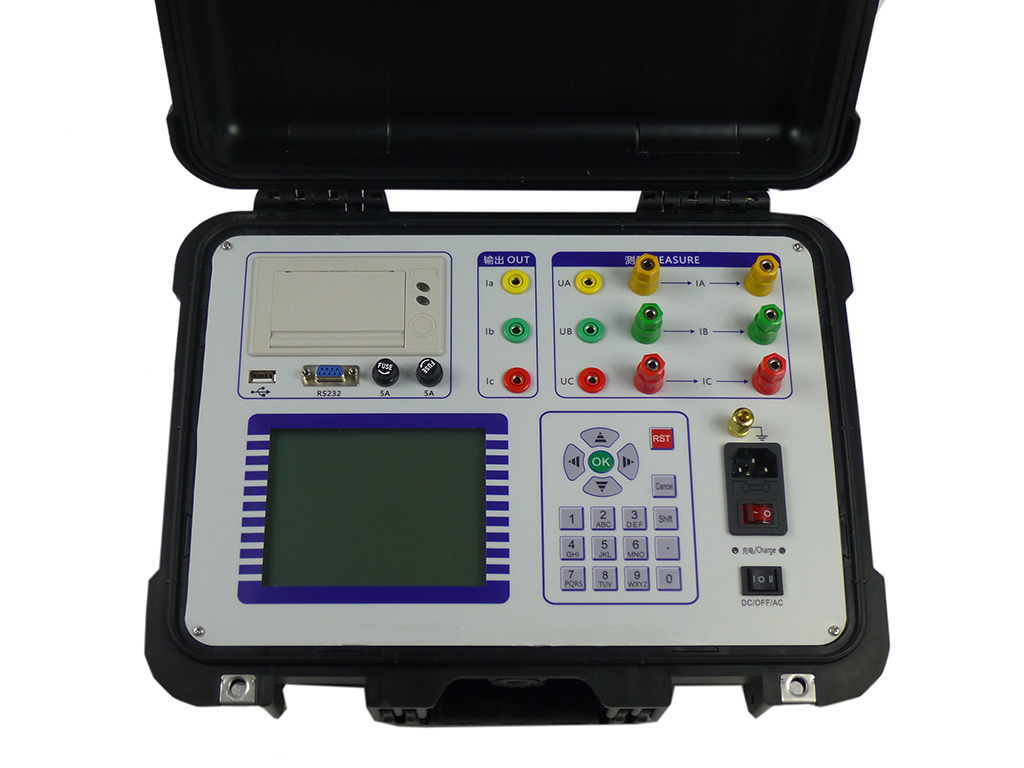

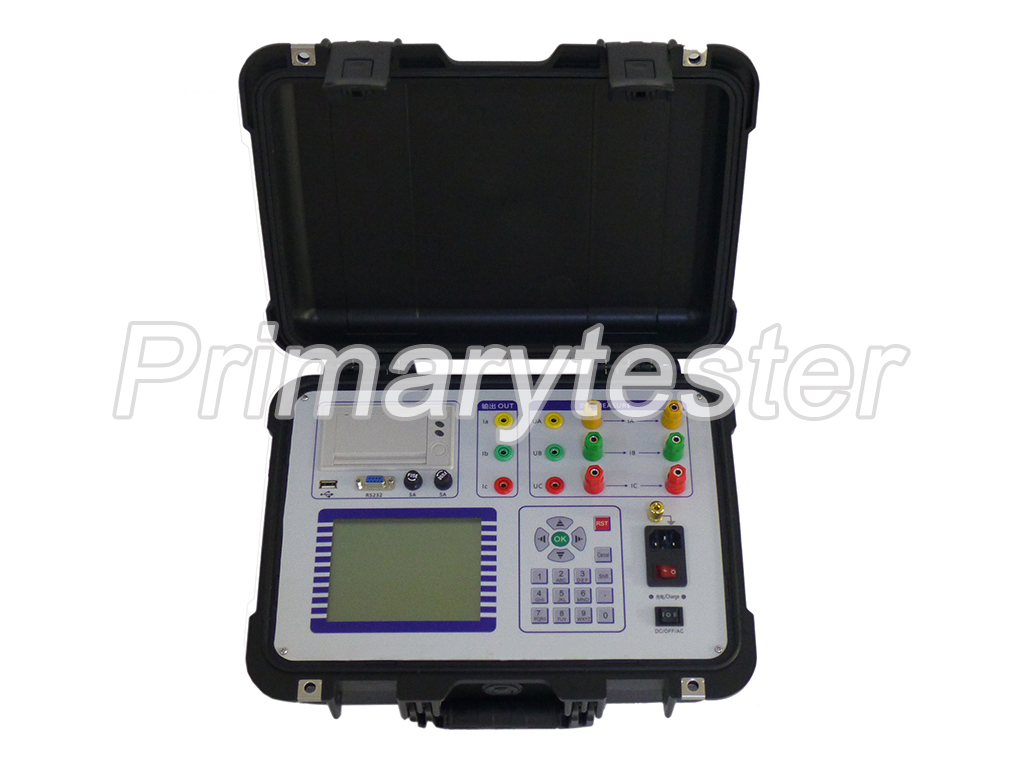

Transformer Load and Capacity Tester HYKFR
Transformer Load and Capacity Tester HYKFR can be used to measure the transformer load current, load loss, short-circuit voltage, short circuit (load) losses, capability. The tester is mainly used in the test bed with integrated for supporting the use of transformers to achieve high-precision testing of transformer no-load load characteristics.
Datasheet
Video
Contact Us1. The tester can measure the transformer load current, load loss, short-circuit voltage, short circuit (load).
2. Three Methods.
3. When doing three-phase transformer no-load, load test, the instrument can automatically determine the wiring is correct, and shows three-phase voltage and current vector map.
4. Single machine can do the following 100KVA distribution transformer full load current experiment; the load test of the distribution transformer below 2500KVA can be completed under one third of the rated current.
5. All the related test results are automatically corrected.
6. 320x240 large screen, high brightness LCD display and touch buttons make the operation more convenient.
7. Come with real-time clock
8. Panel-type thermal printer
9. With power-down storage and browsing features, you can store 500 set of experimental results with computer on-line data transfer.
10. Allow external voltage transformers and current transformers to perform extended range measurement.
| Capacity measuring range | 30kVA ~ 31500kVA |
| Current measurement range | 0-100A, auto-switch the measurement range |
| Current measurement accuracy | ± (0.2% + 3digits) |
| Voltage measurement range | line voltage 0-750V |
| phase voltage 0-450V, auto-switch the measurement range | |
| Voltage measurement accuracy | ± (0.2% + 3digits) |
| Capacity accuracy | < ±0.5%（CosΦ>0.1），±1.0%（0.02<CosΦ<0.1） |
| Insulation resistance | > 100MΩ |
| Leakage current | <3.5mA |
| Dielectric strength: the power connection on the chassis can withstand | 1500V |
| External transformer can broaden the scope of measurement instruments | |
| Frequency range | 40 ~ 65Hz, accuracy class 0.2 |
| Power input | AC220V ± 10% |

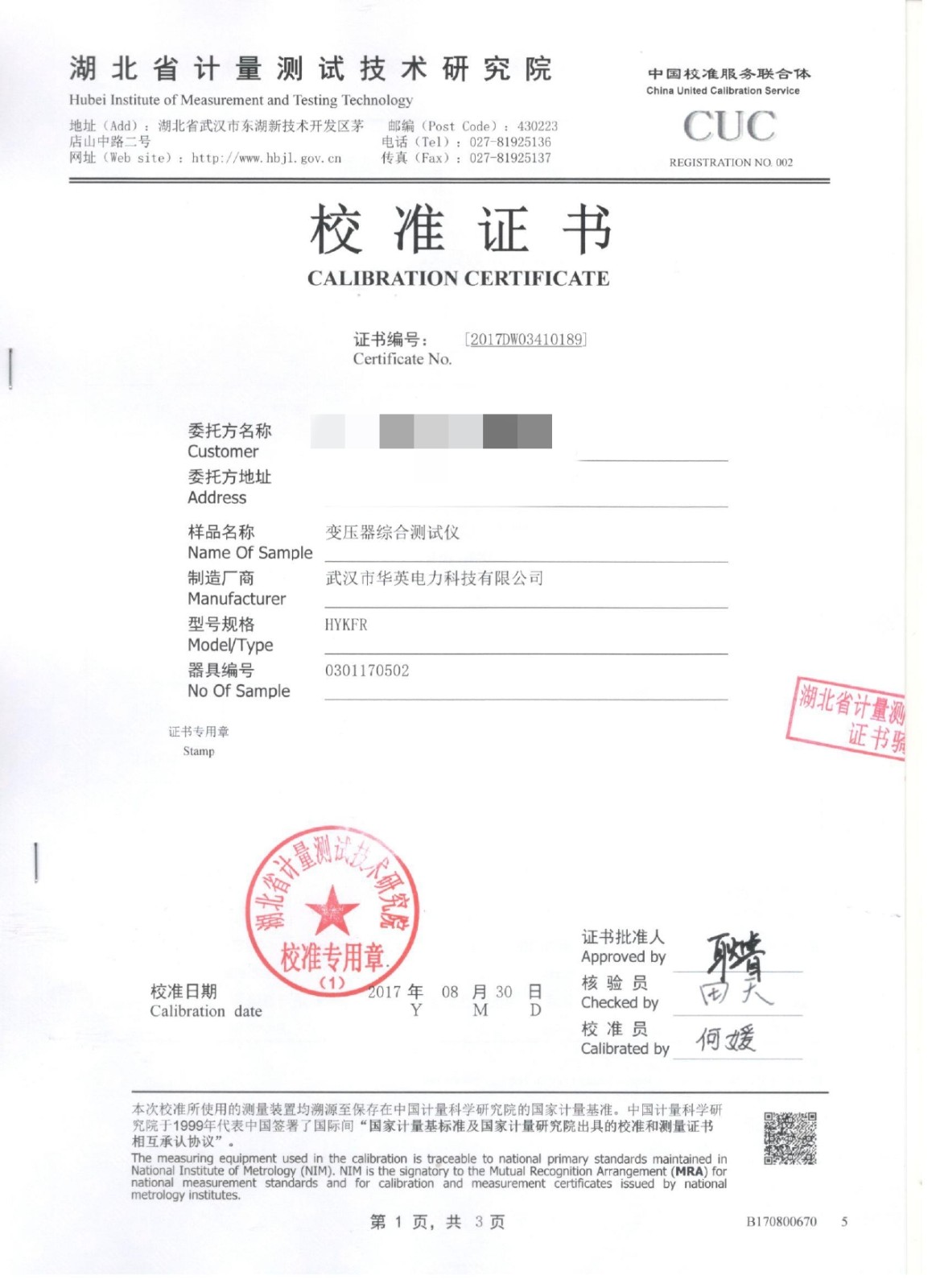

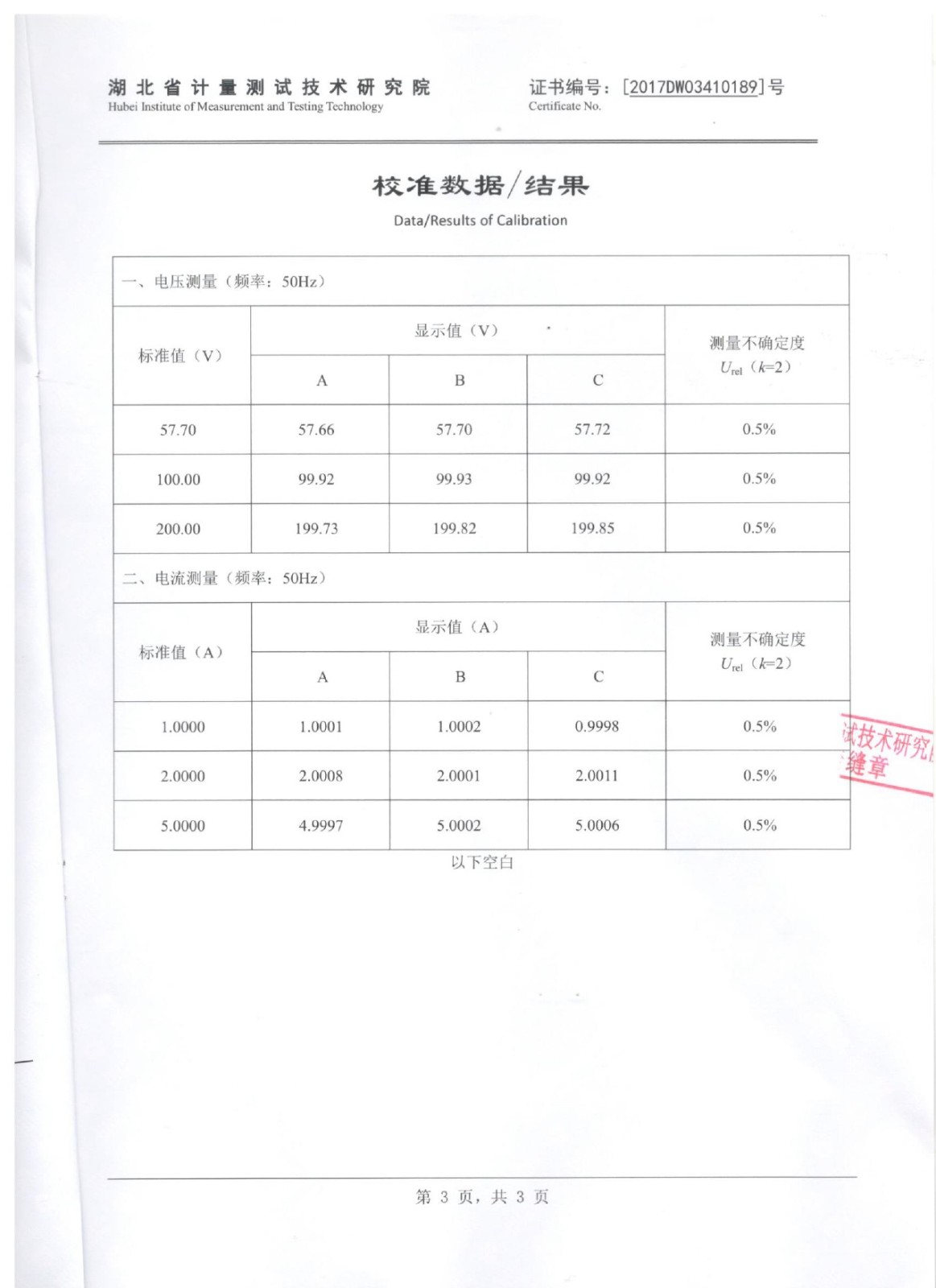

Calibration certificate of Transformer Load and Capacity Tester HYKFR issued by Hubei Institute of Measurement and Testing Technology
-
