Frequency Response Analyzer HYRZ-903

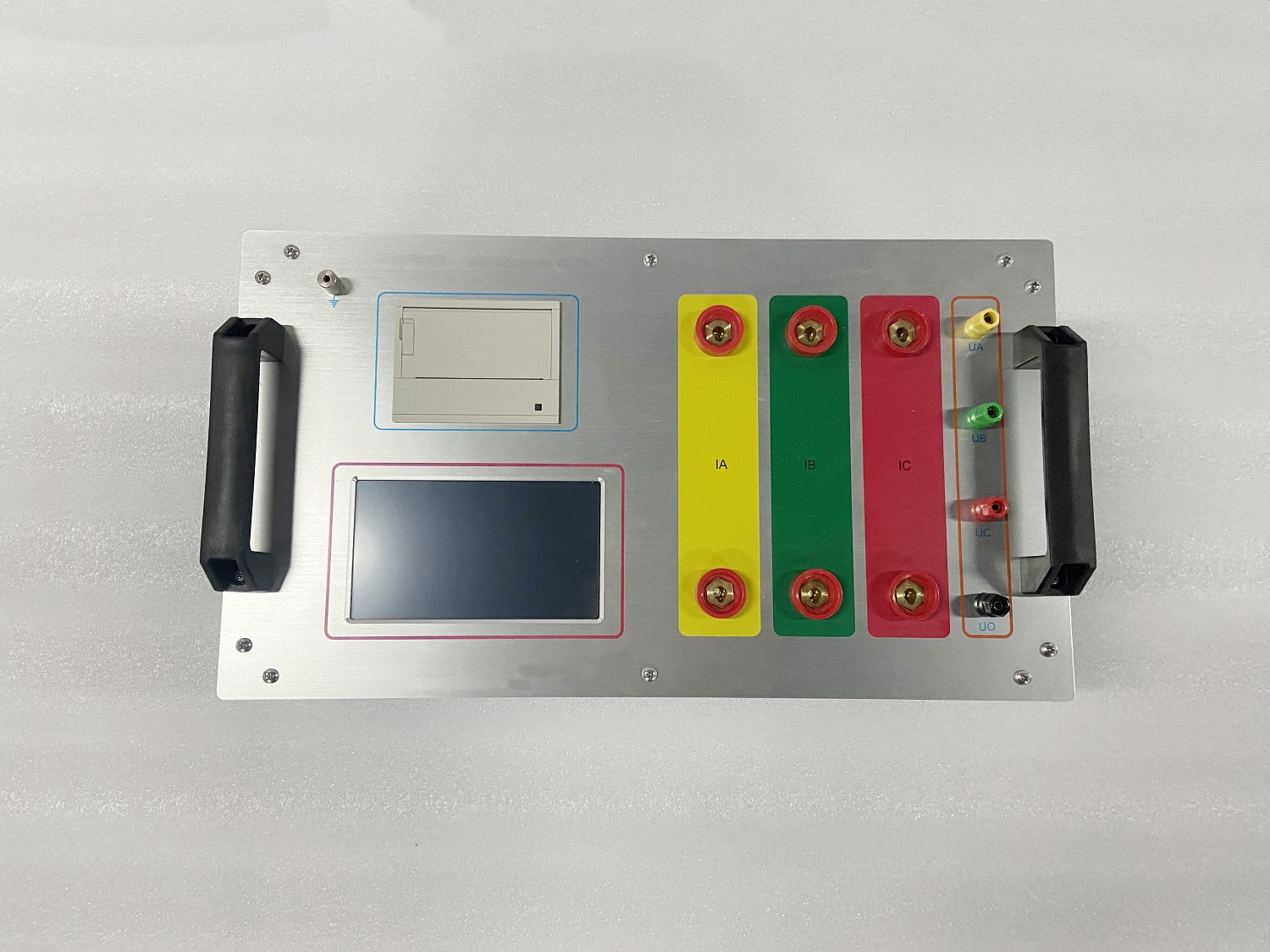

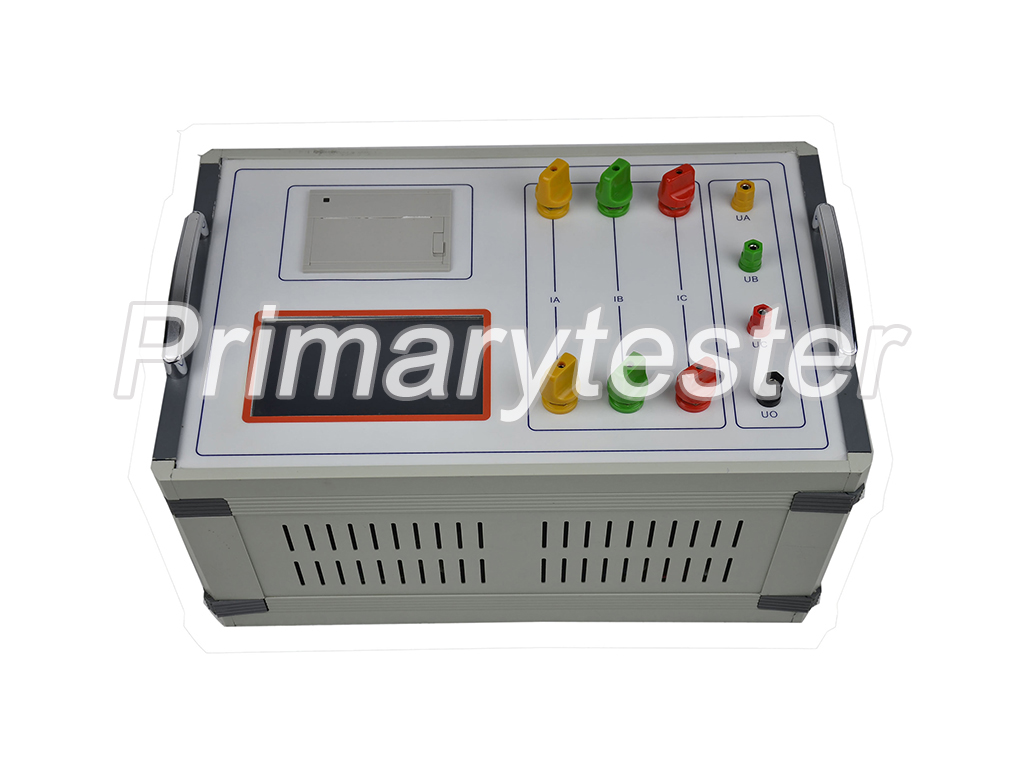

Our company has designed the frequency response analyzer HYRZ-903, which can use two methods to detect the deformation of the transformer at the same time. One is the sweep frequency response analysis method, the other is low-voltage short-circuit impedance method. Using two methods can effectively reduce incorrect judgments. The tester, follow the national power industry standards DL / T911-2004 and DLT 1093-2008, and can be used for IEC60076-18-2012 and IEC60076-5-2006.
Datasheet
Video
Contact Us1. Using the advanced technical of DDS;
2. Using the high speed and advanced microprocessor to design;
3. Using AD chip of 16 bits;
4. With seven inch LCD touch screen of which the brightness can be adjusted;
5. With thermal printer of which the print thick can be adjusted;
6. It could store one hundred and twenty groups of FRA data, fifty groups of SCI data and thirty groups of SCI data, which could be read to current screen or upload to the PC;
7. With PC software using which we could upload data ,test, analyze data, print data, or create word document;
8. Using USB2.0 to connect to the device;
Sweep frequency response：
1， Two different sweep modes： Linear sweep，Section sweep；
Linear sweep：
10HZ-1MHZ interval 0.5KHZ 2000 dots
100HZ-2MHZ interval 0.5KHZ 2000 dots
10HZ-1MHZ interval 0.25KHZ 4000 dots（PC available）
100KHZ-2MHZ interval 0.25KHZ 4000 dots（PC available）
Frequency，interval，and scan dots can be set（PC available）
Section sweep：
10HZ-100HZ interval 1HZ 90 dots
100HZ-1KHZ interval 5HZ 180 dots
1KHZ -10KHZ interval 50HZ 180 dots
10KHZ-100KHZ interval 0.2KHZ 450 dots
100KHZ –300KHZ interval 0.5KHZ 400 dots
300KHZ – 1000KHZ interval 1KHZ 700 dots
2， Test range：(-100dB） - （+20dB）
3， Test accuracy：(-80dB） - （+20dB）0.2dB (-100dB） - （-80dB）1.0dB；
4， Frequency accuracy：< 0.01%；
5， Signal input impedance：> 1M Ω；
6， Signal output impedance：50 Ω；
7， In-phase test repetition rate：99.5%；
Short-circuit impedance and generator rotor AC impedance：
1，AC impedance 0～999.999Ω 0.2%±2 digits
2，AC voltage 0～600V 0.2%±2 digits
3，AC ampere 0～120A 0.2%±2 digits
4，Active power cosφ>0.1 0.5%±2 digits
cosφ<0.1 1.0%±2 digits
Reactive power 0.2%±2 digits
5，Frequency 45～65HZ 0.1%
-
