Insulation Resistance Tester HY3035
The insulation resistance meter HY3035 is suitable for measuring the insulation resistance of various insulating materials and the insulation resistance of transformer, motor, cable and electrical equipment. It has many advantages such as reliable, stable performance, strong anti-interference ability and so on.
Datasheet
Video
Contact Us1. The functions of grey backlight display, data storage, data access, alarm, automatic shutdown.
2. Measuring dc voltage ac voltage absorption ratio and polarization index.
3. Beautiful and upscale, with wide range, high resolution, convenient operation, easy to carry, accurate, reliable, stable performance, strong anti-interference ability.
4. The digital insulation resistance meter consists of a large scale integrated circuit.
Rated voltage (V) | 100；250；500；1000；2500；5000V |
Measurement voltage (V) | The rated voltage×（1±10%） |
Insulation resistance range Ω (G) | 0.01MΩ～1000GΩ |
Insulation resistance resolution | 0.01MΩ |
Dc voltage range | 0～1000V |
Dc voltage resolution | 0.1V |
Ac voltage range | 0～750V |
Ac voltage resolution | 0.1V |
Output short circuit current | ≥5mA(5KV) |
The power supply | 12V rechargeable battery |
Backlight | Controllable gray screen backlight, suitable for dark |
Size of instrument | 240mm ×188mm ×85mm |
Power consumption | Standby: 30mA Max (backlight closing) |
Turn on the acklight: 42mA Max | |
Measurement: 300mA Max (backlight closing) | |
Instrument quality | 2720g |
The battery voltage | Low battery voltage, display low electrical symbol “ |
Automatic shutdown | The instrument is not operated for 15 minutes |
Insulation resistance | ≥50MΩ(measuring line and enclosure) |
Pressure | AC3kV/50Hz |
Working temperature and humidity | －10℃～+50℃＜85%RH |
Storage temperature and humidity | －15℃～+55℃＜90%RH |

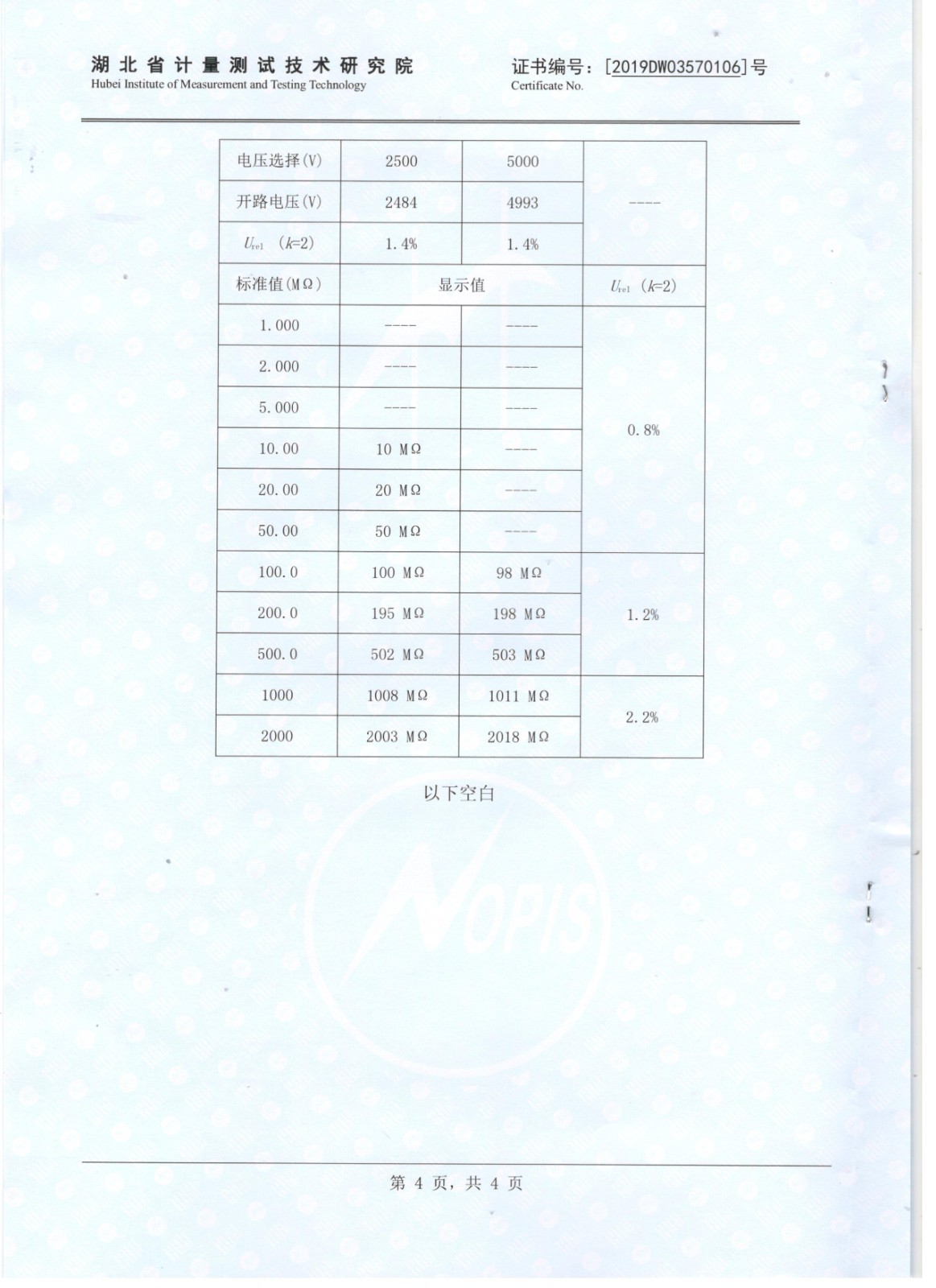

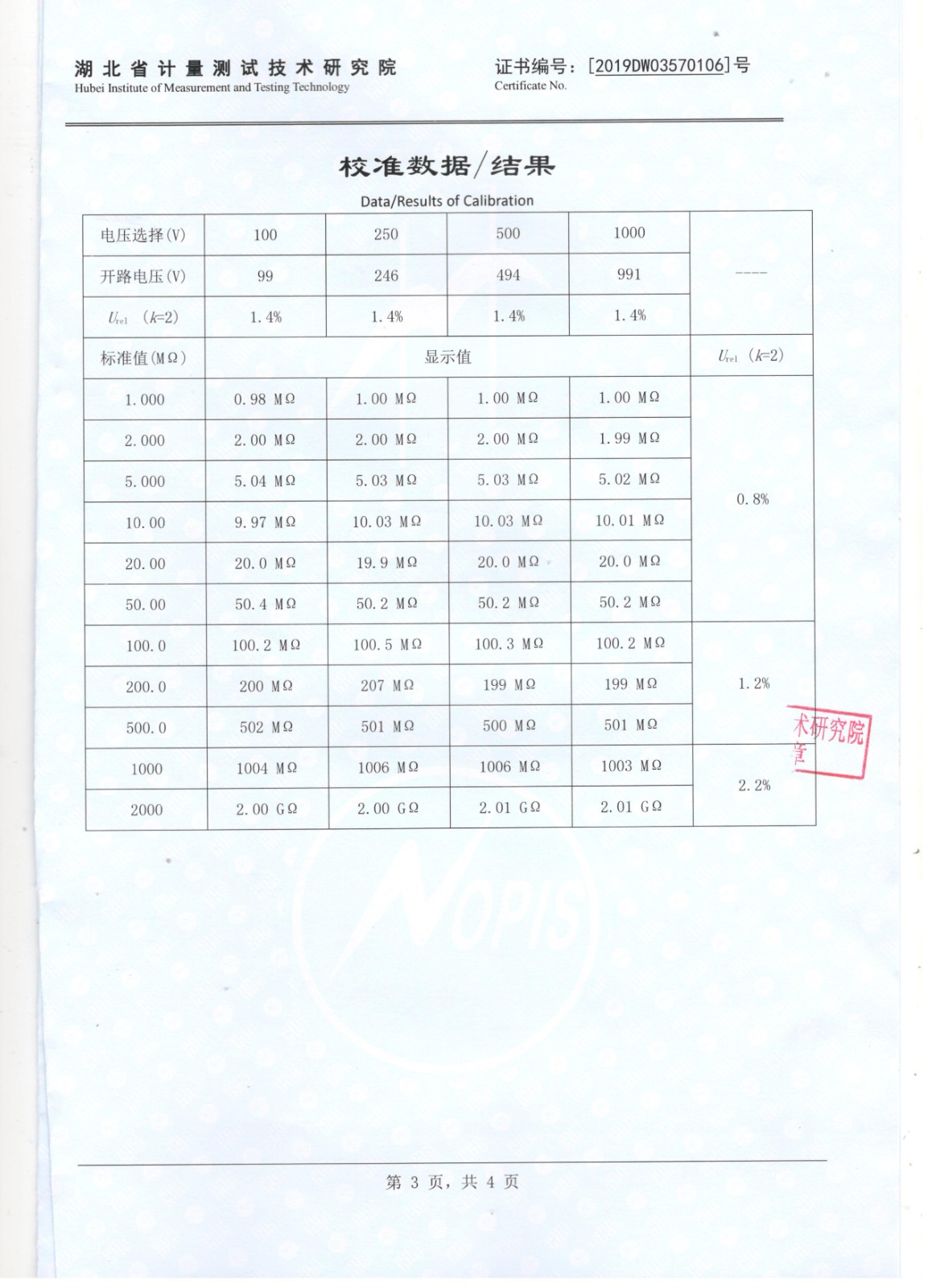

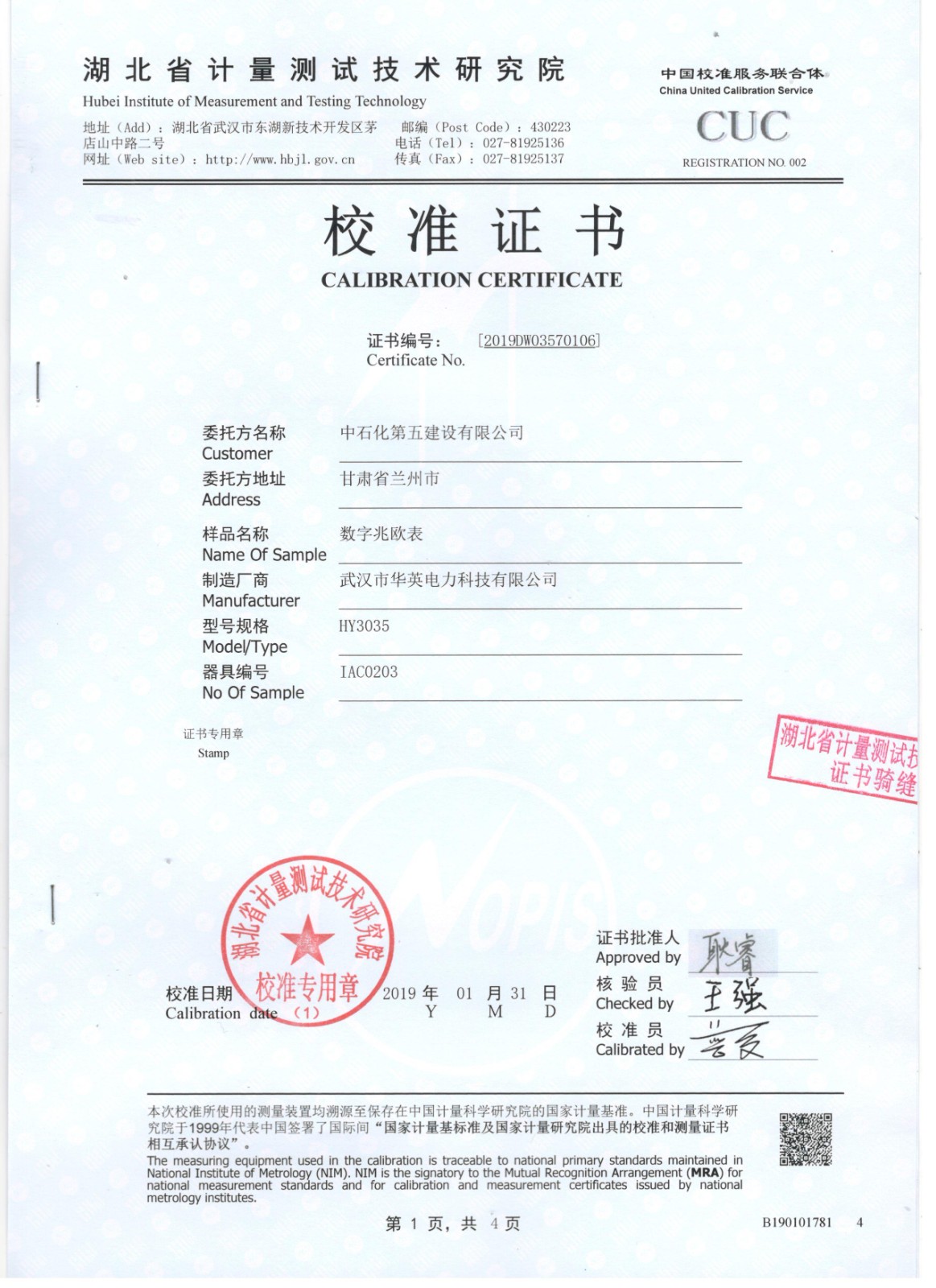

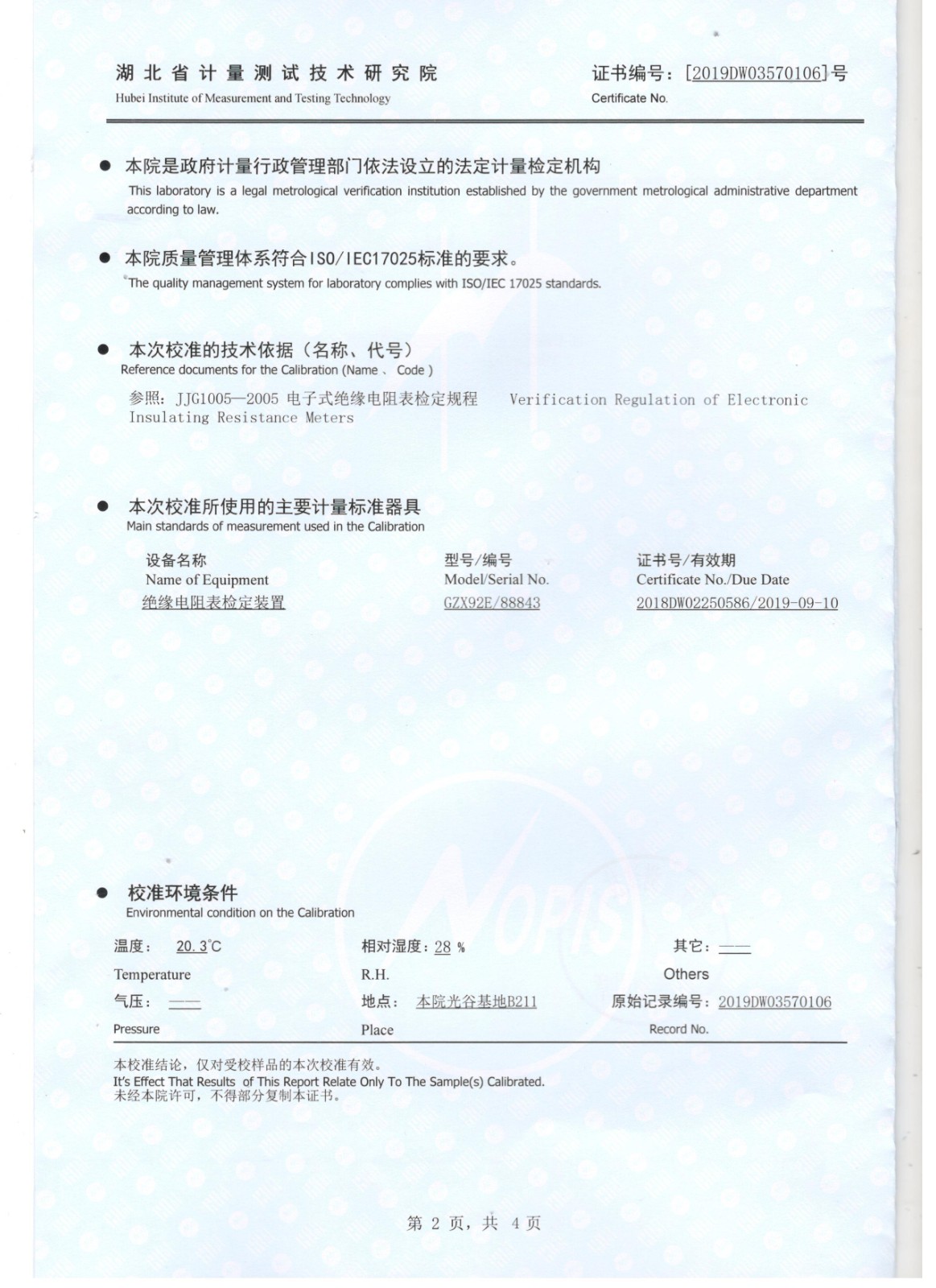

Calibration certificate of Insulation Resistance Tester HY3035 issued by Hubei Institute of Measurement and Testing Technology
-
