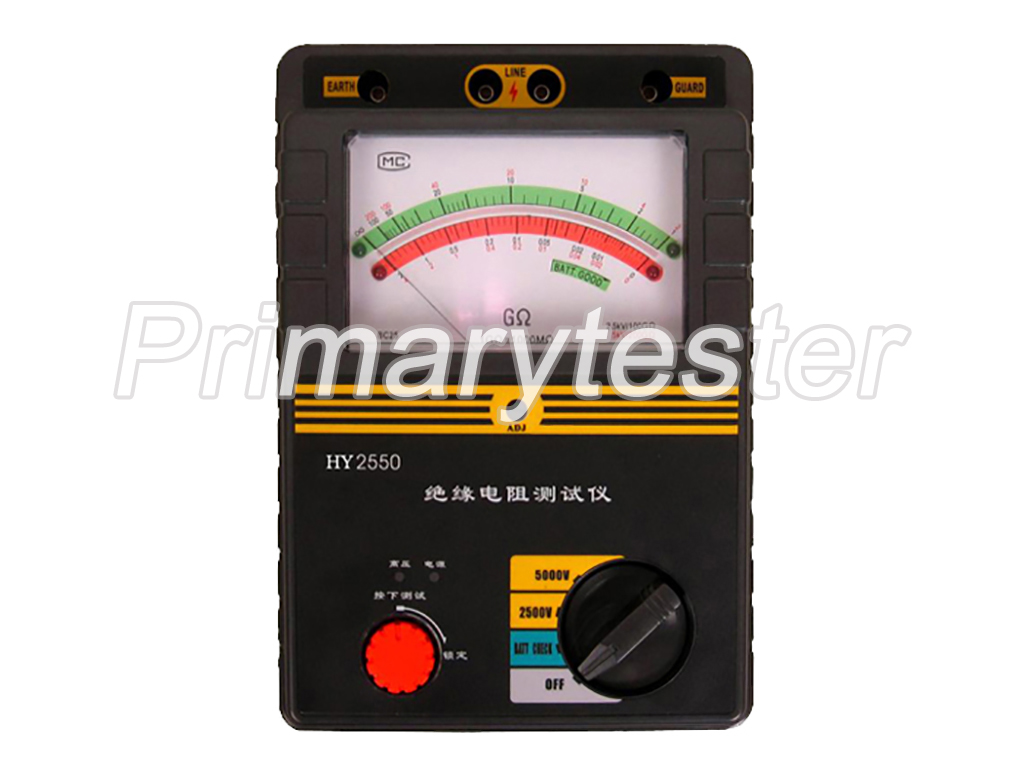

Insulation Resistance Tester HY2550
Our Insulation Resistance Tester HY25 series uses super-thin tensile meter and multi test voltage. It features high capacity, strong anti-interference, applicable both AC and DC (C type), simple and fast test, and easy to carry. It is the ideal tester for insulation resistance like transformer, mutual inductor, electric generator, high voltage motor, power capacitor, power cable, and arrester.
Datasheet
Video
Contact Us1. HY2550 can make insulation test highest 100GΩ at 2500V, and 200GΩ at 5000V.
2. Automatic exchange of high and low range has two scale indicators. Color indicator is easy to read and with LED display for corresponding color.
3. Complete tester uses ABS plastic housing for easy carry and has strong anti-interference. It features compact structure and exquisite appearance.
4. Tester adopts tensile meter and has strong shock resistance.
5. AC/DC, built-in rechargeable battery and intelligence charging module, high output power (C type)
Model | HY2550 | ||
Output Voltage | 2500V DC | 5000V DC | |
Accuracy | Temperature | 23℃±5℃ | |
Insulation Resistance | 5MΩ～100GΩ ±5％ | 10MΩ～200GΩ ±5％ | |
Output Voltage | 20MΩ～100GΩ 0～+10％ | 40MΩ～200GΩ 0～+10％ | |
Short Circuit Current | Approximately 1mA | ||
Working Power Supply | 8pcs AA alkaline batteries（8pcs AA rechargeable battery, charging adapter） | ||
Working Temperature and Humidity | 0℃～40℃，maximum relative humidity 80％ | ||
Storage Temperature and Humidity | -10℃～60℃，maximum relative humidity 90％ | ||
Insulating Property | Insulation resistance between circuit and housing≥50MΩ | ||
Withstand Voltage | Apply 3kv between tester circuit and housing, 50Hz sine AC voltage，last for one minute，no breakdown or flashover | ||
Size | 230（L）×190（W）×90（H）mm | ||
Weight | 2kg | ||
Accessory | A set of one plug test lead, manual, Certificate of Approval, Charging adapter（C type） | ||
-
