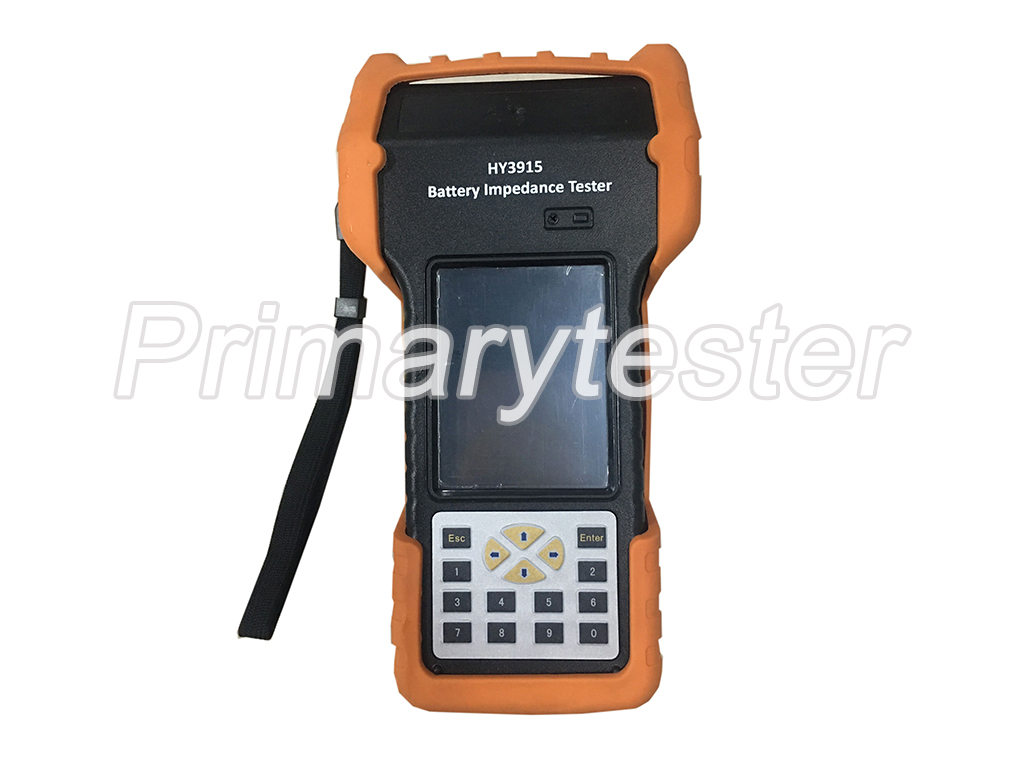

Battery Tester HY3915

This product is a new generation of battery tester with touch-screen. It is strictly designed to evaluate and maintain all stationary power systems including Uninterruptible Power System. Via accurate testing of resistance and voltage, it gives an indication of battery capacity and technical status. The measurement data can be read on the instrument display directly, and it can also be uploaded to PC simply by using the USB drive.

Technical Specification
Resistance range0.00mΩ ~ 100mΩVoltage range0.000V ~220V

Minimum test resolution


Test accuracy

±1.0%rdg ±6dgt
±0.2%rdg ±6dgt

Power supplyLi-ion batteryWorking timeMore than 8 hours
Measuring data memory3000 cellsOperation environment

0℃ to 40℃,    90% R.H

LCD display320*240 pixel TFT touch screen

Dimension (main unit)

L210*W110*H60 mm
Net weight2 kgCom portMini USB
* 16V-220V is for over voltage protection
