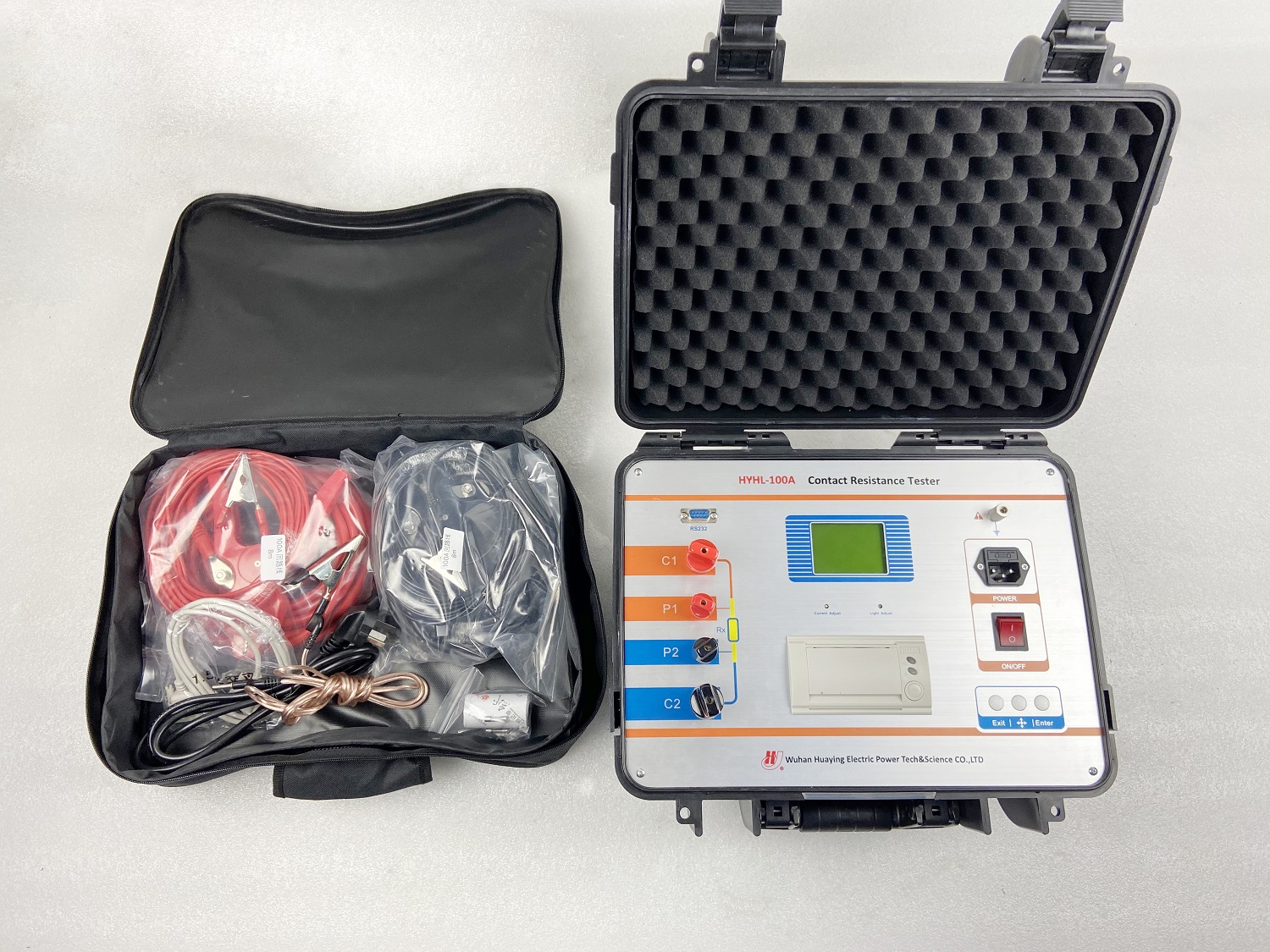

Contact Resistance Tester HYHL Series
Contact resistance tester HYHL Series outputs DC 200A/100A current to test the contact resistance of circuit breaker or high current cable contacts. It is designed according to IEC62271. The main application of the tester is the measurement of circuit breaker contact resistance.
Datasheet
Video
Contact Us1. All the test results of the tester could be printed by the micro-printer which is integrated in the tester.
2. All the test results saved in the tester could be uploaded to PC computer and converted to an MS WORD document.
Functions:
★ Contact resistance measurement
★ Result print
★ Unload data to PC
1.Measurement range: 0-1999.9 μΩ
Resolution:0.1 μΩ
2.Test current: DC 200A/100A for different selection
4. Maximum error< 0.5 %RDG+0.05%FS
5.Display mode: LCD
6. Save no more than 100 groups of data
7. RS232 computer interface
8.Rated power supply:AC220V
9. Size: 340 × 280 × 210mm3
10.Environment temperature:-10 ℃~+40 ℃
Relative humidity<80%
11.Weight:<17kg

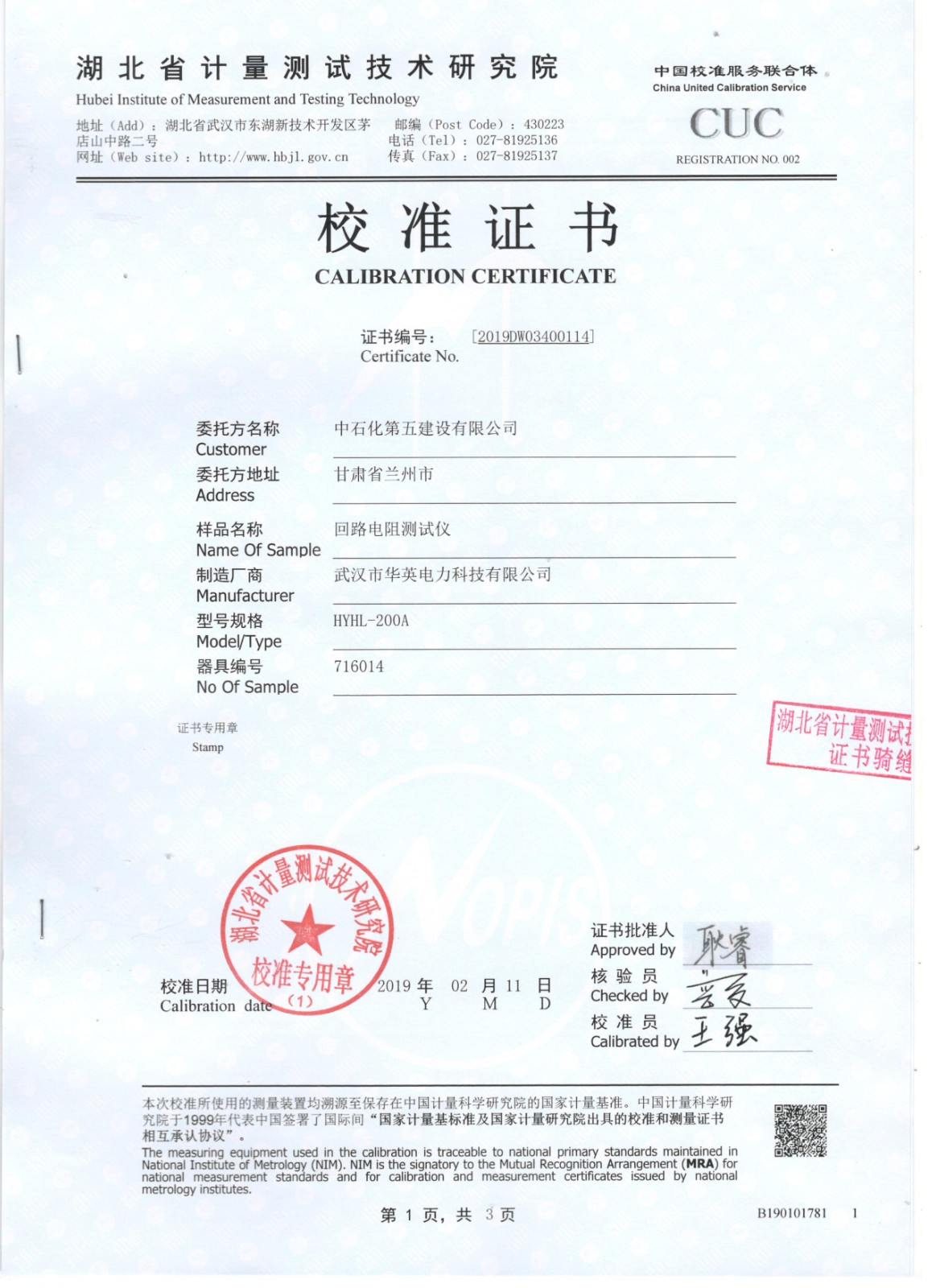

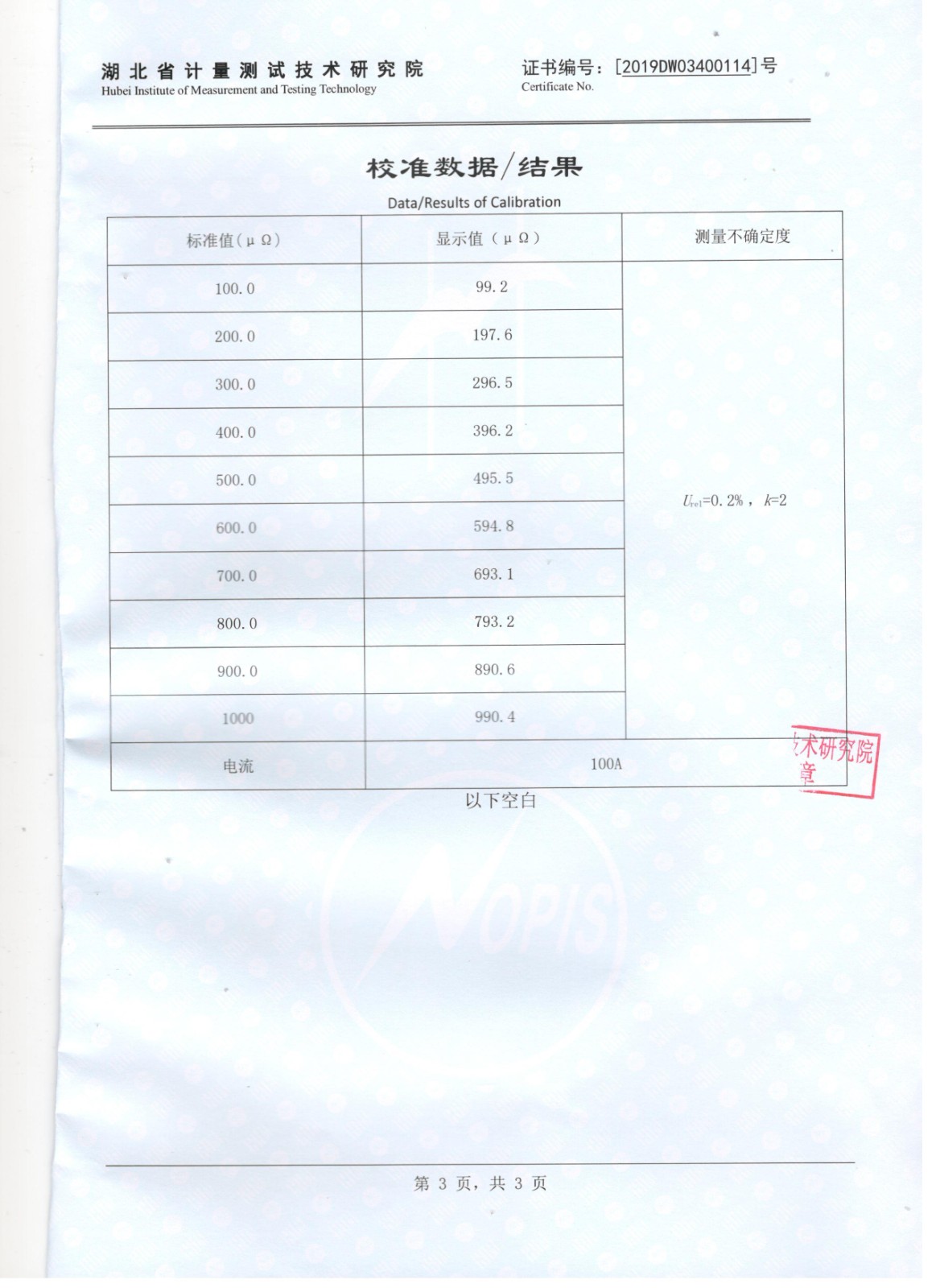

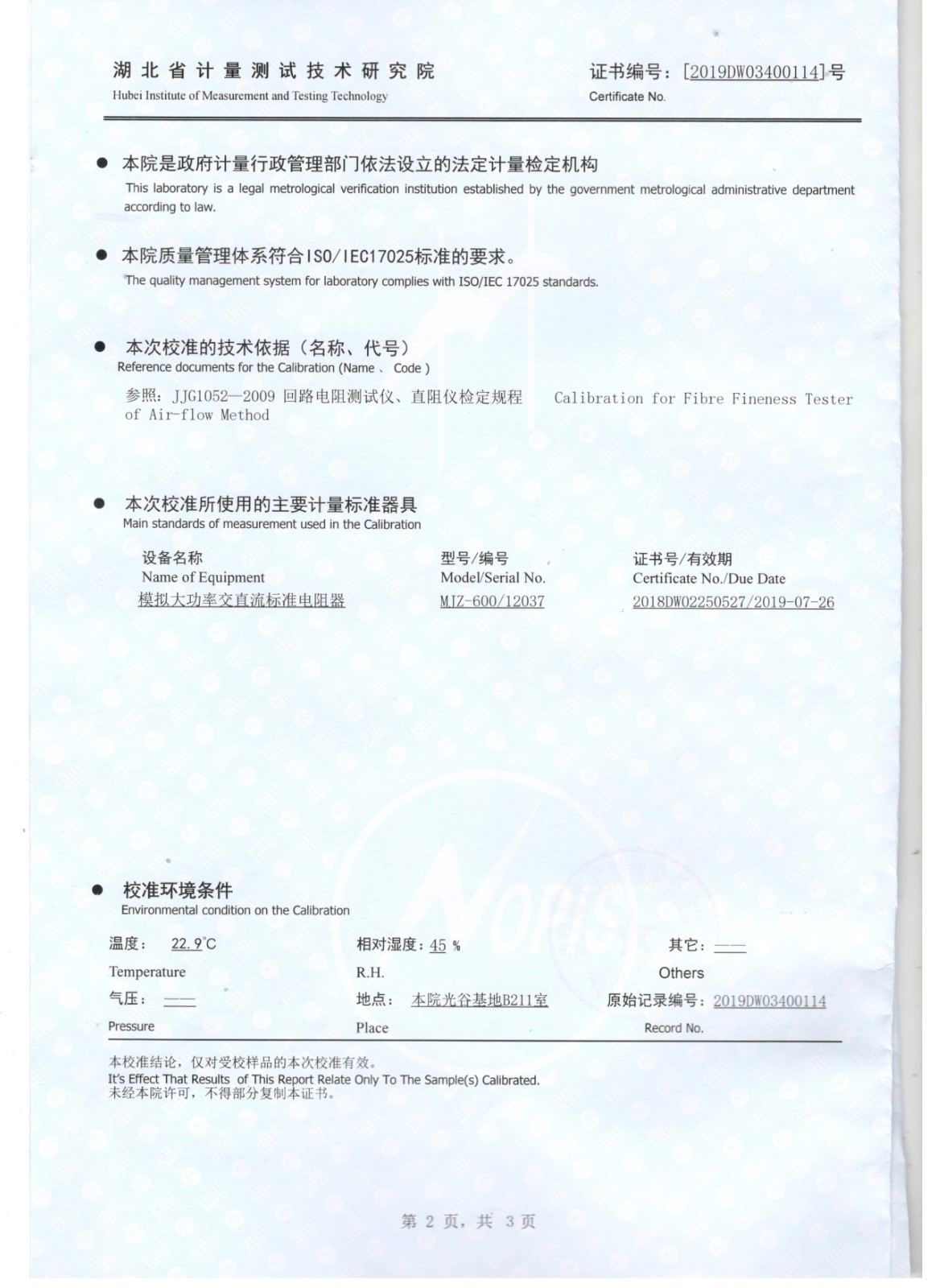

Calibration certificate of Contact Resistance Tester HYHL-200A issued by Hubei Institute of Measurement and Testing Technology
-
