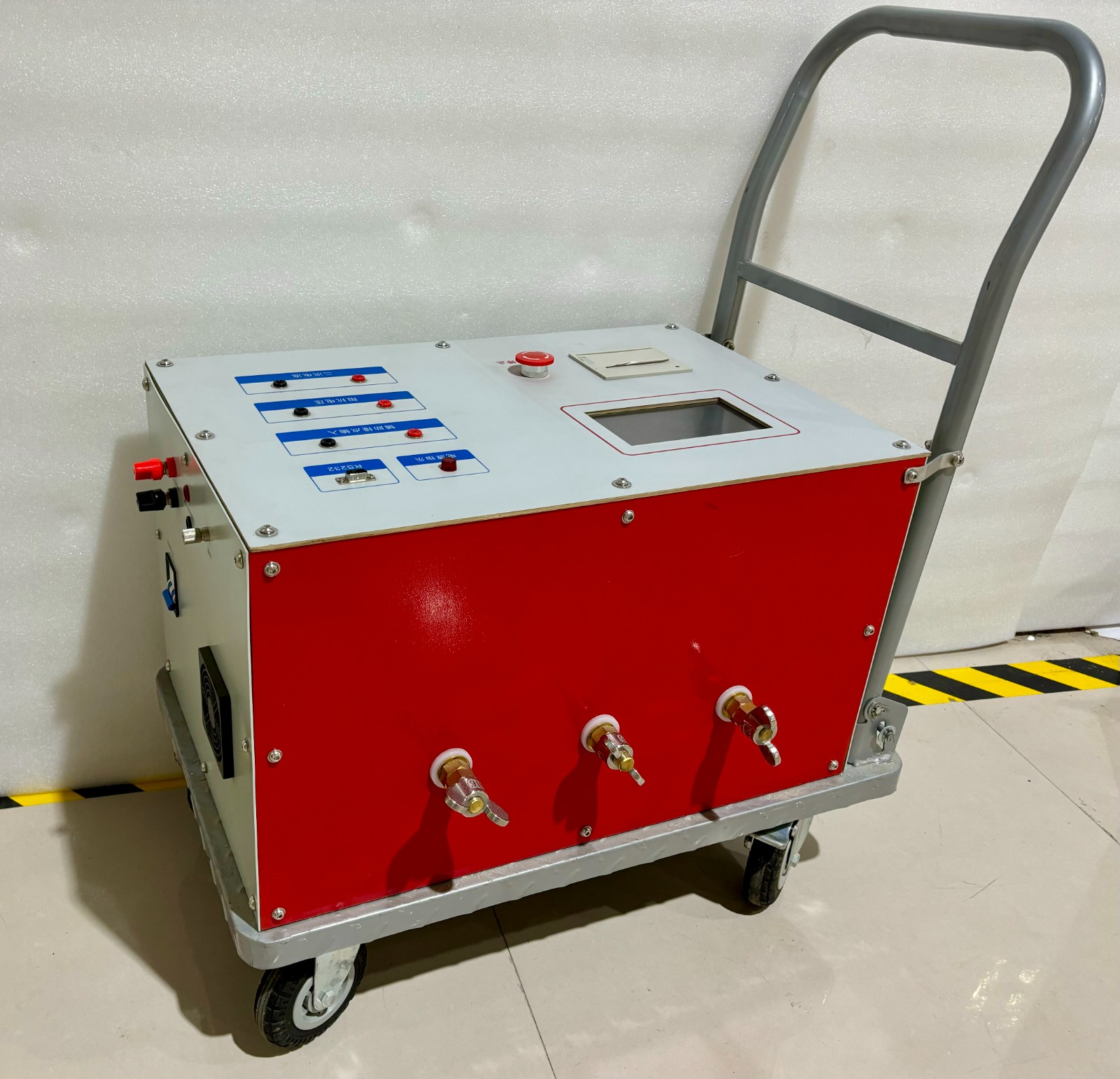

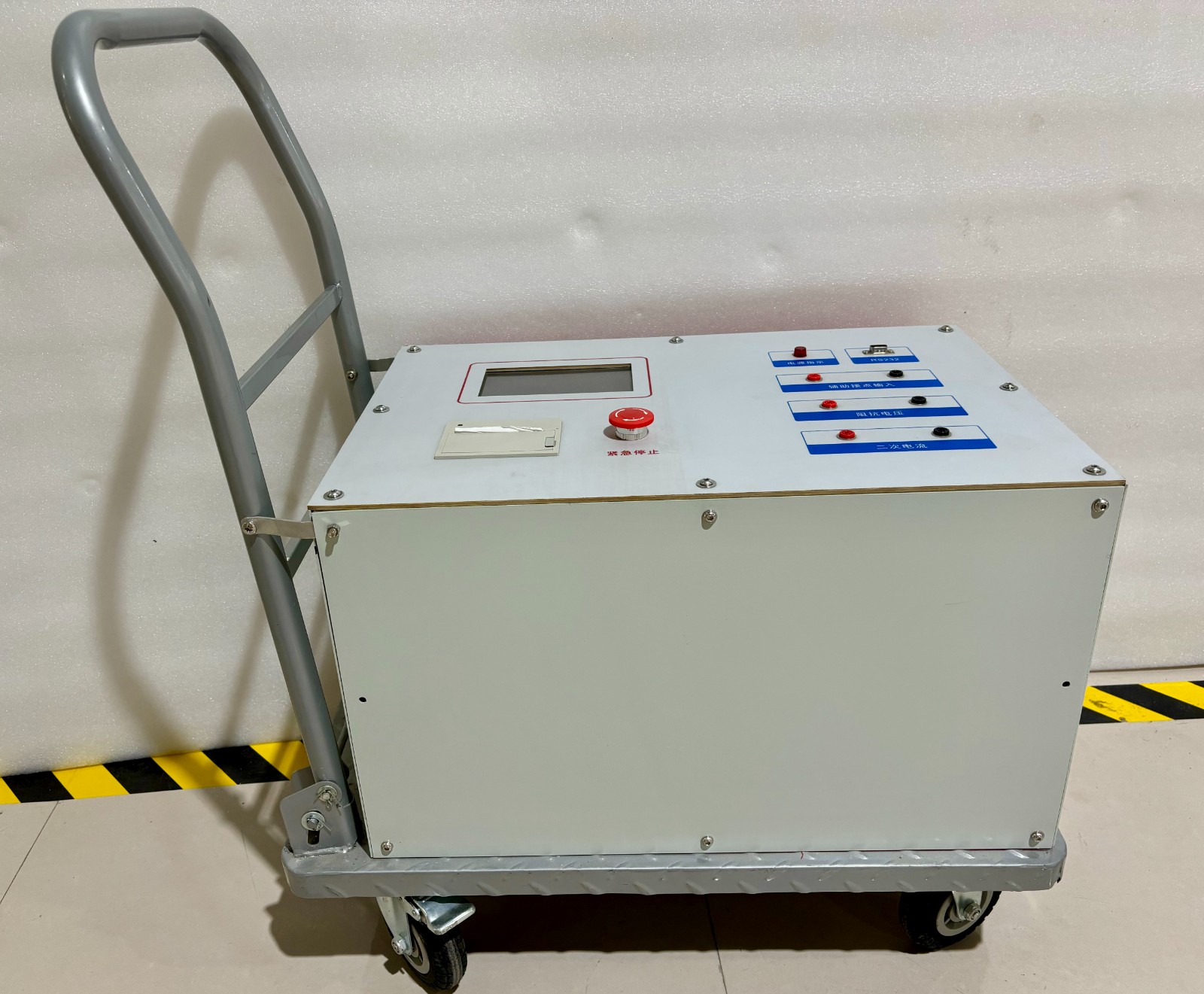

Primary Current Injection Tester HYPCIT
HYPCIT series primary current injection tester is used in power system high voltage switch testing, protection system testing and current transformer testing. The instrument generates high current from the power supply to simulate the rated current or fault current in the primary circuit of power equipment.
Datasheet
Video

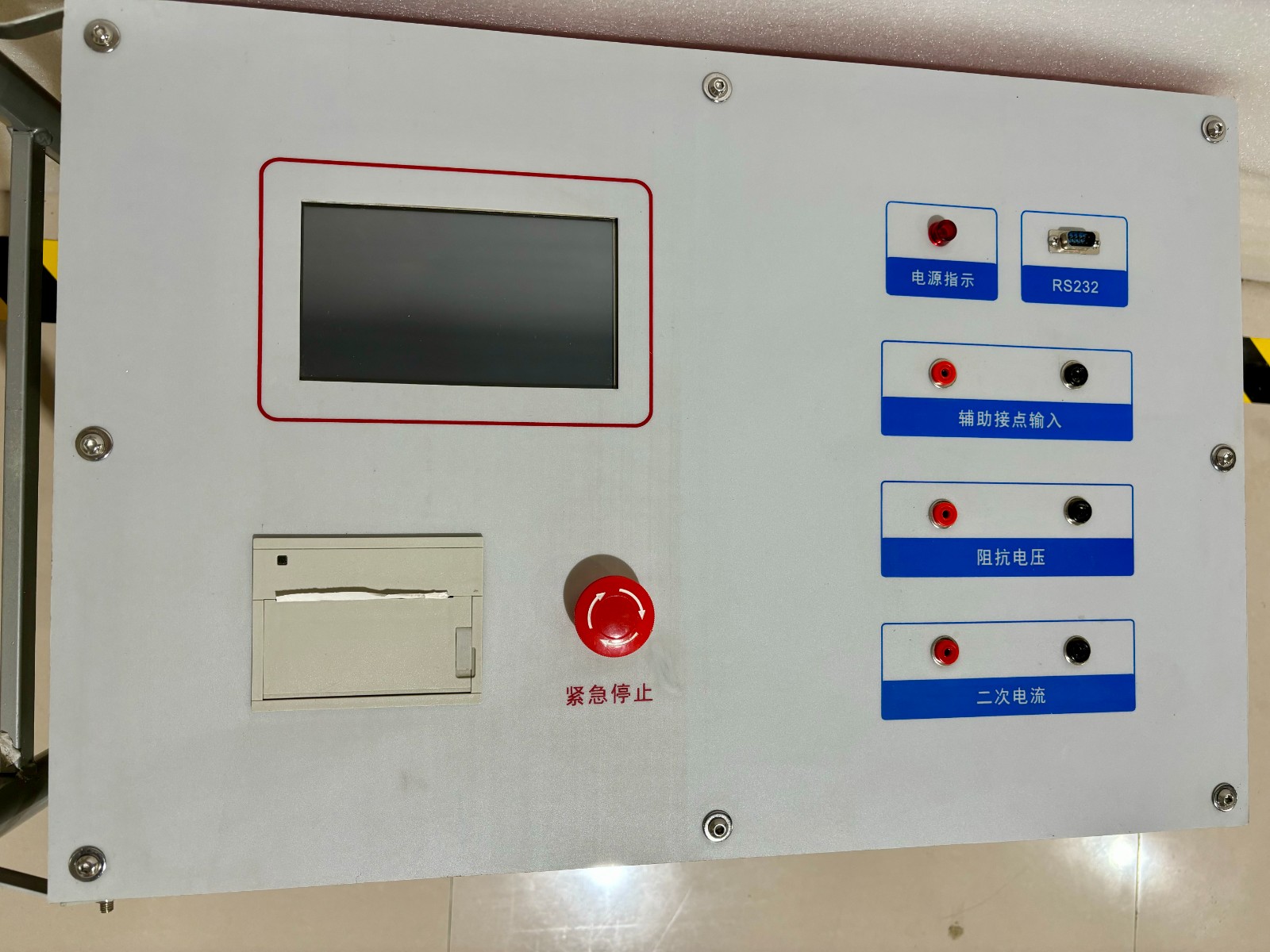

Contact Us1) 7-inch color LCD screen with 800×480 resolution.
2) Touch screen control.
3)Electric voltage regulator, can set the test voltage, current, automatic increase voltage.
4) Real-time display of regulator output voltage, primary current and other related parameters.
5) It can measure the impedance voltage and provide data such as power factor and test resistance.
6) Calculate resistance by sampling primary voltage and current.
7) Calculate active power, reactive power and power factor by sampling primary and secondary current and voltage.
8) Electric regulator output function, can be used as a regulator.
9)Current Operation time measurement.
10)Voltage Operation time measurement.
11) Circuit breaker Operation time curve drawing (can set the test current growth step and test times)
12)Built-in thermal printer.
13) RS232 communication, can upload test data.
14) Interface support Chinese and English switching.
| Current output | Electric regulator control output Max. 2000A |
| Voltage Output | Electric regulator output 0V~400V AC |
| Breaking time measurement | Measure the breaking time of over-current and over-voltage. |
| It can measure the breaking time of over-current and over-voltage of short circuit breaker for many times and draw the curve of action time. | |
| Measurement Error | Time error: 0.1ms |
| Working conditions | Working voltage: AC220V10 / AC380V10 |
| Frequency: 50Hz10 | |
| Power consumption: ≤60w | |
| Ambient temperature: 040C | |
| Ambient humidity: ≤90RH | |
| Host volume: 460340200 mm3 | |
| Weight: 10kg |
-
