Power On Cable Identifier HYCI-500

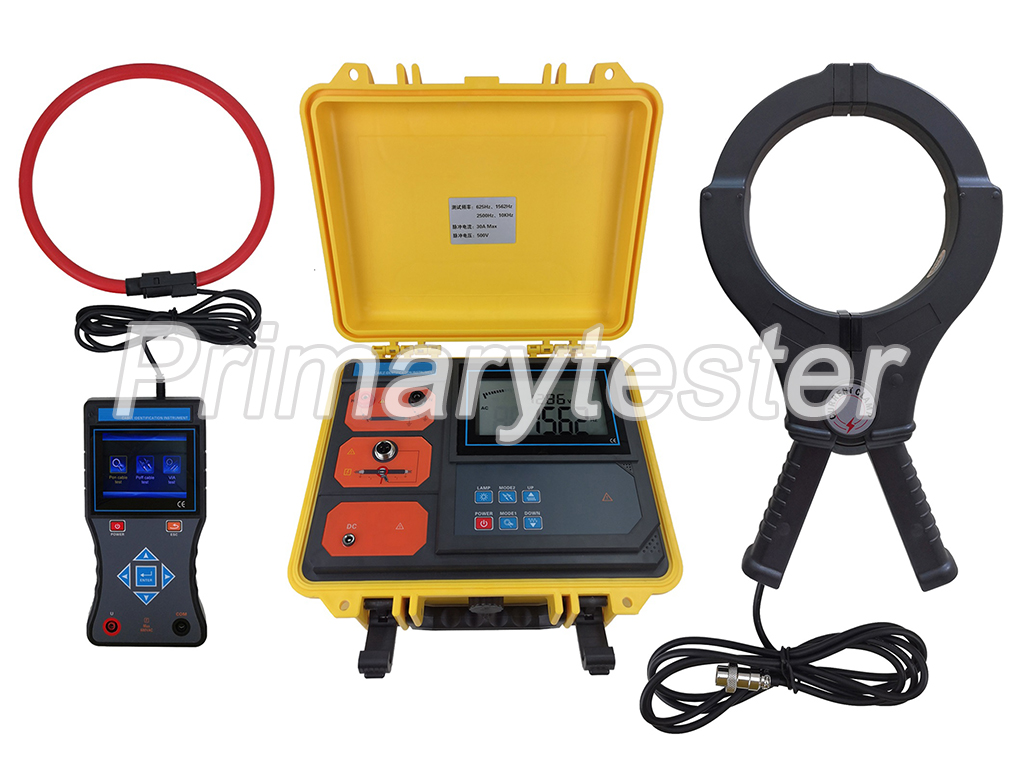

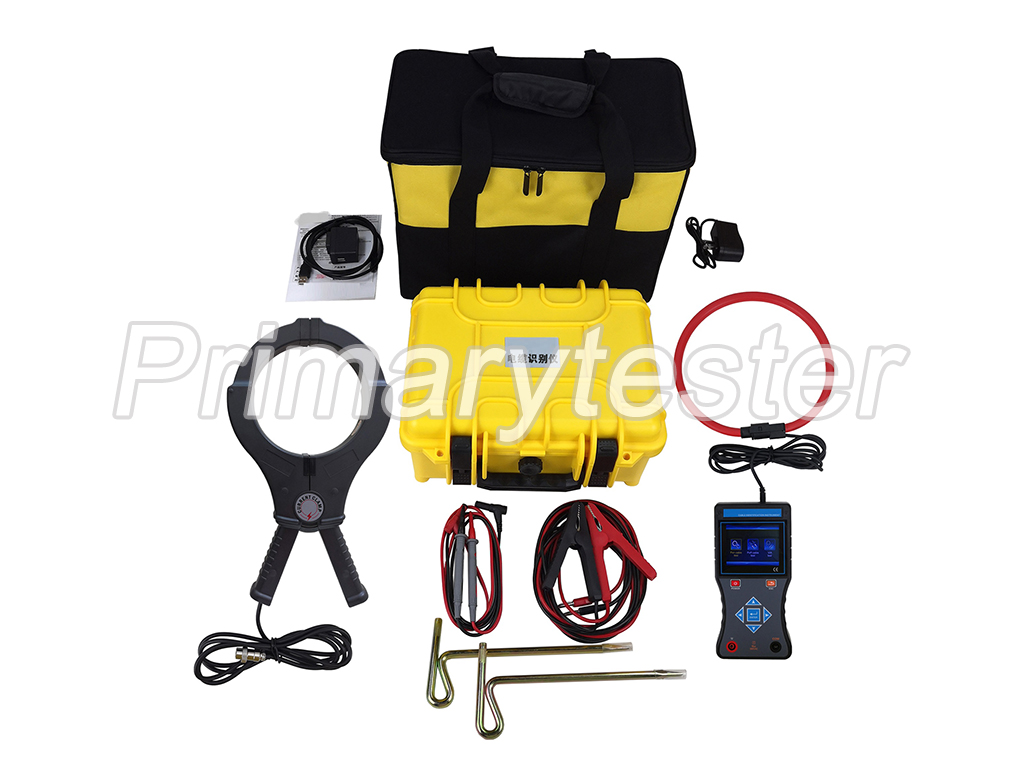

The Power On Cable Identifier is designed for power cable engineers and cable workers to solve technical problems in cable identification. This product has the functions of power on cable identification, power off cable identification, AC current test and AC voltage test. It consists of transmitter, transmitting current clamp, receiver, receiving flexible current clamp and so on.
Datasheet
Video
Contact Us1. High power transmitter, stable performance
2. Transmitter box design, withstanding 200 kg
3. Color screen icon, exquisite and intuitive
4. PSK technology, strong anti-jamming ability
5. Output frequency: 625Hz, 1562Hz,
2500Hz, 10kHz
6. Pulse current: 30A Max
7. Pulse voltage: 500V
8. Pulse width: 2ms
9. Current range: 0.00A-5000A
Pon cable identification, Poff cable identification,Voltage testing,Ampere Testing | |
Battery | Rechargeable lithium batteries: transmitter 11.1V; receiver 7.4V, full-charge continuous operation for about 8 hours |
Display | Receiver super large LCD real-time display residual battery voltage; Receiver 3.5 inch color screen, color icon |
Transmit HZ | 625Hz、1562Hz、2500Hz、10kHz |
Pulse voltage | 500V |
Pulse Current | 30A Max；1times/sec(Depending on the circuit resistance); pulse width 2ms |
Range | AC 0.00V～600V； AC 0.00A～5000A(50Hz/60Hz) |
Resolution | AC 0.01V，0.01A |
Clamp size | Transmitter clampφ120mm；Flexible clampφ200mm |
Length of Testing wire | Crocodile clamp test line 3 meters; watch pen test line 1 meter |
Signal status | Transmitting signal: dynamic display of bar chart |
Success to identify：icon √；non-target carble：icon × | |
Size | Transmitter: 320mm×275mm×145mm；receiver: 207mm×101mm×45mm |
weight | transmitter：2.5kg；receiver：540g；total：3.3 kg |
package | LWH 400mm×245mm×335mm |
-
