Voltage Divider FRC
FRC series voltage divider (Kilovoltmeter) is a universal high voltage measuring instruments which can be used to test power frequency AC high voltage and DC high voltage for electric power systems, electrical appliance, electronic equipment manufacturing sector. It includes high voltage testing part & low-voltage measuring instruments. The low-voltage & high voltage part can work separately. It is safe and reliable. It is the upgrading products of static high voltage meter, packed with aluminum alloy case for easy carrying.
Datasheet
Video
Contact Us1. The voltage divider uses high-precision resistors, capacitor assemblies, with special process potting and dry sealing, and it has no oil leakage problems.
2. With high input impedance, low test current and low power consumption, the product is small and light, stable in performance and high in measurement accuracy.
3. The voltage divider, multimeter and special cable are all placed in an aluminum alloy box, which is safe, reliable, easy to carry and transport.
4. The DC average value, AC peak value, true RMS value, peak value and other voltage values can be read directly on the multimeter.
5. The organic composite insulating shell is used above 150KV, which increases the surface creepage distance, greatly reduces the height of the product, and is more convenient to carry.
Type | FRC-50 | FRC-100 | FRC-200 | FRC-300 | |
Range （kV） | AC | 50 | 100 | 200 | 300 |
DC | 70 | 140 | 280 | 400 | |
Accuracy | AC | 1.5% | 1.5% | 1.5% | 1.5% |
DC | 1.0% | 1.0% | 1.0% | 1.0% | |
Impedance | R（MΩ） | 200 | 400 | 800 | 1200 |
Capacitance | C(PF) | / | 200 | 100 | 75 |
Size（mm） | Divider | Ф76×450 | Ф76×700 | Ф76×1300 | Ф76×1700 |
Alloy Case | 590x270x260 | 220×220×750 | 220×220×1400 | 220×220×1800 | |
Weight（kg） | / | 5 | 10 | 18 | 25 |
The use of environmental conditions allowed:
Temperature：0-40℃
Relative humidity：<85%

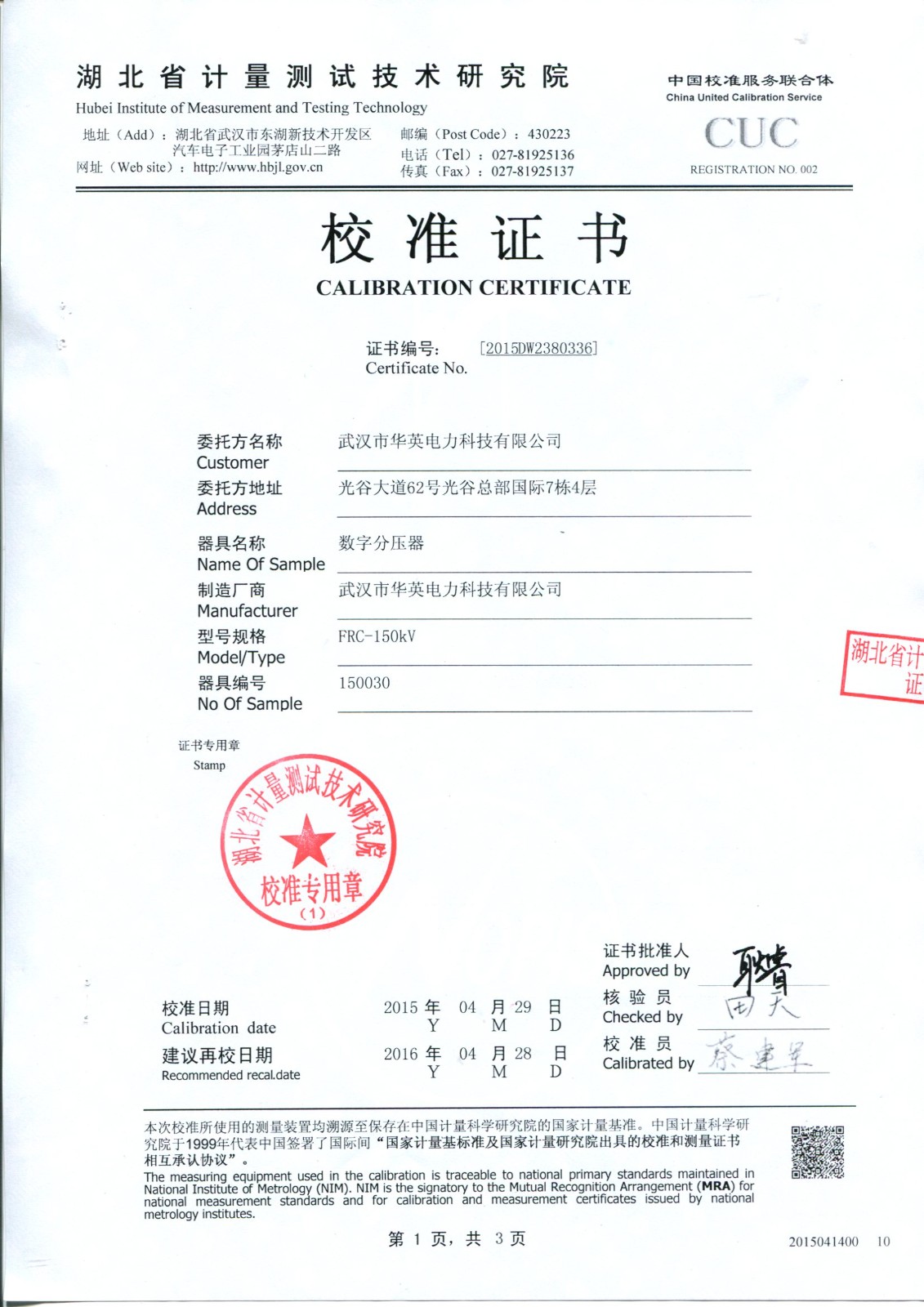

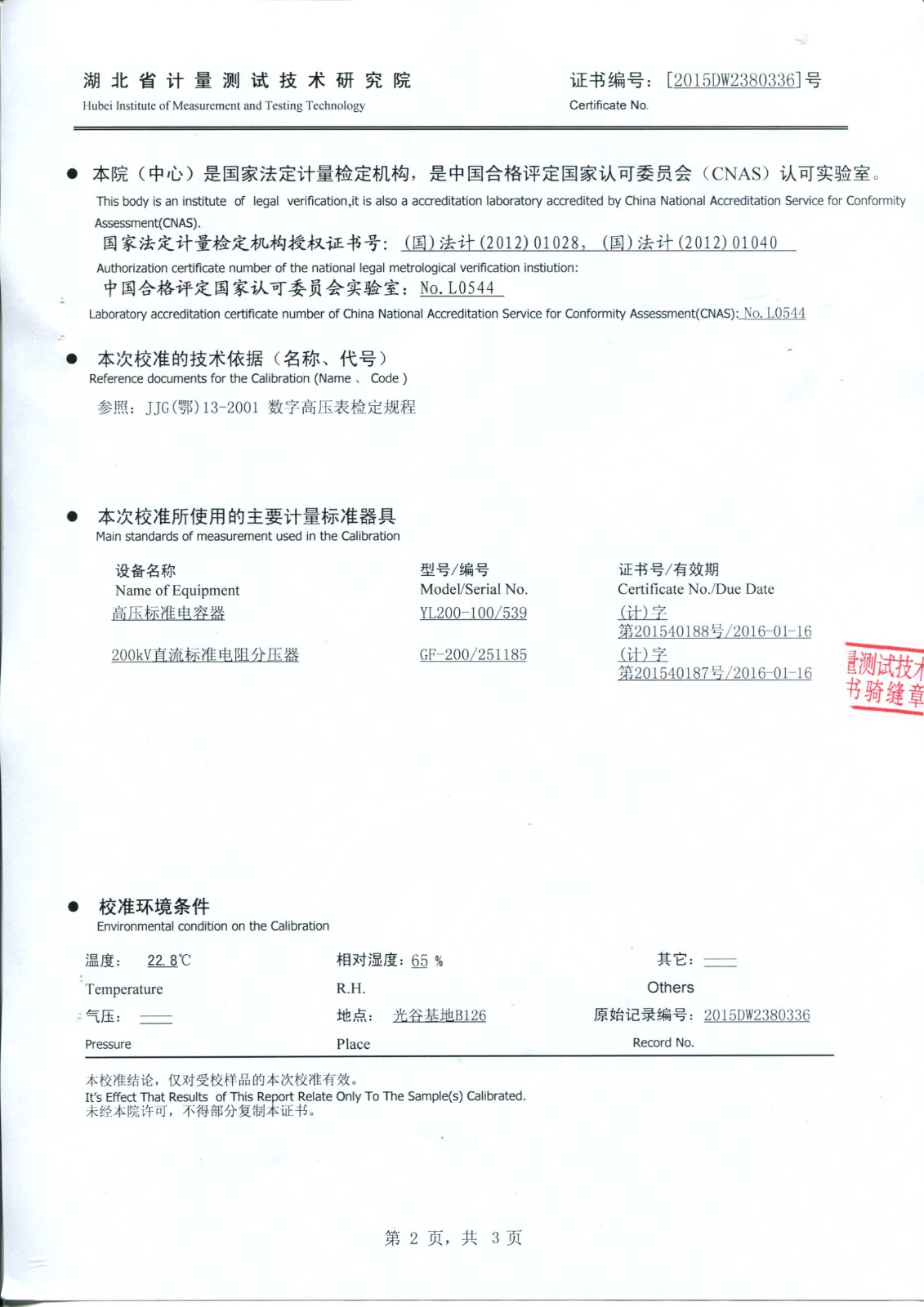

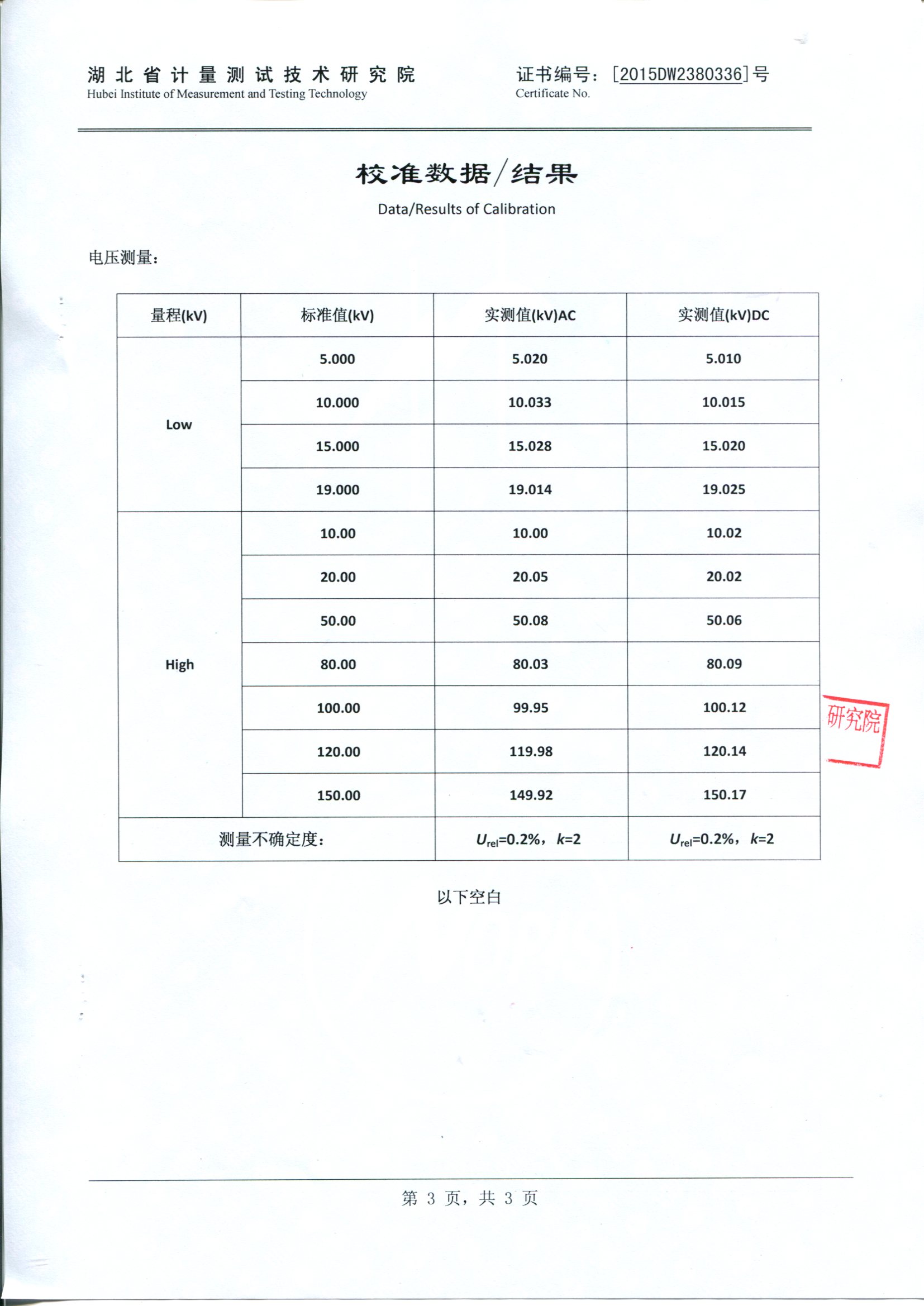

Calibration certificate of Voltage Divider FRC issued by Hubei Institute of Measurement and Testing Technology
-
