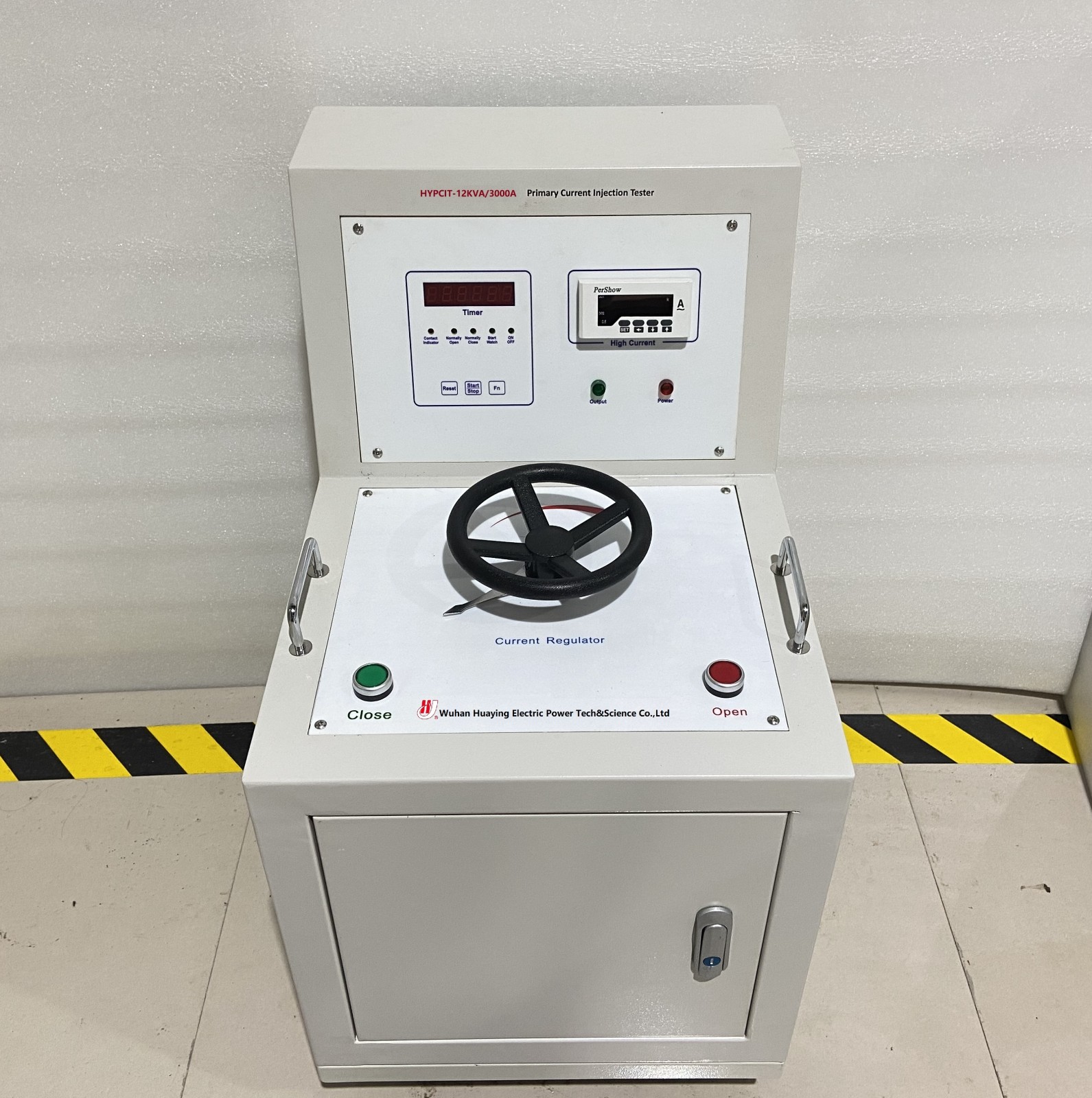

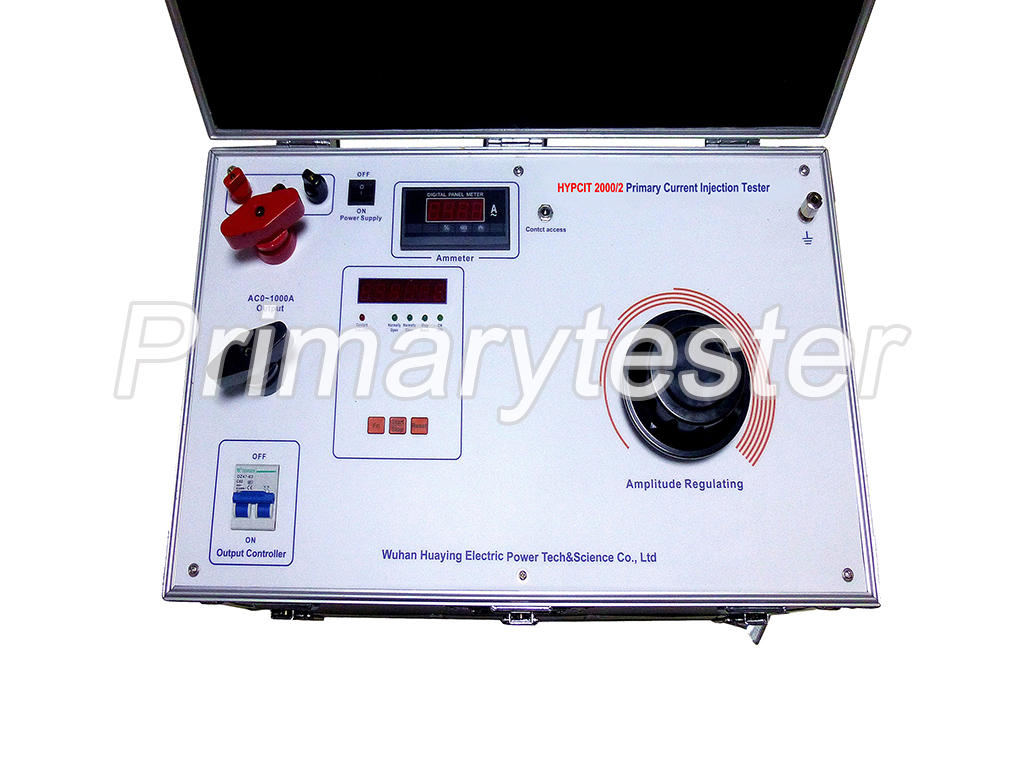

Primary Current Injection Tester HYPCIT
HYPCIT series primary current injection tester is applied in power system for circuit breaker test, protection system test and current transformer test. The current injection tester generates a high current from power supply to simulate the rated current or fault current in the primary circuit of power equipment.
Datasheet
Video
Contact Us1) The high current output is injected into main circuit of the running line to simulate the fault current, and then the protection system can be tested whether it will be operated according to the design.
2) The high current output is injected into the primary side of the current transformer, and then the induced current is tested from the secondary side by an error measuring instrument to detect the current transformer ratio difference and phase shift.
3) High current output is injected to the main circuit of circuit breaker to simulate the rated current in primary. Then check the stability of circuit breaker according to the temperature rise procedure.
4) It is considered as a AC high current source in power equipment or cable test.
1. Power supply: AC220V or AC 400V, 45Hz~65Hz.
The power supply voltage depends on the power output capacity. Detail information is as table 1.
2. Typical output current: 500A or 1000A or 2000A
Typical output capacity: 3KVA or 5KVA or10KVA or15KVA
It can be customized according to your requirements from above specs.
3. Impendence voltage: 8%
4. Idle current: 6%
5. Current distortion <5%

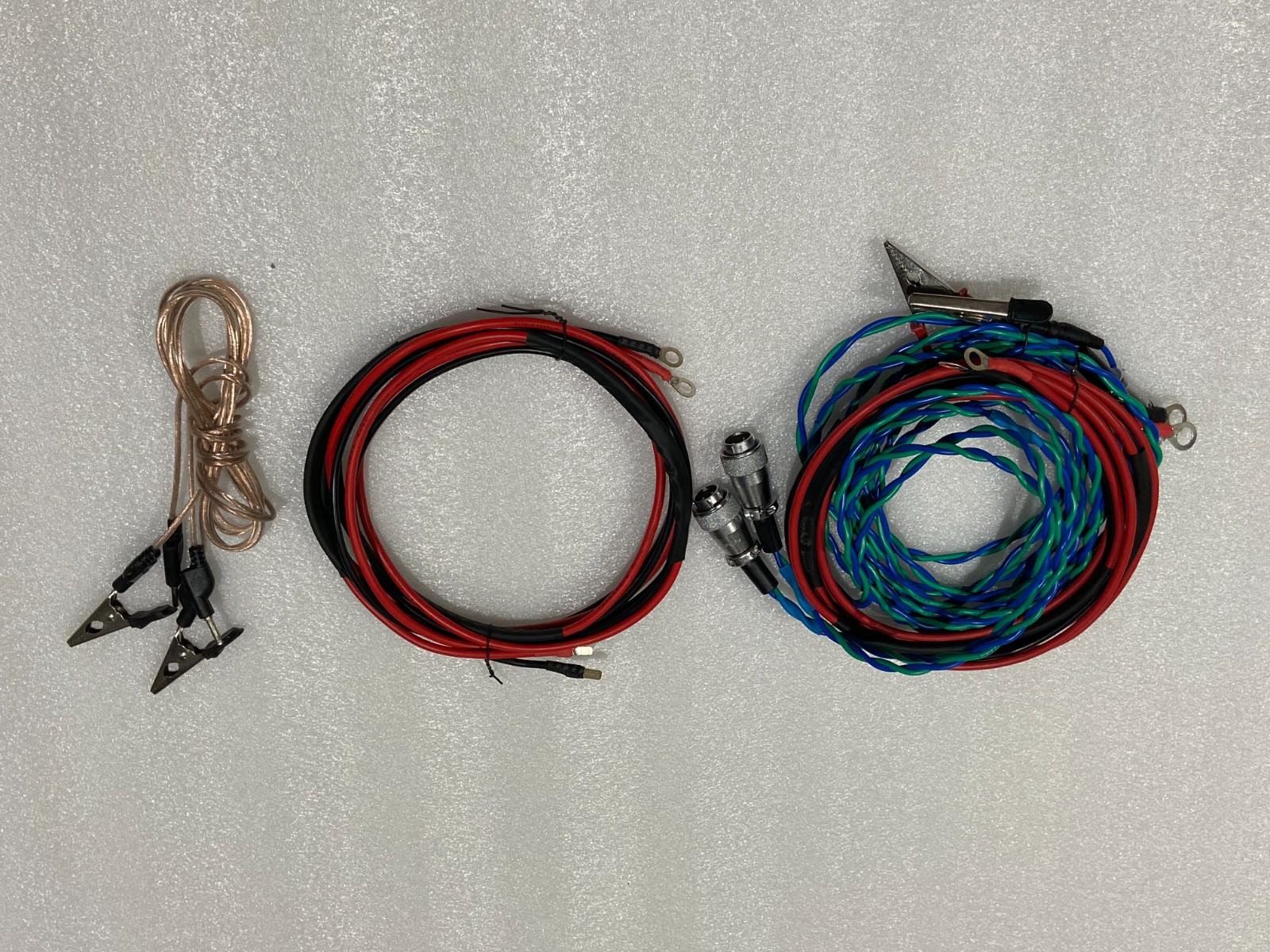

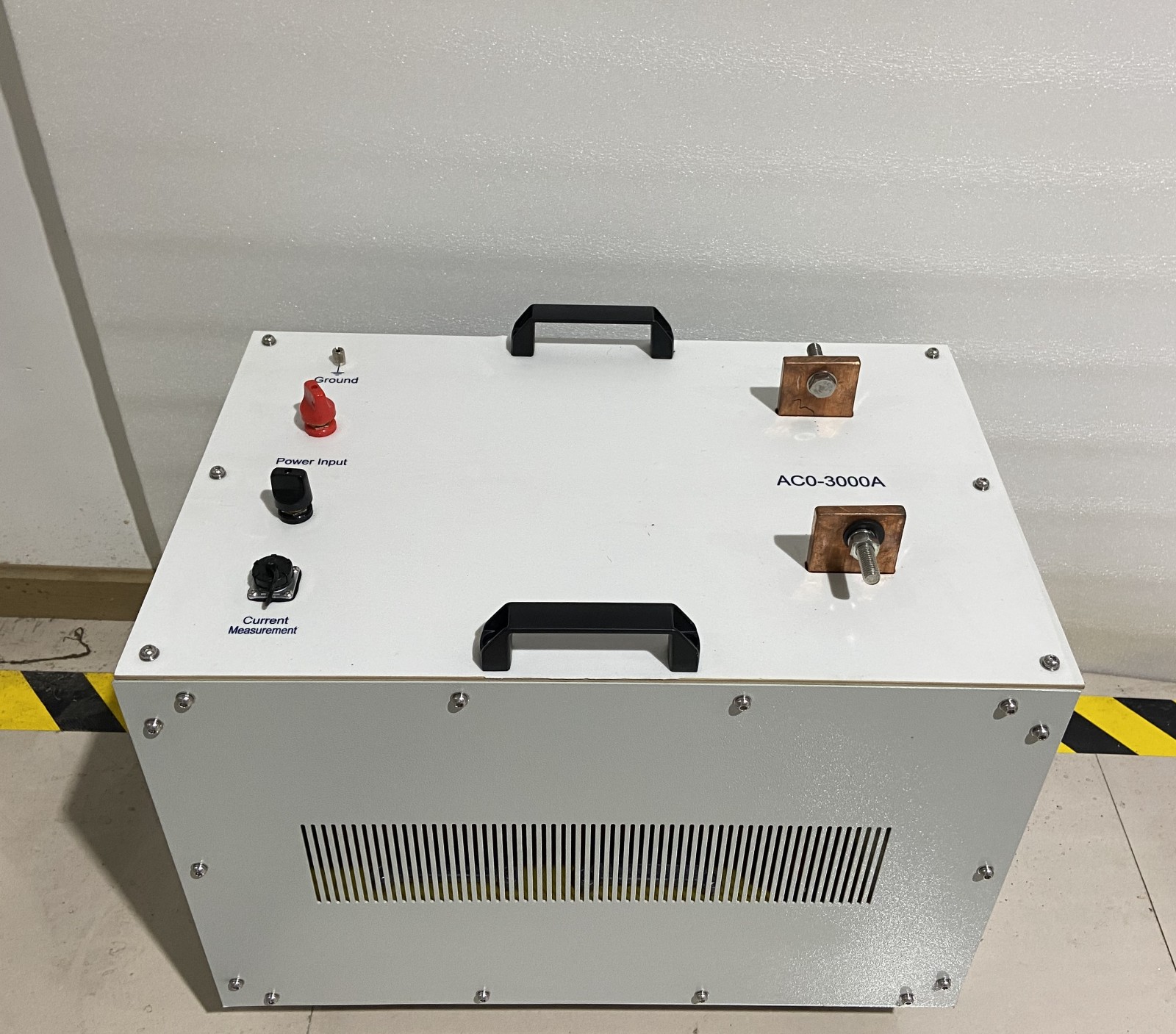

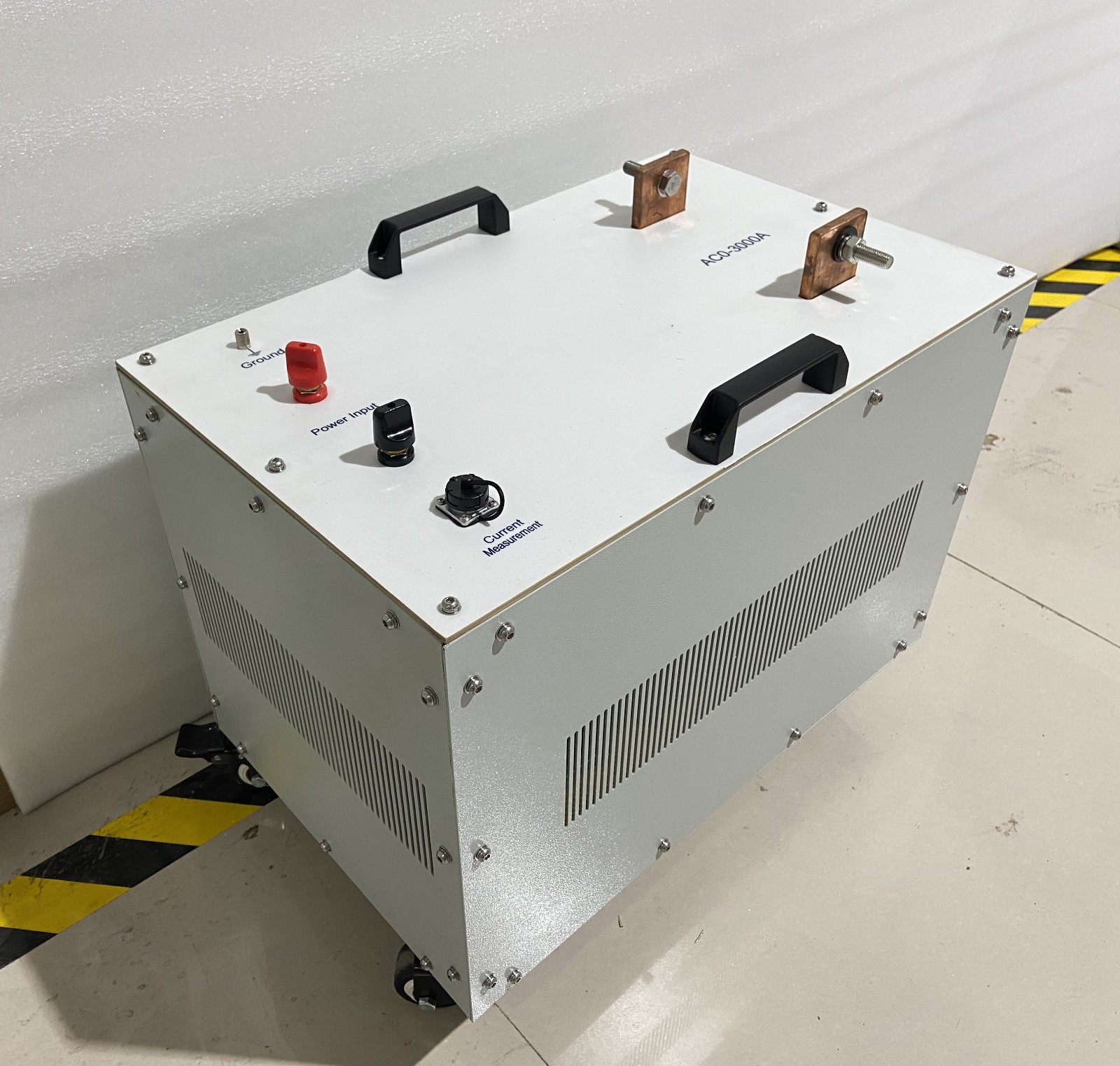

6. Current is measured from the secondary of current transformer which is installed in the internal of the current booster.
The display unit is 4 and 1/2 digitals current meter. Maximum measurement error 0.5%RDG+5D.
7. Timer indication of test running is an optional configuration. The timer could be customized according to the requirement of customer from the follow list:
1)4 digital timer from 0~9999s / 0~999.9s /0~99.99s, accuracy 0.5%RDG+5D
2)5 digital timer from 0~99999s / 0~9999.9s /0~999.99s, accuracy 0.2%RDG+2D
3)6 digital timer from 0~999999s / 0~99999.9s /0~9999.99s, accuracy 0.1%RDG+1D
8. Work temperature: 0~40℃ Humidity: <90%
Table 1 Detail configurations for different models of current injection tester
Model | Output Current(A) | Capacity(KVA) | Output Voltage(V) |
5/500 | 500 | 5 | 10 |
5/1000 | 1000 | 5 | 5 |
10/1000 | 1000 | 10 | 10 |
5/2000 | 2000 | 5 | 2.5 |
10/2000 | 2000 | 10 | 5 |
-
