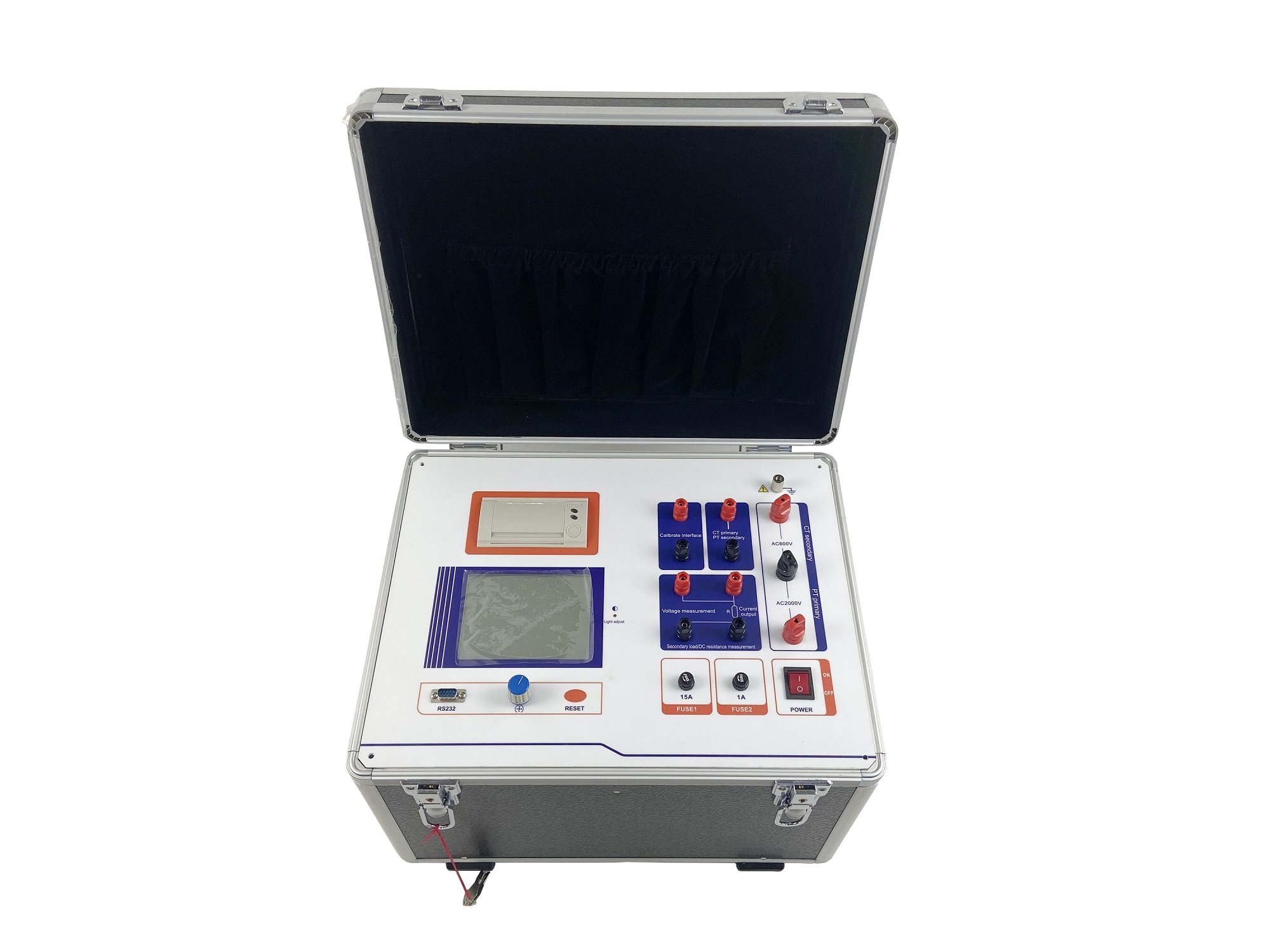

◎ Functions: The tester can finish: CT volt-ampere curve test, CT Ratio and phase test, PT volt-ampere curve test, PT ratio and phase test.

◎ It is safe and convenient to operate with fully computerized device, built-in imported high-performance CPU and high reliability. Just set the test value according to the interface prompt, then the test is performed automatically without manual contact, which prevent testers away from high-voltage circuits to ensure the safety.

◎Large output capacity: The maximum output voltage of the volt-ampere characteristic test is up to 2000V, the maximum output current is 5A, and the maximum output power is 2000VA.

◎ Large-screen English character graphic interface: After the test is completed, the volt-ampere characteristic curve will be displayed directly, which is clear, beautiful and convenient. Curves and test results can be printed anytime by built-in printer.

◎ Adapt rotating mouth: easy operation and durable use.

◎ Flash Ram inside: prevent data losing from power off.
