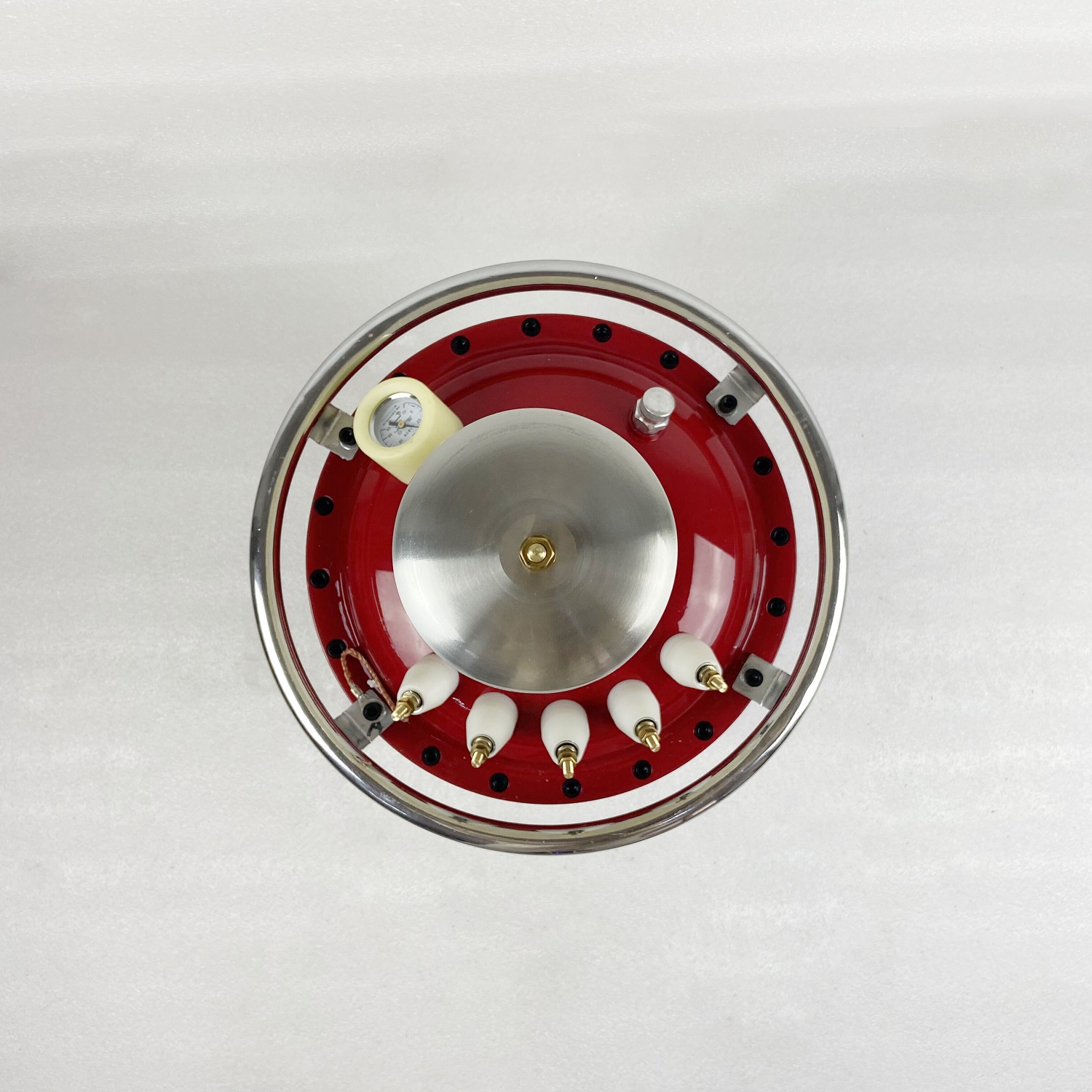

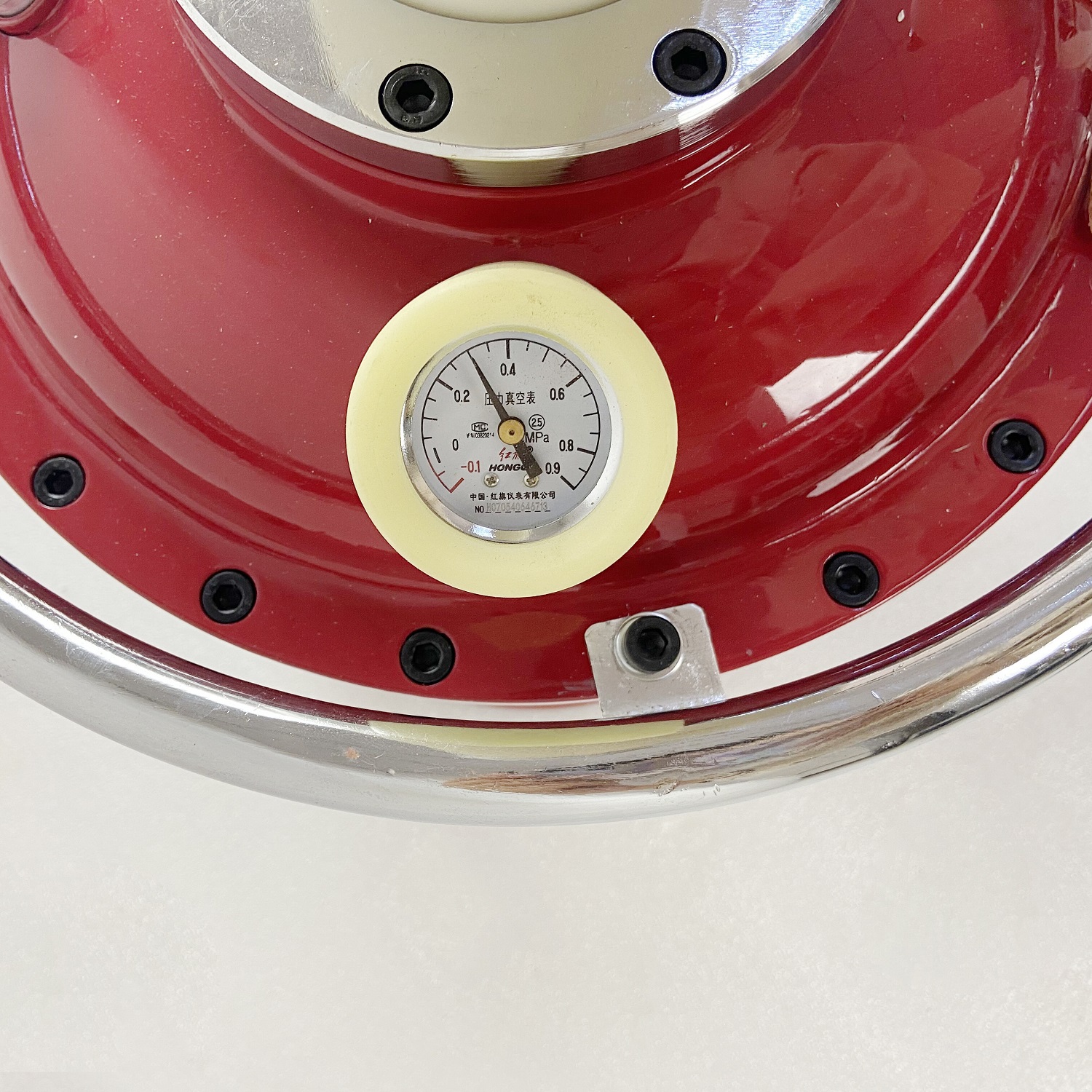

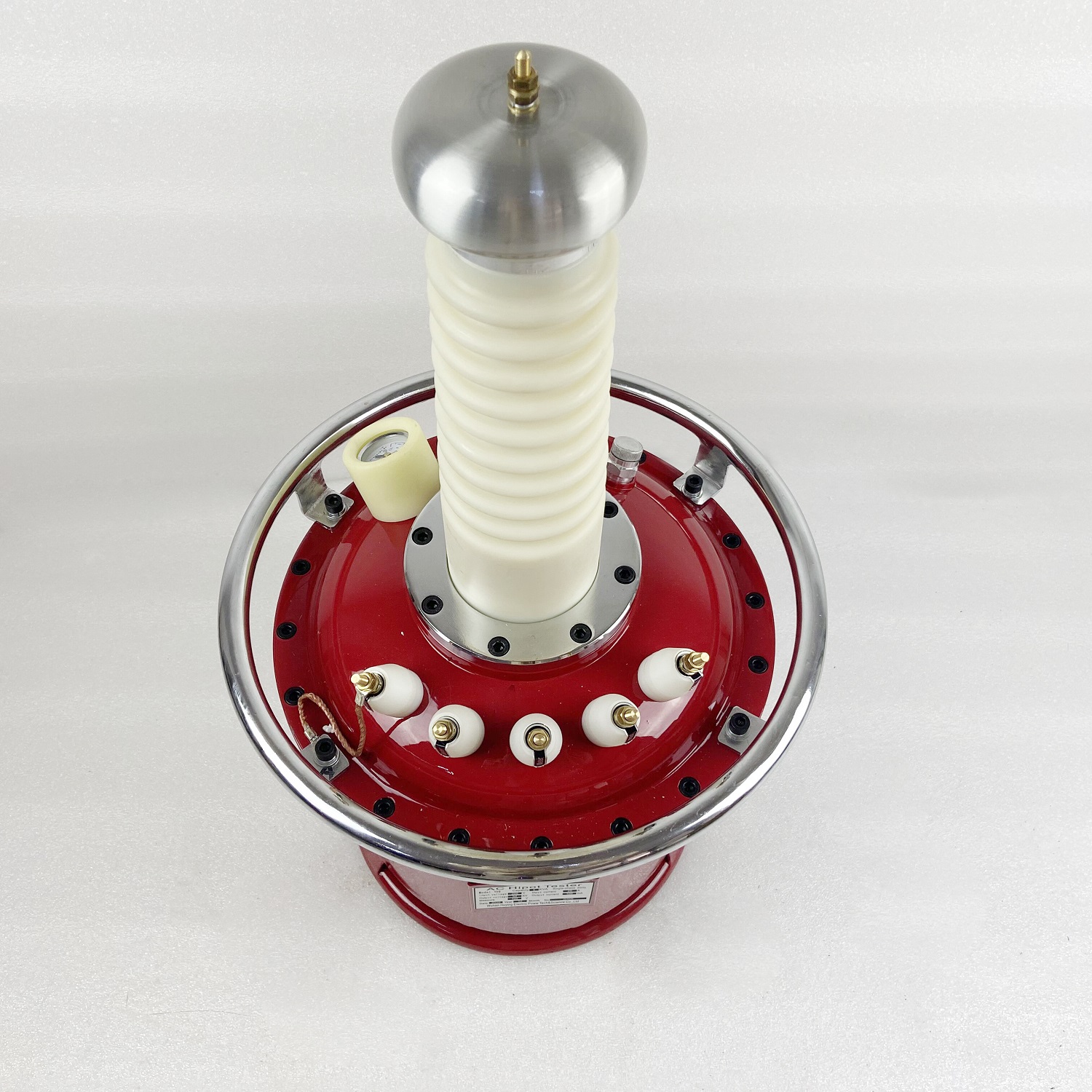

SF6 Test Transformer YDQ Series

After years of hard work, our company has successfully researched inflatable light-duty test transformers. SF6 Test Transformer is widely used for testing the insulating function of all kinds of HV equipments. Due to the adoption of new production processes, the technical performance of the products has been greatly improved. The tester is especially suitable for use in field work and frequently moving working conditions.

Features

1. This product is small in volume, light in weight.

2. Clean, no grease, maintenance free.

3. It won’t be affected by bad weather,and it also can test when it is moving.

4. Dielectric Strength is better than oil-immersed test transformer.

Technical Specification

Other detailed specifications can be customized if it's not mentioned in the below sheet.

Model	Capacity（KVA）	High Frequency Voltage Output Voltage （KV）	High Frequency Voltage Output Current (mA)	Low Frequency Voltage Input		Ratio	Temperature (℃)raised/ 30 minute
Model	Capacity（KVA）	High Frequency Voltage Output Voltage （KV）	High Frequency Voltage Output Current (mA)	V	A	Ratio
YDJ-1.5	1.5	50	30	200	7.5	500	10
YDJ -3	3	50	60	200	15	500	10
YDJ -5	5	50	100	200	25	500	10
YDJ -10	10	50	200	220/380	50/26	500	10
YDJ -20	20	50	400	380	53	500	10
YDJ -30	30	50	600	380	79	500	10
YDJ -40	40	50	800	380	105	500	10
YDJ -50	50	50	1000	380	132	500	10
YDJ -5	5	100	50	200	25	1000	10
YDJ -10	10	100	100	200/380	50/26	1000	10
YDJ -20	20	100	200	380	53	1000	10
YDJ -30	30	100	300	380	79	1000	10
YDJ-40	40	10	400	380	105	1000	10
YDJ-50	50	100	500	380	132	1000	10
YDJ-100	100	100	100	500	263	1000	10
YDJ-150	150	100	1500	500	300	1000	10
YDJ-200	200	100	2000	500	400	1000	10
YDJ-250	250	100	2500	380	500	1000	10
YDJ-20	20	150	133	380	53	1500	10
YDJ-30	30	150	200	380	79	1500	10
YDJ-50	50	150	333	380	132	1500	10
YDJ-100	100	150	666	500	263	1500	10
YDJ-150	150	150	1000	500	300	1500	10
YDJ-200	200	150	1333	500	400	1500	10
YDJ-250	250	150	1666	380	500	1500	10
YDJ-30	30	200	150	380	79	2000	10
YDJ-50	50	200	250	380	132	2000	10
YDJ-100	100	200	500	380	263	2000	10
YDJ-150	150	200	750	500	300	2000	10
YDJ-200	200	200	1000	500	400	2000	10
YDJ-250	250	200	1250	500	500	2500	10
YDJ-30	30	250	120	380	79	2500	10
YDJ-50	50	250	200	380	132	2500	10
YDJ-100	100	250	400	380	263	2500	10
YDJ-150	150	250	600	500	300	2500	10
YDJ-200	200	250	800	500	400	2500	10
YDJ-250	250	250	1000	500	500	2500	10

Product Certificates

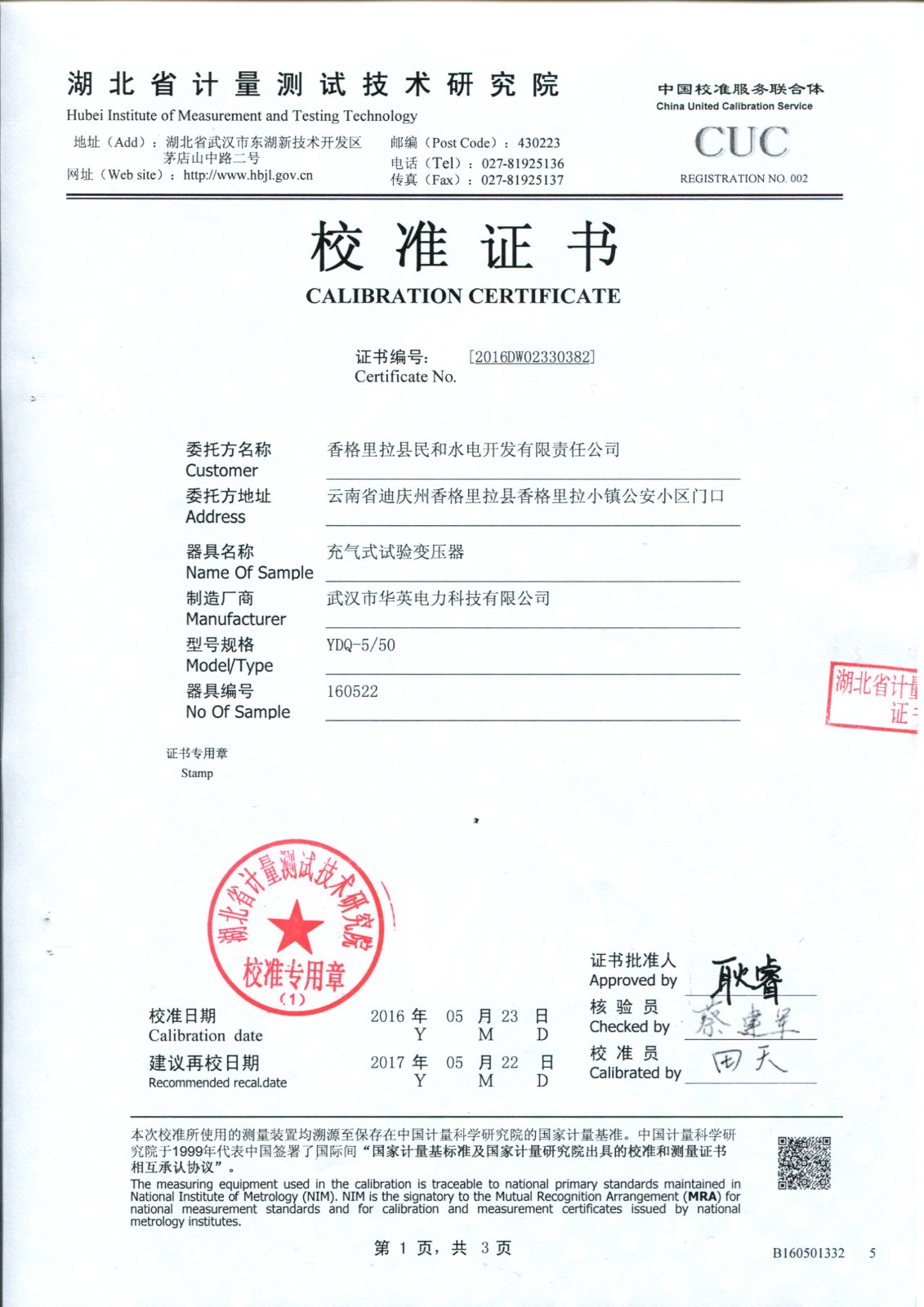

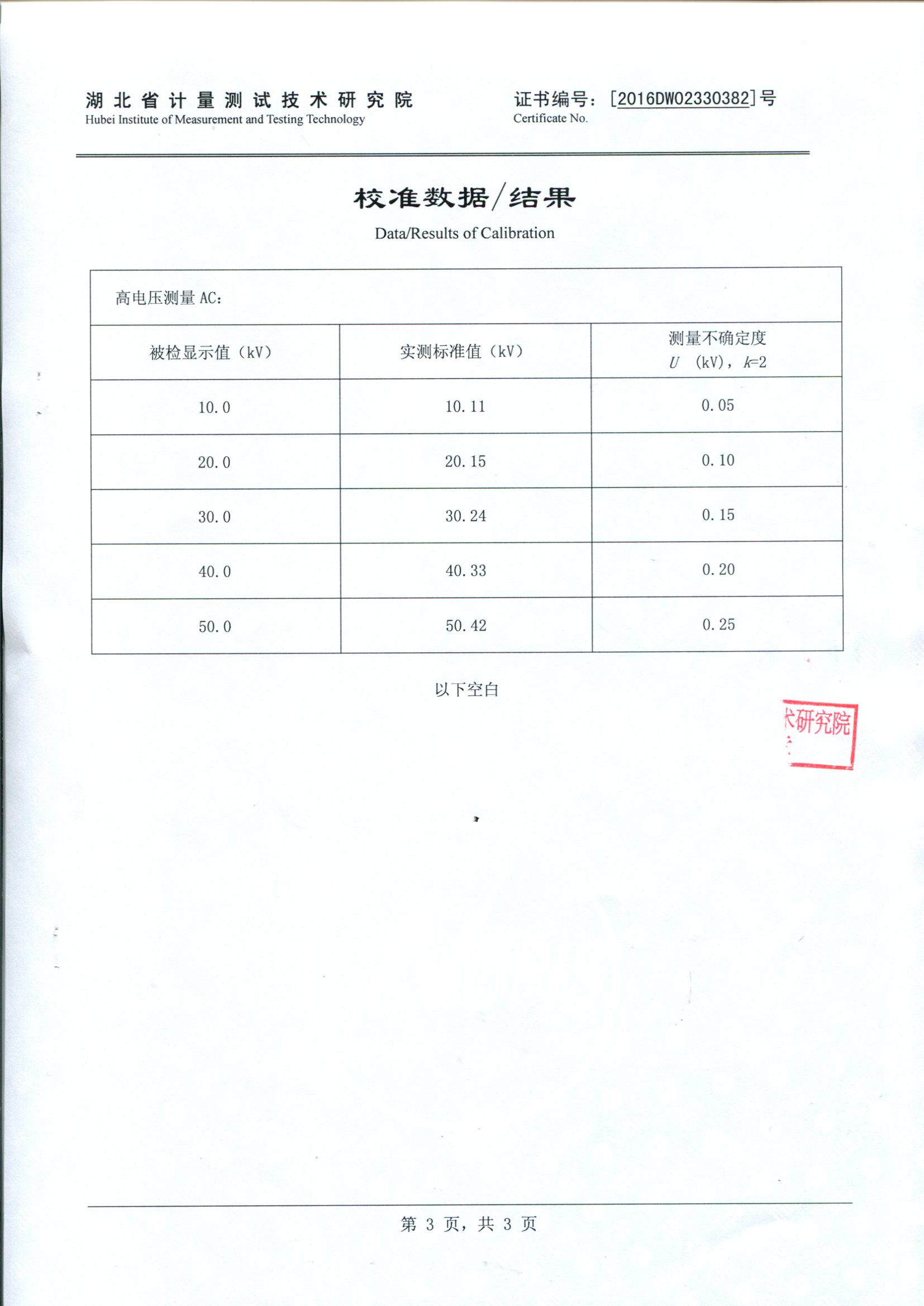

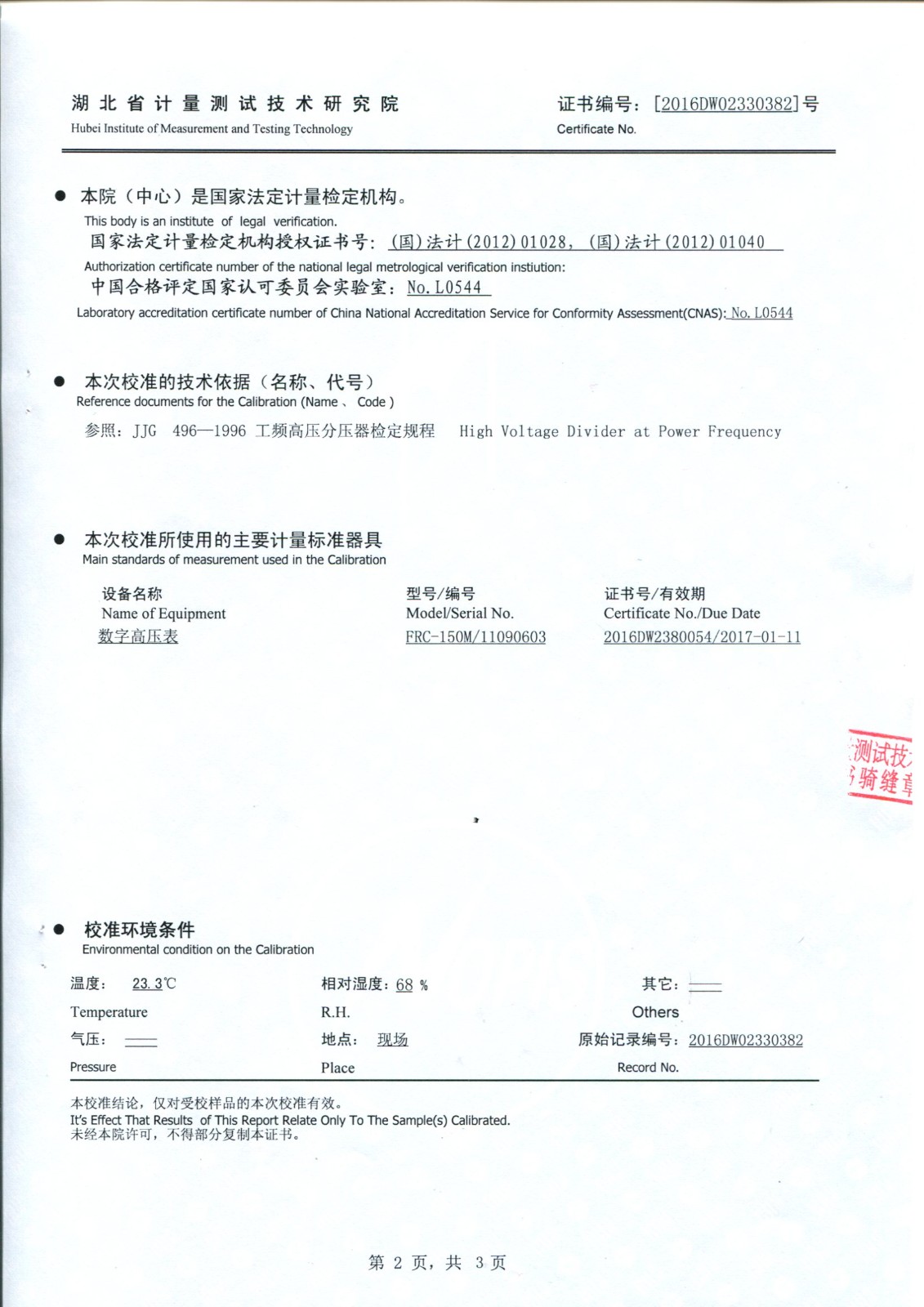

Calibration certificate of SF6 Test Transformer YDQ-5/50 issued by Hubei Institute of Measurement and Testing Technology

Service commitment

Pre-sale service commitments

Professional consulting services

Detailed information about products

Reasonable price

Welcome customer visit
Sale service commitments

Signing contracts and technical agreements

Ensure Execution of Contract and Agreement

Active communication

Complete after-sales service
Sale service commitments

Professional after-sale service team

One year free warranty, life-long maintenance

Help troubleshooting within 24 hours

Professional R & D team
