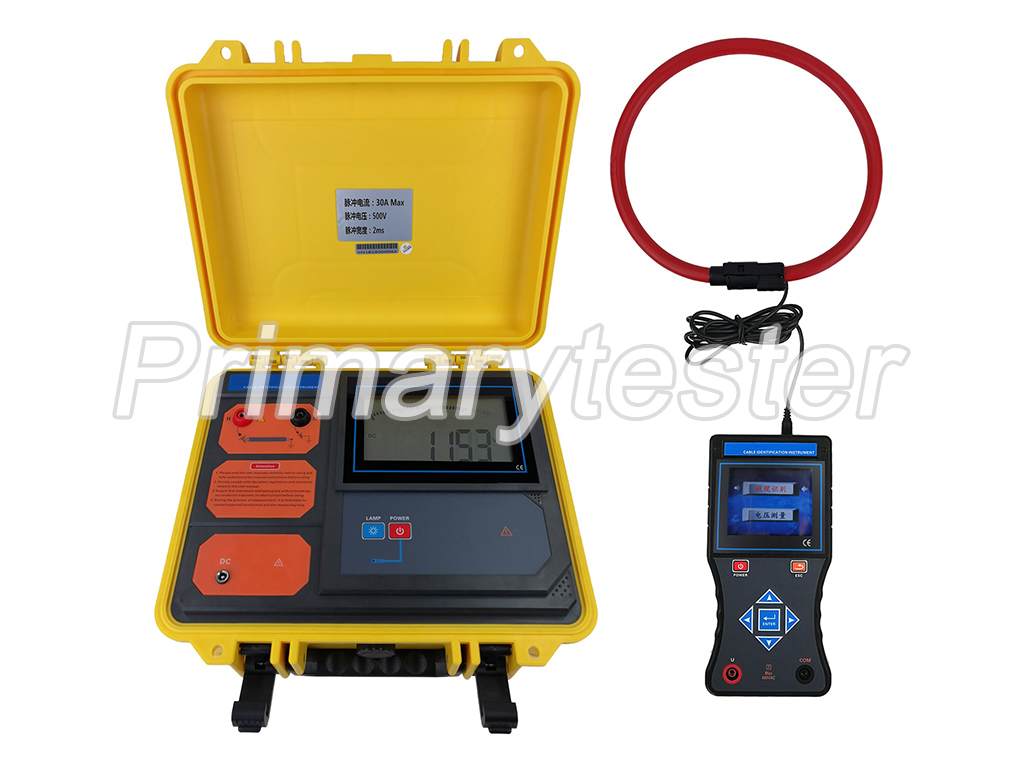

Power-off Cable Identifier
Function: Cable identification, voltage test. Power-off cable identifier is used to identify a particular cable during power cable laying, transfer, maintenance, and fault location, featured with accurate, fast, simple operation and wide application, light weight, compact structure, and strong anti-interference ability.
Datasheet
Video
Contact Us1. Color screen, dynamic indication
2. Electronic dial, exquisite and intuitive
3. Military Toolbox Design, Pressure Resistance 200 kg
5. Pulse current：30A Max
6. Pulse voltage：500V
7. Pulse width：2ms
8. Voltage range：0.00V～600V
9. Light weight, easy operation and safe, result is intuitive, no need any experience.
function | Cable identification, voltage test |
Power | Rechargeable Li-battery：transmitter: 11.1V；receiver 7.4V，working 8h |
Display | Rest voltage display on LCD ；receiver 3.5inch, Electronic dial, dynamic grating |
Pulse volt | 500V |
Pulse Am | 30A Max（Depending on the resistance of the loop） |
Pulse Fre | 1time/sec |
Pulse w | Width: 2ms |
Range v | AC 0.00V～600V(50Hz/60Hz) |
resolution | AC 0.01V |
Coil ID | Flexible coil ID：φ200mm |
Length | Crocodile clamp test line 3 meters; test line 1 meter |
Signal | Transmitting signal: dynamic display of bar chart |
cable identification: clockwise dynamic indication of green grating | |
Gain | 6class, press left / right to adjust Gain, |
Size | Transmitter：320mm×275mm×145mm；receiver：207mm×101mm×45mm |
weight | Transmitter：2.5kg；receiver：540g(with flexible coil)；total：3.3 kg |
size | LWH: 400mm×245mm×335mm |
Charger | Transmitter： 12.6V；receiver： 9V |
Anti-volt | Transmitter AC 3700V/rms；receiver： AC 2000V/rms（outer two points） |
configuration | Transmitter 1pcs；receiver 1pcs；flexible 1pcs；bag 1pcs；Crocodile clamp test line 2pcs |
Testing line 2pcs；charger 2pcs；Li-battery 2pcs(within meters)；manual operation 1 pcs |
-
